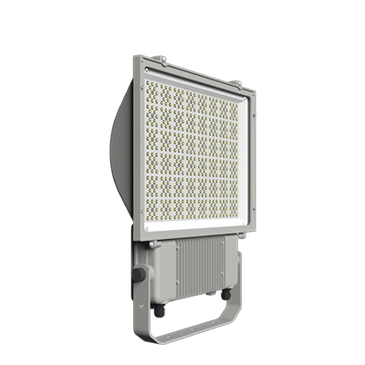

High-Power Heavy-Duty LED Stadium & High Mast Floodlight
High-intensity commercial luminaire engineered for football stadiums, sports complexes, high-mast transit terminals, logistics yards, and commercial perimeters. Combines an aerodynamic curved-dome ADC12 die-cast aluminum housing with an isolated lower driver compartment, precision 3030 optical lens matrix delivering up to 130 lm/W, a heavy-duty 0–270° adjustable bracket, and IP65/IK08 weatherproofing.
Engineering & Photometric Advantages
Precision 3030 optical lens matrix, aerodynamic curved-dome chassis, and isolated driver compartment.

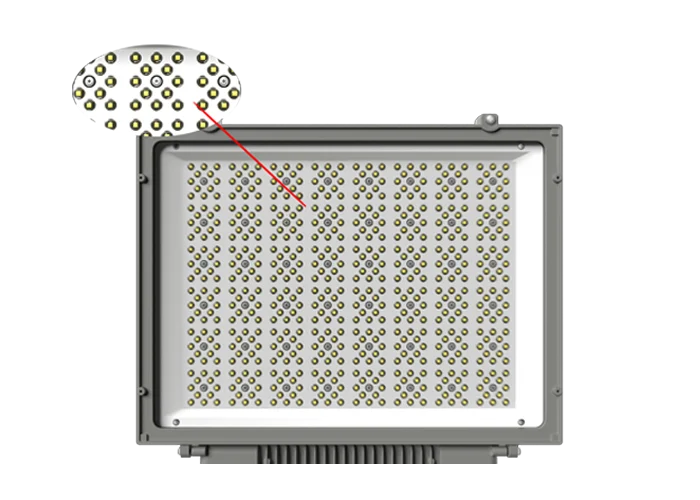

3030 High-Lumen Optical Lens Matrix (≥120–130 lm/W)
Utilizes dense 3030 LED arrays paired with precision optical lens plates (30°, 60°, 90° and asymmetric sports distributions). Delivers uniform ground illuminance and sharp beam cutoff, direct replacement for legacy 500W–1000W metal halide stadium luminaires.
- High color rendering index (CRI > 70 / 80 optional) for clear night vision and broadcast quality.
- Available from 3000K warm white to 6500K daylight color temperatures.
- Low optical decay ensuring consistent tournament-level lumen maintenance over years.

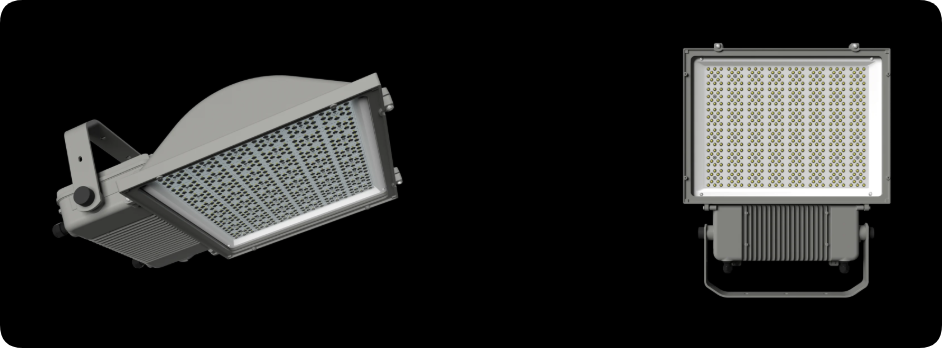

Aerodynamic Curved-Dome Housing & Die-Cast Frame
Features a streamlined curved upper dome that smoothly guides wind flow around the fixture, minimizing high-mast structural fatigue while maintaining superior mechanical rigidity.
- Heavy-duty ADC12 die-cast aluminum with multi-stage outdoor powder coating.
- Continuous silicone gasket ensuring watertight IP65 ingress protection against heavy rains.
- Supports SOSEN, Mean Well, Inventronics, and Philips 0-10V / DALI / PWM dimming.

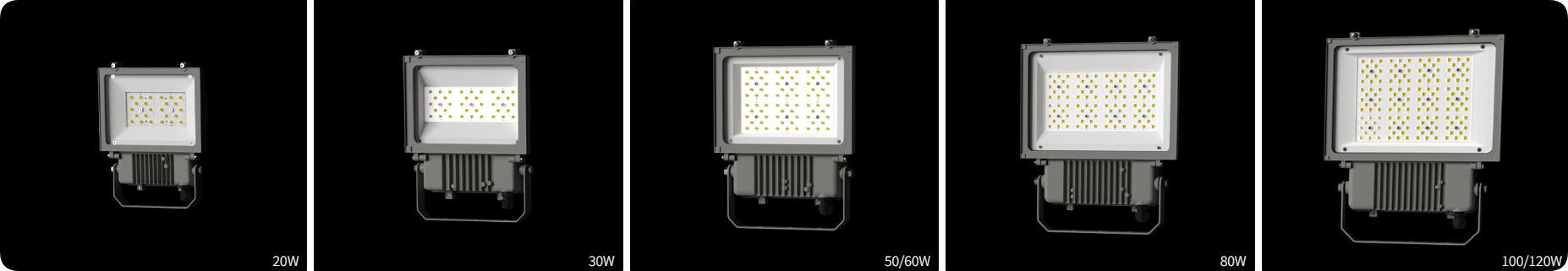

Scalable Low-to-Mid Power Chassis (20W to 120W)
The PE-2004-3030 series provides compact enclosure formats tailored for residential security, commercial storefronts, and perimeter lighting:
- Size 1–2 (20W / 30W): Compact luminaire for entryways, pathway markers, and residential boundary walls.
- Size 3 (50W / 60W): Mid-size chassis for commercial billboards, storefront facades, and parking access gates.
- Size 4–5 (80W / 100W / 120W): High-flux model for mid-height parking lots, loading bays, and industrial grounds.

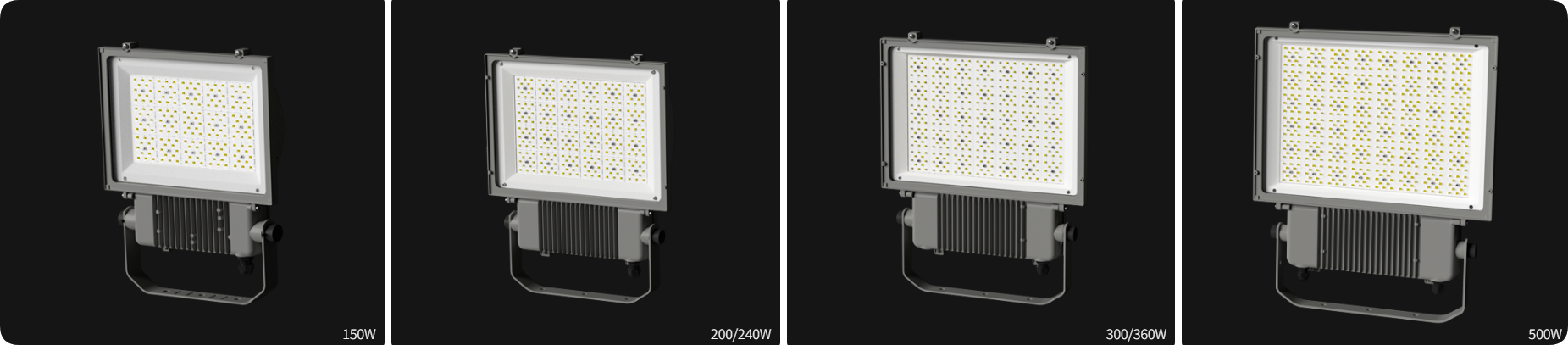

High-Power Arena & High-Mast Chassis (150W to 500W)
Engineered for sports facilities, football training fields, and industrial high-mast lighting towers requiring massive lumen output:
- Size 6–7 (150W / 200W / 240W): High-output configuration for community sports courts, logistics hubs, and warehouse high-bays.
- Size 8 (300W / 360W): Powerful luminaire for regional soccer pitches, municipal plazas, and open storage yards.
- Size 9 (500W): Heavy-duty workhorse delivering maximum foot-candles for athletic stadiums, container ports, and high-mast poles.

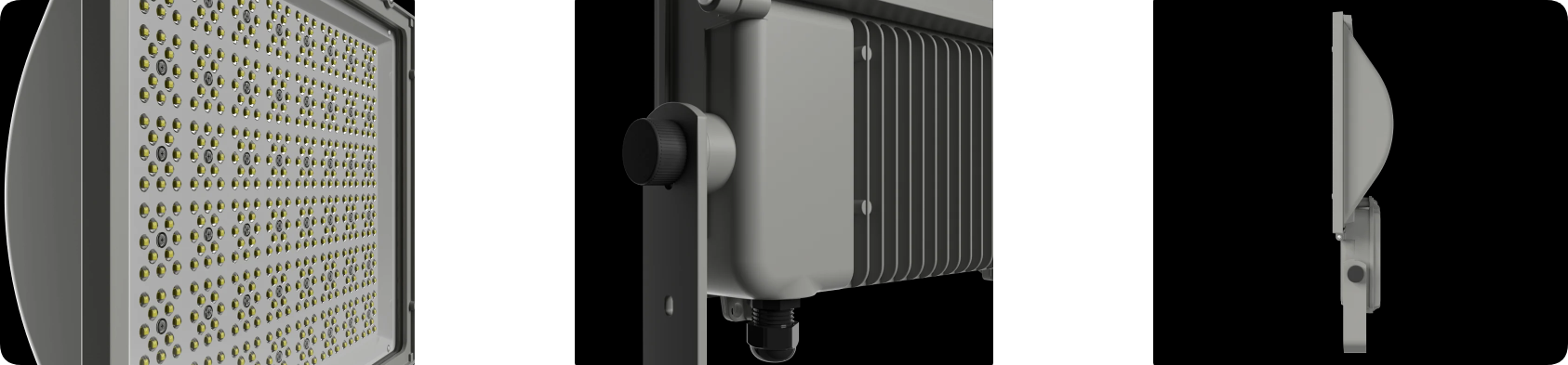

Convective Thermal Heatsink & Isolated Driver Box
The rear housing features dense vertical cooling ribs and a physically isolated lower electrical compartment, creating continuous convective airflow to rapidly dissipate heat and protect internal power drivers.
- Isolated lower chamber prevents driver heat from impacting LED junction temperatures.
- Built-in 10kV / 20kV surge protection device (SPD) safeguarding against high-voltage spikes.
- Operating temperature rating from -40°C to +50°C across extreme climatic conditions.
Heavy-Duty Hardware Details & Smart Controls
Equipped with robust side locking bolts and a sealed cable gland, allowing reliable electrical connection and fast maintenance access in the field.
- Optional NEMA / Zhaga photocell receptacle for automated dusk-to-dawn lighting.
- Integrated PIR / microwave motion sensor support for intelligent presence detection.
- Stainless steel external fasteners ensure long-term corrosion resistance.
0–270° Full-Range Multi-Surface Mounting
The heavy-duty steel U-bracket rotates smoothly across a complete 0° to 270° range, allowing unconstrained forward, downward, and upward architectural aiming across diverse structural mountings.
- Wall Mounting: Ideal for building perimeters, commercial facades, and loading docks.
- Ground Mounting: Perfect for architectural monuments, billboards, and landscape uplighting.
- Ceiling Mounting: Suitable for canopies, covered sports halls, and warehouse eaves.

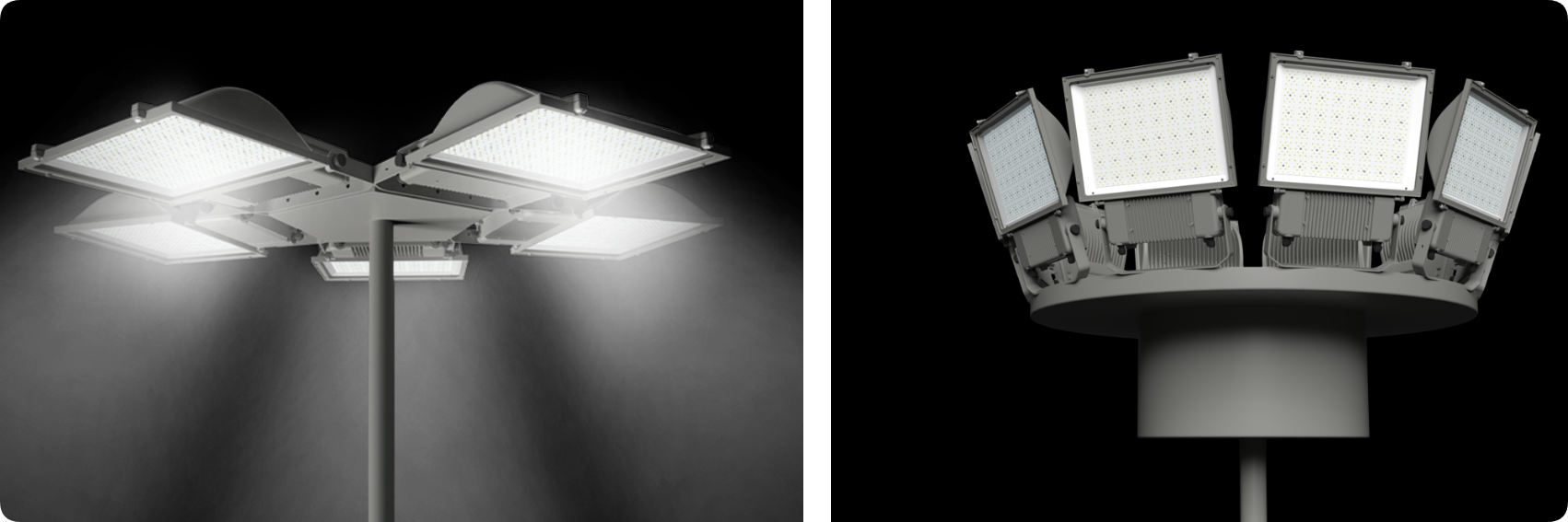

High-Mast Platform Cluster Integration
Engineered for multi-luminaire cluster mounting on standard 10m to 30m sports poles and high-mast crossarms, delivering high-density uniform field illuminance across municipal athletic grounds, parking complexes, and commercial plazas.
- Aerodynamic dome chassis minimizes wind drag on elevated high-mast towers.
- Rigid die-cast mounting interface eliminates optical aiming drift under heavy storms.
- Backed by a comprehensive 5-year commercial factory warranty.
Recommended High-Power Applications
Heavy-duty 3030 photometric configurations engineered for athletic stadiums, sports complexes, freight yards, and commercial perimeters.
Football Stadiums & Fields
High-power 300W–500W configurations delivering uniform, high-contrast lux for athletic fields and multi-sport facilities.
Ports & Freight Terminals
Corrosion-resistant IP65/IK08 die-cast chassis resisting heavy winds, marine salt air, and crane vibrations.
Parking Lots & Logistics
Wide optical distribution providing high-contrast, uniform ground lux across expansive cargo handling areas.
Commercial Facades & Signs
Precision bracket flexibility allowing uniform wash-lighting on outdoor billboards and architectural facades.
Need High-Power Stadium Dialux Simulations, IES Files, or Project Quotations?
Provide your area dimensions, mounting height, and target lux level. Our engineering team delivers full photometric simulations and pricing within 24 hours.
