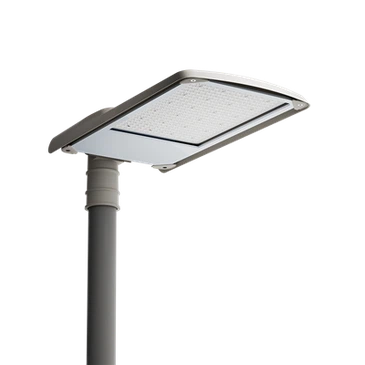

200 Watt Commercial LED Street Light
High-power AC roadway luminaire designed for multi-lane expressways, municipal arterials, and high-mast intersections. Featuring ADC12 heavy die-cast aluminum chassis, Lumileds/Hongli 3030 optical engines (170 lm/W), IP66 waterproof rating, and a ±15° multi-angle adjustable mounting tenon.
Engineering & Photometric Advantages
Precision manufactured for highway safety, low thermal resistance, and long-term municipal performance.

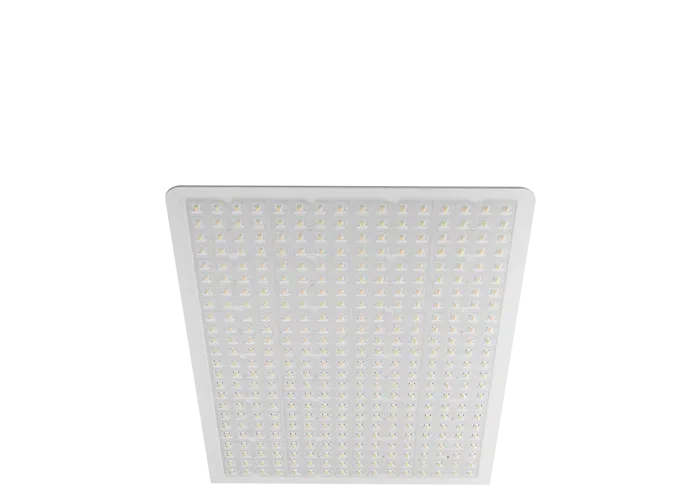

High-Lumen 3030 LED Optical Engine (170 lm/W)
Equipped with high-flux 3030 LED packages paired with UV-stabilized PC lens arrays, delivering 170 lm/W optical efficacy while maintaining low glare and uniform roadway distribution.
- Type I, II, III, and IV symmetrical/asymmetrical road beam profiles.
- Available in 2700K to 6500K CCT with Ra > 70 color rendering.
- Long operational lifespan with minimal photometric lumen depreciation.

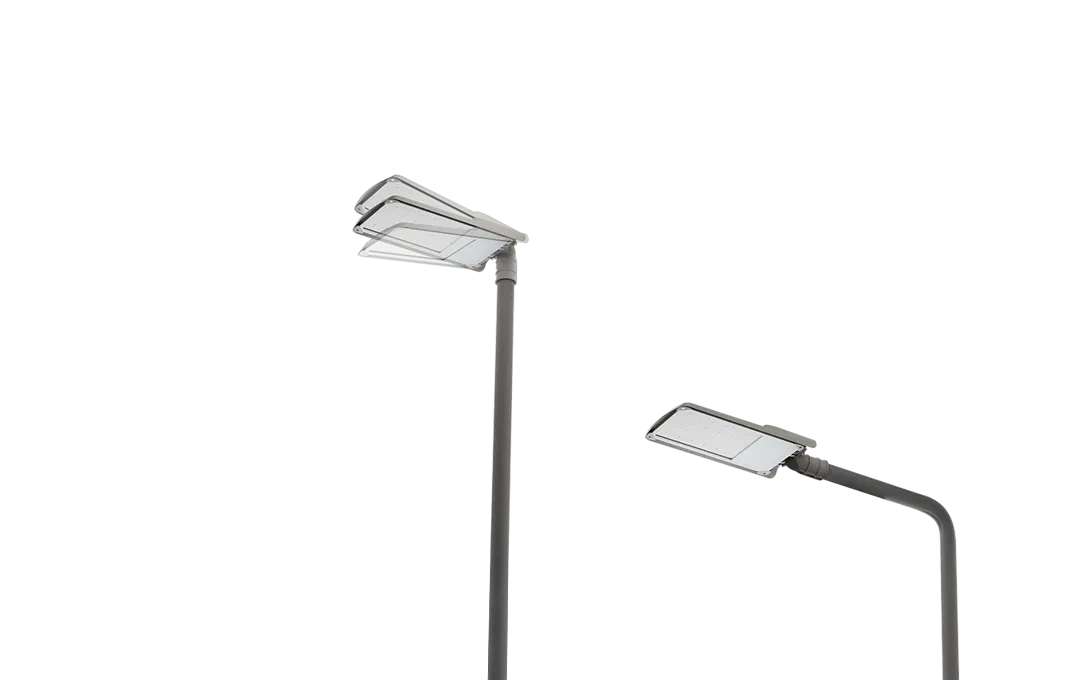

±15° Adjustable Spigot for Pole Mounting
The integrated die-cast tenon spigot features mechanical angle calibration from -15° to +15°, allowing lighting engineers to adjust elevation angles for different lane widths.
- Supports standard Φ62mm horizontal cantilever arm mounting.
- Supports vertical post-top tenon installations without adapter kits.
- Stainless steel locking fasteners for high wind load stability.

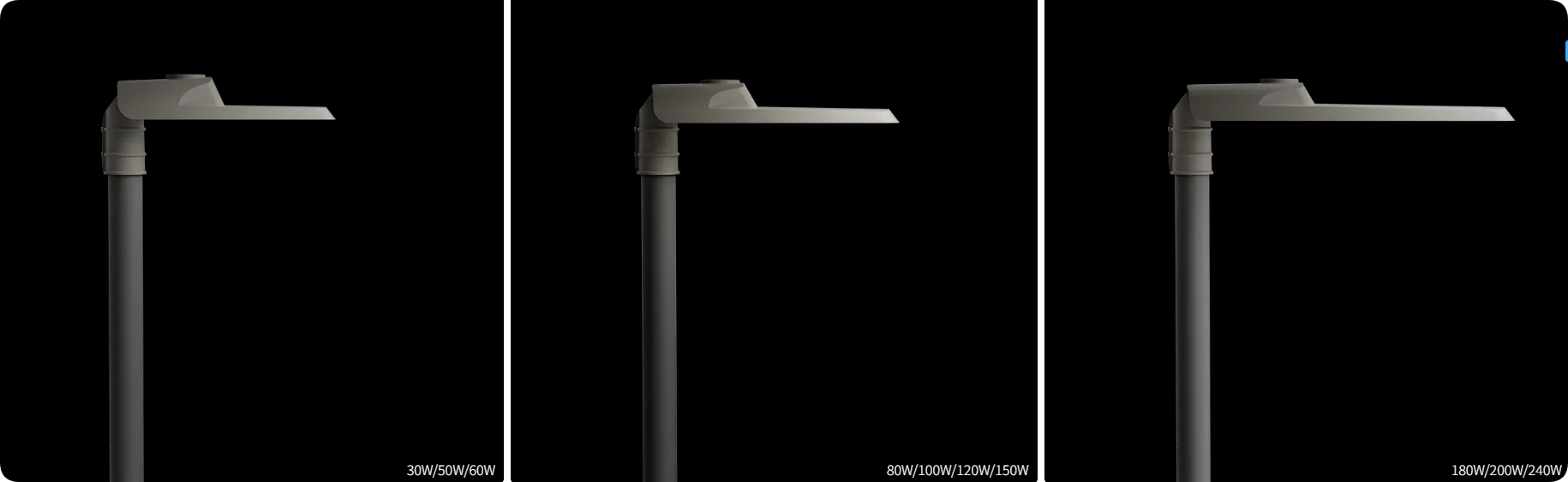

Three Scalable Chassis Sizes (30W to 240W)
The PE-6068 series features three aerodynamic ADC12 die-cast enclosure sizes, matching different pole heights and project road hierarchies:
- Small Chassis (30W / 50W): 470 × 180 × 103 mm for residential & pathways.
- Medium Chassis (80W–150W): 521 × 227 × 105 mm for urban arterials.
- Large Chassis (180W–240W): 618 × 290 × 107 mm for multi-lane expressways.

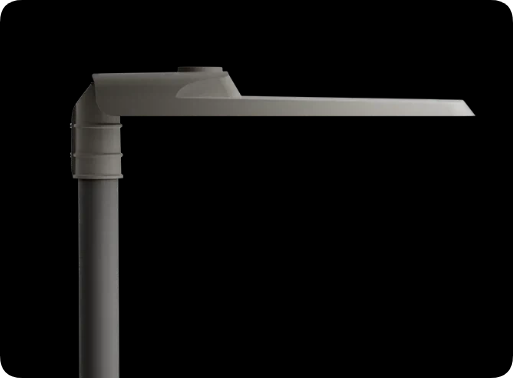

Smart Photocell & Rugged Housing Architecture
Engineered for all-weather municipal longevity with anti-corrosion powder coating, optional top-mounted NEMA/Zhaga photocell socket, and streamlined aerodynamic contours.
- Built-in 10kV / 20kV surge protection device (SPD) against grid transient spikes.
- 0-10V / PWM / DALI dimming options for smart municipal lighting control.
- IP66 watertight gasket sealing with IK09 impact resistance.
Recommended Road Applications
Tailored photometric deployments matching standard municipal pole heights and road widths.
Multi-Lane Highways
High-wattage (180W–240W) deployment delivering broad forward throw distribution for multi-lane highway visibility.
City Main Arterials
Mid-wattage (100W–150W) uniform illumination meeting municipal roadway luminance standards and smart dimming tenders.
Industrial Zones
Rugged IP66/IK09 die-cast body resisting heavy logistics traffic vibration, airborne dust, and high moisture.
Residential & Perimeter
Low-wattage (30W–60W) asymmetric optics providing glare-free nighttime illumination for community driveways and sidewalks.
Need IES Files, Dialux Simulations, or Custom Driver Configurations?
Provide your road profile, pole spacing, and target lux requirement. Our engineering team delivers full photometric reports and project pricing within 24 hours.
