3-in-1 Heavy-Duty Multi-Functional Industrial LED High Bay Light
High-output industrial luminaire engineered for automated logistics warehouses, manufacturing plants, transit tunnels, indoor arenas, and heavy-duty exhibition centers. Combines a rugged ADC12 die-cast aluminum housing with dual linear optical lens plates delivering over 160 lm/W, an integrated plug-and-play induction sensor port, dense convective thermal fins, a 3-in-1 multi-mounting ecosystem, and IP66/IK09 weatherproofing.
Engineering & Multi-Functional Advantages
Dual linear optical lens matrix, 3-in-1 adaptable mounting hardware, and integrated induction sensing architecture.

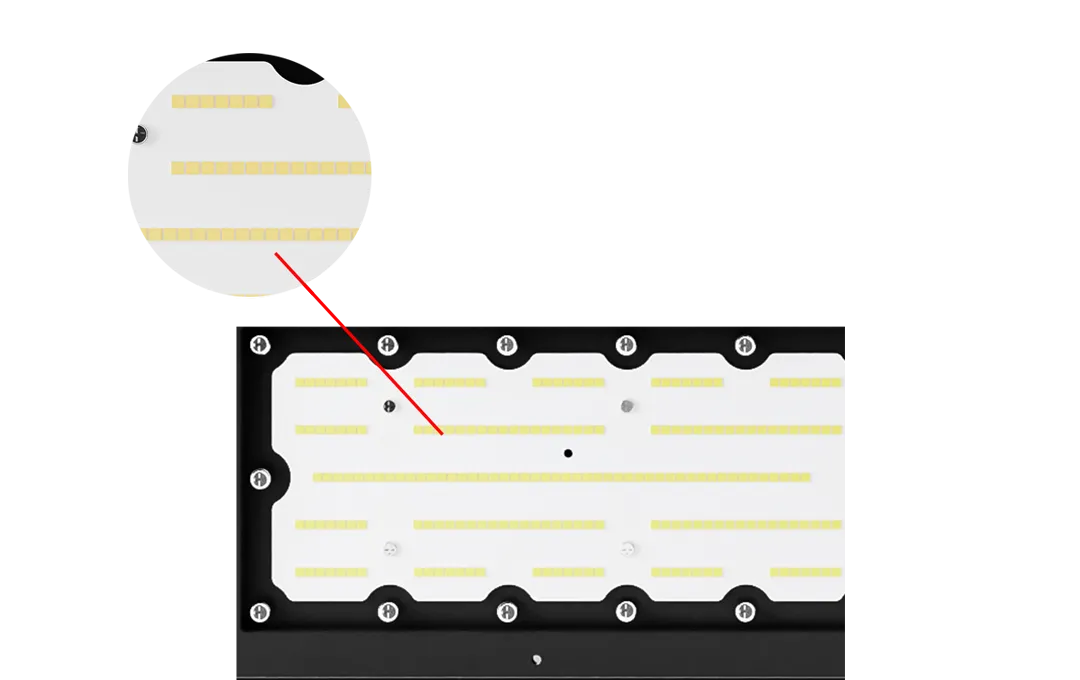

Dual Linear Optical Lens Engine (≥160 lm/W)
Equipped with high-density premium LED chip arrays paired with precision-molded multi-row optical lens plates. Provides uniform vertical and horizontal foot-candle levels across high-ceiling racking aisles while suppressing high-angle glare (UGR < 19).
- High color rendering index (CRI > 70 / 80 optional) for crisp barcode scanning and inspection accuracy.
- Available in 3000K warm white, 4000K natural white, and 5000K/6500K industrial daylight.
- UV-stabilized polycarbonate optical lens plates offering high impact and thermal resistance.
Die-Cast Chassis & 3-Perspective Structure
Constructed with high-pressure ADC12 die-cast aluminum with dense longitudinal cooling fins. Features a physically isolated upper driver housing that isolates electrical heat from the dual optical chambers.
- Multi-stage industrial powder coating providing C5-grade anti-corrosion protection.
- Continuous silicone gasket ensuring watertight IP66 ingress protection against high-pressure washdowns.
- Built-in 10kV / 20kV surge protection device (SPD) safeguarding against line voltage spikes.

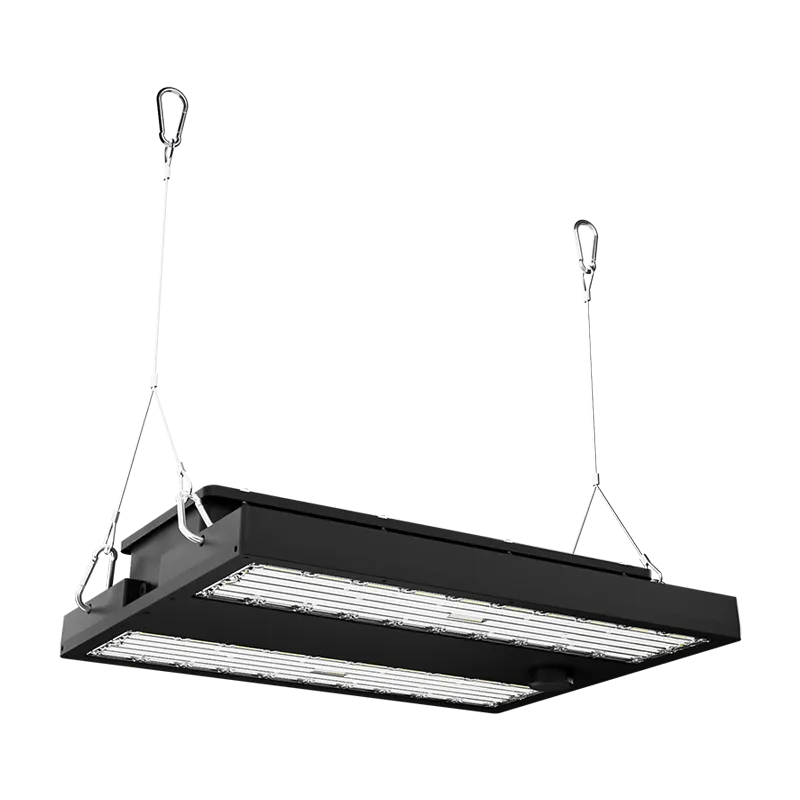

Scalable High-Power Enclosures (300W to 400W)
The PE-8012 series delivers high-intensity photometric output across three heavy-duty power tiers matching demanding industrial ceiling heights:
- 300W Configuration: Ideal for 10m–15m ceilings in logistics transit halls and standard manufacturing plants.
- 350W Configuration: High-flux model for 14m–18m heavy assembly workshops and high-bay warehouses.
- 400W Heavy-Duty Model: Maximum foot-candles for 16m–25m automated storage racking, indoor sports stadiums, and tunnel portals.

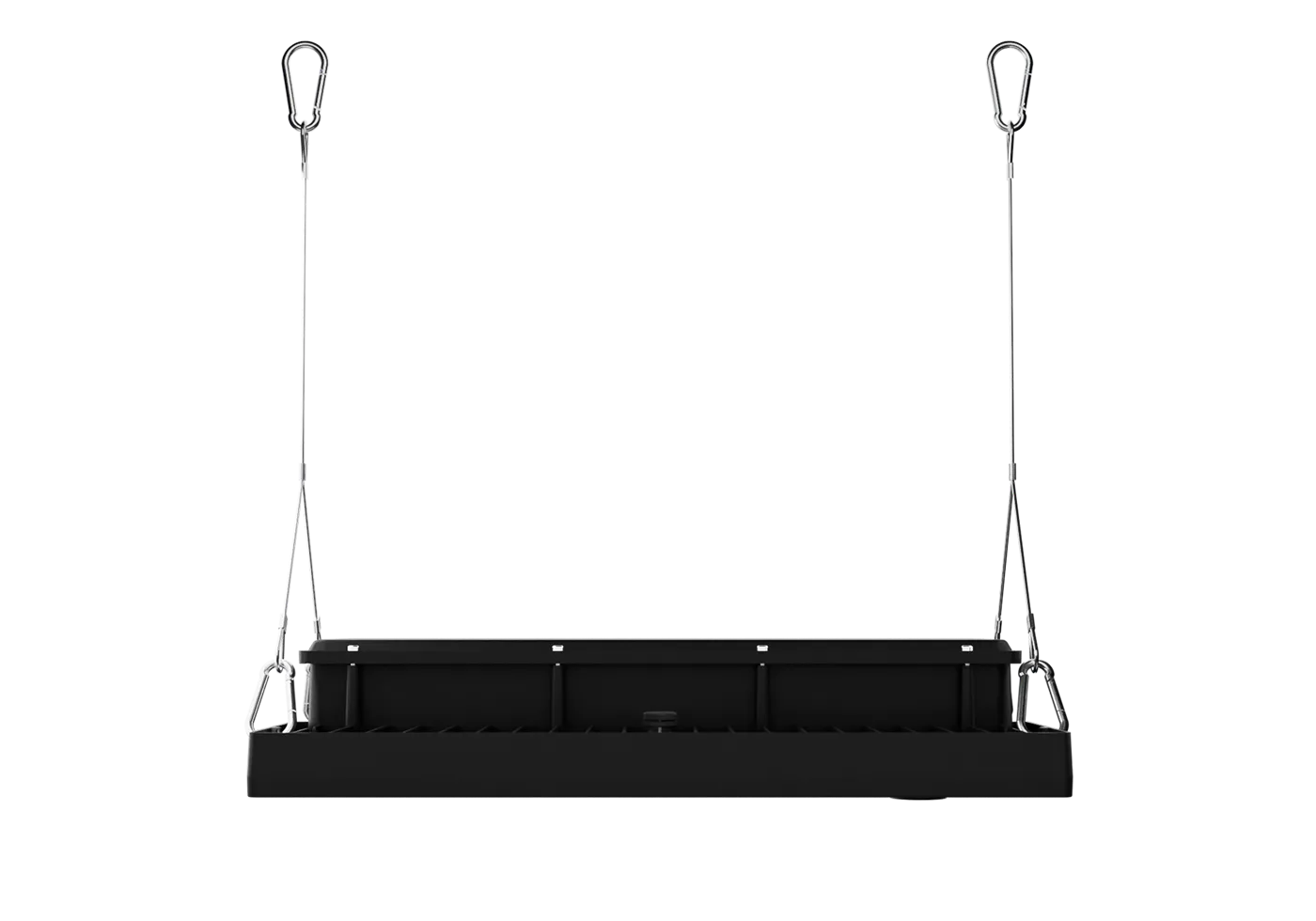

Slim Profile & High-Tensile Suspension Rigging
The slim, balanced rectangular chassis is equipped with heavy-duty aircraft-grade stainless steel wire ropes and carabiner safety clips, ensuring quick, perfectly leveled suspended installation.
- Dual-point balanced rigging prevents fixture sway and twisting from overhead ventilation airflow.
- Direct thermal conduction through high-purity aluminum core substrate.
- Operating temperature rating from -35°C to +50°C across demanding climatic zones.
Smart Induction Sensor & Precision Optics
Features a central receptacle for plug-and-play microwave / PIR motion sensors, enabling automated presence detection and daylight harvesting to maximize facility energy savings.
- Integrated sensor socket supporting tool-less sensor replacement and commissioning.
- Supports SOSEN, Mean Well, Inventronics, and Philips 0-10V / DALI / PWM dimming systems.
- Stainless steel external hardware guarantees corrosion-free longevity in industrial atmospheres.

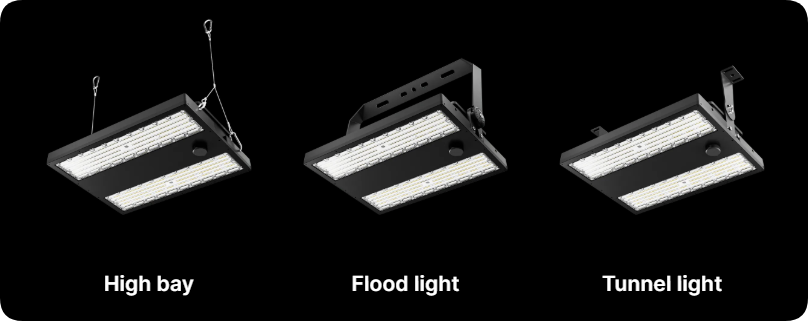

3-in-1 Multi-Functional Installation Ecosystem
Features an engineered modular chassis allowing rapid field transformation across diverse industrial and civil lighting deployments:
- Suspended High Bay: Aircraft-grade wire rope / chain pendant mounting for high-ceiling workshops and distribution centers.
- Bracket Floodlight: Heavy-duty adjustable steel yoke bracket for building facades and open logistics storage yards.
- Ceiling / Wall Tunnel Light: Low-profile surface bracket engineered for highway transit tunnels and covered underpasses.
Recommended Industrial Applications
3-in-1 modular photometric configurations engineered for automated warehouses, heavy workshops, transit tunnels, and indoor arenas.
Logistics Hubs & Aisle Racking
Linear aisle photometric distribution delivering clear vertical illuminance on high-bay pallet racking and barcode scanning zones.
Manufacturing Workshops
Robust IP66/IK09 die-cast enclosure resisting airborne metal dust, chemical oil vapors, and overhead crane vibrations.
Highway Tunnels & Underpasses
Low-profile surface mounting with corrosion-resistant coating engineered for 24/7 continuous transit tunnel illumination.
Indoor Arenas & Gymnasiums
High-flux 400W output with flicker-free operation and low-glare optical shielding tailored for televised indoor sports.
Need Industrial High Bay Dialux Simulations, IES Files, or Project Quotations?
Provide your facility dimensions, mounting height, and target lux level. Our engineering team delivers full photometric simulations and pricing within 24 hours.
