Heavy-Duty Hybrid Solar Street Light (50W–120W)
High-output commercial solar street light delivering up to 24,000 lm (≥200 lm/W). Powered by dual monocrystalline solar panels, 25.6V high-capacity LiFePO4 battery systems, smart MPPT controllers, and optional AC utility complementary power backup for expressway and municipal tenders.
Technical Parameter Matrix
Comprehensive optical, electrical, and battery parameters across standard PE-6060SL engineering models.
| Model Code | LED Power | Luminous Flux | Solar Panel | LiFePO4 Battery | Optics (IES) | Installation Dia. / Height |
|---|---|---|---|---|---|---|
| PE-6060SL-50W | 50W | 10,000 lm | 18V 120W Mono | 12.8V 36Ah (460.8Wh) | Type I / II / IV / V | Φ60mm / 6–8m Pole |
| PE-6060SL-60W | 60W | 12,000 lm | 18V 150W Mono | 12.8V 45Ah (576Wh) | Type I / II / IV / V | Φ60mm / 7–9m Pole |
| PE-6060SL-100W | 100W | 20,000 lm | 18V 120W×2 Mono Array | 25.6V 36Ah (921.6Wh) | Type I / II / IV / V | Φ60–76mm / 9–11m Pole |
| PE-6060SL-120W | 120W | 24,000 lm | 18V 150W×2 Mono Array | 25.6V 54Ah (1382.4Wh) | Type I / II / IV / V | Φ60–76mm / 10–12m Pole |
Single-Panel Array (50W / 60W)
Optimized for standard 2-lane municipal roads, industrial park connectors, and urban perimeter routes.
- Solar PV Bracket: Single 120W–150W Monocrystalline
- Operating Voltage: 12.8V Low Voltage Safety System
- Housing Structure: ADC12 Die-Cast Aluminum Enclosure
- Road Optics: Type I, Type II, Type IV, Type V
Dual-Panel Array (100W / 120W)
Engineered for multi-lane expressways, heavy highway interchanges, and high-speed transit arteries.
- Solar PV Bracket: Dual 120W/150W×2 Mono Crossbar
- Operating Voltage: 25.6V High Capacity System
- Luminous Output: Up to 24,000 Lumens (200 lm/W)
- Road Optics: Type I, Type II, Type IV, Type V
Key Structural & Optical Advantages
High-grade mechanical engineering, thermal dissipation, and precision components for maintenance-free field performance.

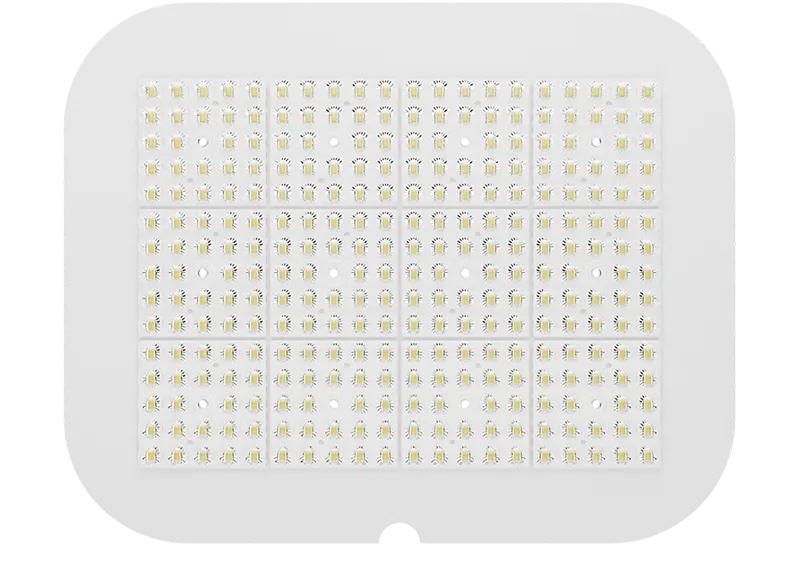

≥200 lm/W Multi-Optic Engine
Available in Type I, II, IV, and V light distributions, delivering precise ground lux uniformity with minimal upward light pollution.
Buckle-Latch Enclosure Access
Integrated mechanical latch allows structured maintenance access to internal drivers and LiFePO4 battery modules without dismounting the fixture.

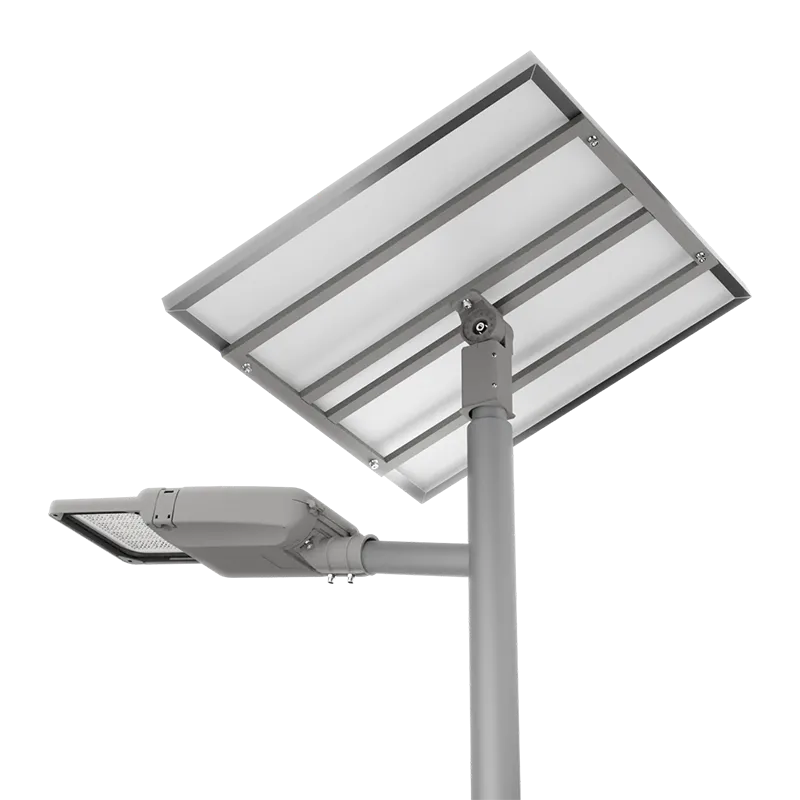

Adjustable Tilt Solar Bracket
Multi-angle indexing bracket allows field adjustment (15°–45°) to maximize year-round solar irradiation across different geographic latitudes.
Engineering Application Environments
Recommended deployment scenarios, pole mounting specifications, and road lighting classifications.
Main urban traffic corridors and multi-lane expressways requiring continuous high-lumen illumination.
Complex cloverleaf junctions, toll plazas, and bypass roundabouts needing wide-beam coverage.
Heavy transport corridors, warehouse perimeter roads, and container yard perimeter routes.
Commercial boulevards, secondary traffic roads, and residential connectors with smart dimming.
Need IES Photometric Files, Dialux Calculations, or Tender Sizing?
Send us your road width, pole height, and target illuminance class. Our lighting engineering team delivers complete 3D photometric calculations and factory pricing within 24 hours.
