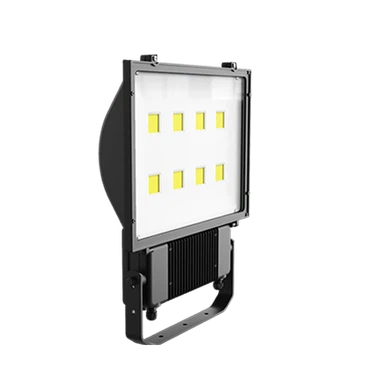

High-Power COB LED Stadium & High Mast Floodlight
High-intensity commercial luminaire engineered for football stadiums, soccer pitches, construction yards, marine docks, and high-mast transit terminals. Features a multi-core COB optical reflector array delivering over 100 lm/W with intense center punch, an aerodynamic curved-dome ADC12 die-cast aluminum housing, an isolated driver compartment, 0–270° heavy-duty bracket, and IP65/IK08 weatherproofing.
Engineering & COB Optical Advantages
High-density multi-core COB optical matrix, aerodynamic curved-dome chassis, and isolated driver compartment.
Multi-Core COB Optical Matrix (≥100 lm/W)
Utilizes high-output COB LED chips nested within multi-faceted optical reflector cups. Delivers deep forward light throw, intense center-beam lux, and smooth, uniform perimeter transitions without multiple overlapping shadows.
- High color rendering index (CRI > 70 / 80 optional) for crisp nighttime visual contrast.
- Available across 3000K warm white to 6500K daylight color temperatures.
- Reinforced tempered glass faceplate offering high mechanical impact and thermal resistance.

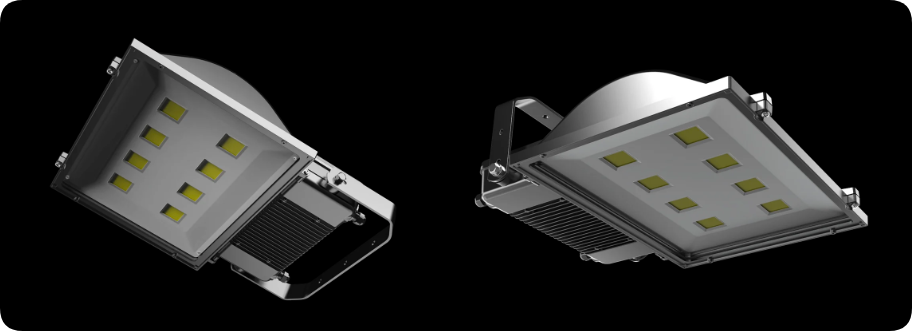

Aerodynamic Curved-Dome Housing & Die-Cast Frame
Constructed with high-pressure ADC12 die-cast aluminum in an aerodynamic curved-dome design that guides wind smoothly around the luminaire, reducing wind loading at elevated heights.
- Multi-stage outdoor powder coating providing C5-grade marine anti-corrosion protection.
- Continuous silicone gasket ensuring watertight IP65 ingress protection against heavy rains.
- Supports SOSEN, Mean Well, Inventronics, and Philips 0-10V / DALI / PWM dimming.

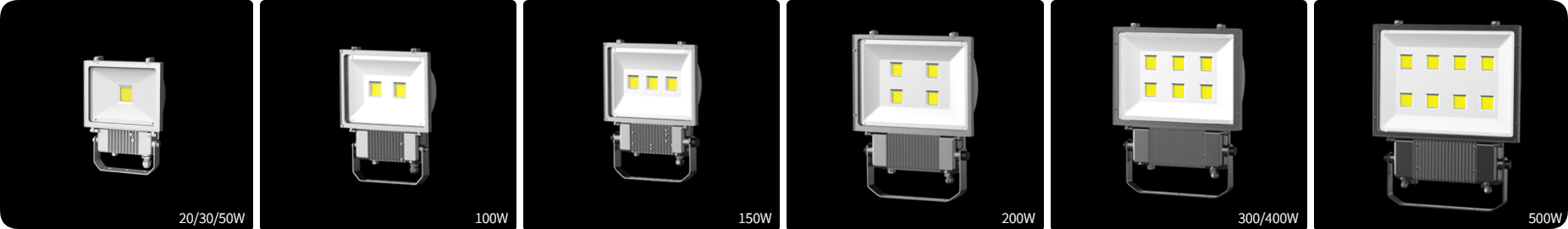

Six Scalable Die-Cast Sizes (20W to 500W)
The PE-2004ES series provides six engineered enclosure sizes covering complete architectural, industrial, and high-mast applications:
- Size 1 (1 COB / 20W / 30W / 50W): Entryways, pathway markers, and residential boundary perimeters.
- Size 2 (2 COBs / 100W): Commercial storefronts, outdoor billboards, and access gates.
- Size 3 (3 COBs / 150W): Mid-height parking lots, loading bays, and community sports courts.
- Size 4 (4 COBs / 200W): Community basketball courts, logistics yards, and warehouse high-bays.
- Size 5 (6 COBs / 300W / 400W): Soccer training grounds, municipal plazas, and open storage yards.
- Size 6 (8 COBs / 500W): Maximum lumen output for athletic stadiums, baseball fields, and high-mast aprons.

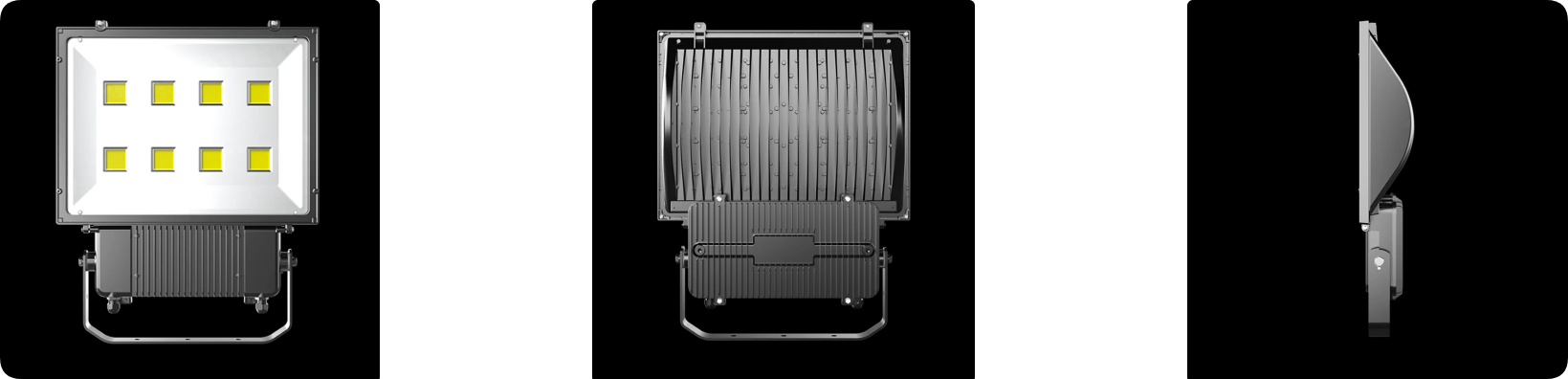

Convective Thermal Heatsink & Isolated Driver Box
The rear housing features dense curved longitudinal cooling fins and a physically isolated lower electrical compartment, creating continuous convective airflow to rapidly dissipate heat and protect internal power drivers.
- Isolated lower chamber prevents driver heat from impacting LED junction temperatures.
- Built-in 10kV / 20kV surge protection device (SPD) safeguarding against high-voltage spikes.
- Operating temperature rating from -40°C to +50°C across extreme climatic conditions.

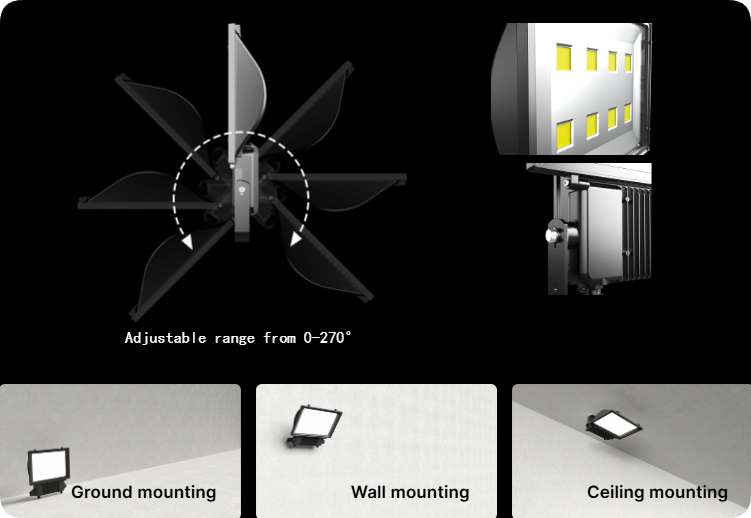

0–270° Heavy-Duty Steel Mounting Bracket
Equipped with a reinforced steel U-bracket and robust side locking bolts supporting smooth 0° to 270° multi-surface positioning:
- Wall Mounting: Ideal for building perimeters, commercial facades, and loading docks.
- Ground Mounting: Perfect for architectural monuments, billboards, and landscape uplighting.
- Ceiling Mounting: Suitable for indoor arenas, canopy roofs, and warehouse eaves.
High-Mast Platform Cluster Integration
Engineered for multi-luminaire cluster mounting on standard 10m to 30m sports poles and high-mast crossarms, delivering high-density uniform field illuminance across municipal athletic grounds, parking complexes, and commercial plazas.
- Aerodynamic dome chassis minimizes wind drag on elevated high-mast towers.
- Rigid die-cast mounting interface eliminates optical aiming drift under heavy storms.
- Backed by a comprehensive 5-year commercial factory warranty.
Recommended High-Power Applications
Heavy-duty COB photometric configurations engineered for athletic stadiums, sports complexes, freight yards, and commercial perimeters.
Football Stadiums & Fields
High-power 300W–500W COB configurations delivering intense, high-contrast lux for athletic fields and multi-sport facilities.
Ports & Freight Terminals
Corrosion-resistant IP65/IK08 die-cast chassis resisting heavy winds, marine salt air, and crane vibrations.
Parking Lots & Logistics
Wide optical reflector distribution providing high-contrast, uniform ground lux across expansive cargo handling areas.
Commercial Facades & Signs
Precision bracket flexibility allowing uniform wash-lighting on outdoor billboards and architectural facades.
Need High-Power COB Dialux Simulations, IES Files, or Project Quotations?
Provide your area dimensions, mounting height, and target lux level. Our engineering team delivers full photometric simulations and pricing within 24 hours.
