Precision Quad-Matrix LED Tennis Court & Sports Floodlight
High-precision sports luminaire engineered for professional tennis courts, basketball complexes, athletic facilities, and commercial high-mast perimeters. Delivering 130–140 lm/W luminous efficacy with forward-throw asymmetric quad-matrix optics, dual-chamber thermal isolation, dual mounting options (U-bracket or Φ60mm slip-fitter), and IP66/IK08 weatherproofing.
Engineering & Optical Advantages
Quad-matrix forward-throw asymmetric optics, dual-chamber thermal isolation, and dual mounting configurations.

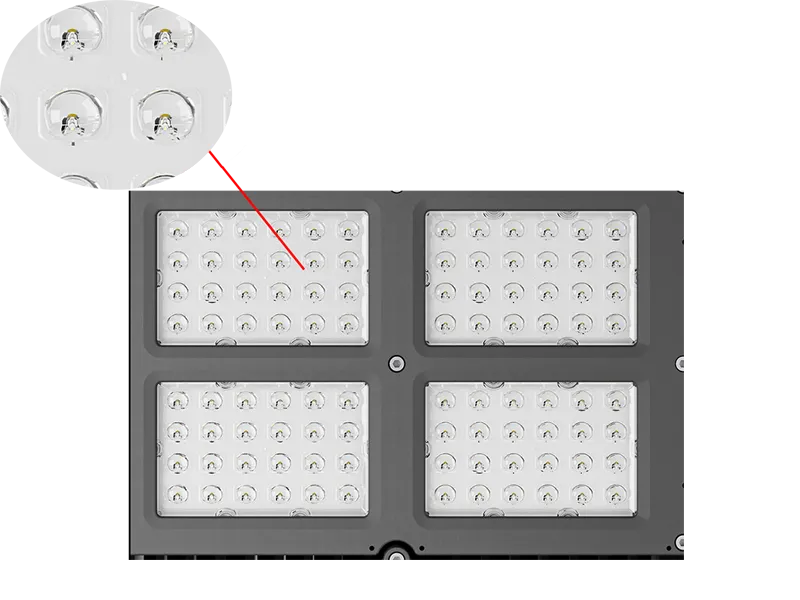

Quad-Matrix Asymmetric Optical Matrix (130–140 lm/W)
Equipped with four independent optical lens quadrants utilizing high-flux LED arrays paired with forward-throw asymmetric tennis court optics. Projects deep, uniform lateral illumination across baselines and service boxes while minimizing upward light spill and player glare during overhead serves.
- High color rendering index (CRI > 70 / 80 / 90 optional) ensuring clear ball trajectory tracking.
- Precision beam cut-off complies with tournament sports glare standards.
- UV-stabilized optical PC lens panels with high thermal and impact resistance.
Dual-Chamber Architecture & Front/Side Profile
Constructed with high-pressure ADC12 die-cast aluminum in a split dual-cavity layout that physically isolates the upper LED optical module from the lower electronic driver compartment, preventing mutual heat transfer.
- Protects sensitive internal drivers against excessive LED junction temperatures.
- Multi-stage outdoor powder coating providing C5-grade anti-corrosion protection.
- Supports SOSEN, Mean Well, MOSO, and Philips DALI / 0-10V / PWM dimming.
Longitudinal Convective Heatsink & Smart Sensors
The rear housing features dense longitudinal cooling fins that establish continuous vertical convective airflow, rapidly dissipating heat from LED junctions while preventing dust and rainwater accumulation.
- Optional bottom-mounted microwave motion radar sensor for presence-based energy savings.
- Integrated NEMA / Zhaga receptacle for automated dusk-to-dawn photocell control.
- Operating temperature range from -40°C to +45°C across all outdoor climatic zones.
Slim Aerodynamic Profile & Isolated Driver Box
Features a streamlined stepped chassis that significantly reduces wind resistance on sports poles while providing quick, independent access to the driver compartment for fast maintenance.
- Heavy-duty IP66 silicone sealing gasket guarantees long-term watertight integrity.
- Built-in 10kV / 20kV surge protection device (SPD) protecting against lightning surges.
- Stainless steel external fasteners ensure corrosion-free maintenance access.

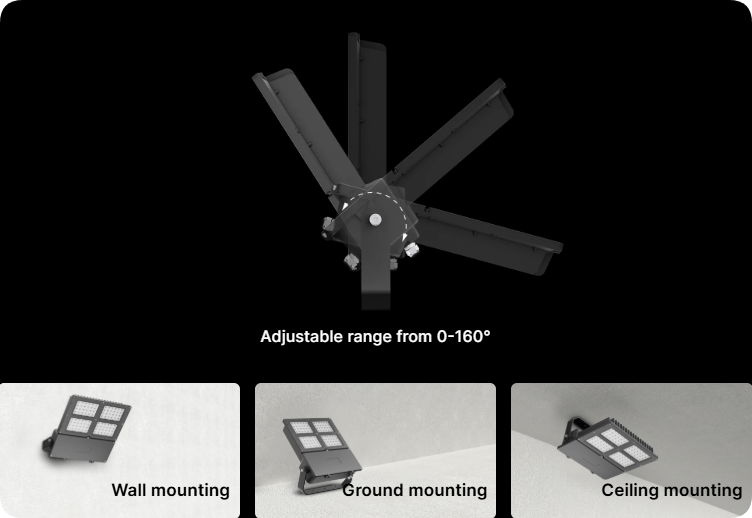

0–160° Multi-Angle Mounting (Wall / Ground / Ceiling)
The heavy-duty steel U-bracket rotates smoothly across 0° to 160° with a mechanical angle locking bolt, allowing precise architectural aiming and perimeter floodlighting.
- Wall Mounting: Ideal for building perimeters, sports hall facades, and warehouse loading docks.
- Ground Mounting: Perfect for architectural signage and monumental landscape uplighting.
- Ceiling Mounting: Suitable for covered sports facilities, indoor training courts, and canopy gantries.

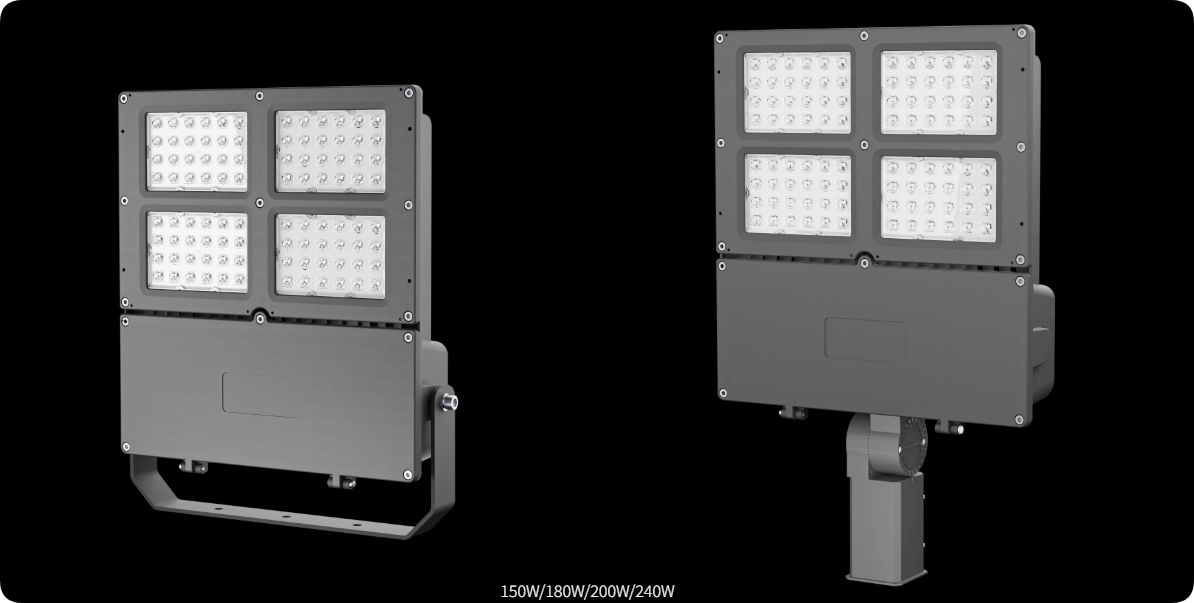

Dual Mounting Versatility: U-Bracket & Slip-Fitter Spigot
The PE-2080 series offers two interchangeable heavy-duty mounting hardware options to match diverse civil engineering requirements across 150W, 180W, 200W, and 240W models:
- Heavy-Duty U-Bracket: High-strength steel yoke bracket for surface, wall, and crossarm mounting.
- Φ60mm Slip-Fitter Spigot: Direct tenon clamp with mechanical degree teeth for standard sports pole cantilever arms.

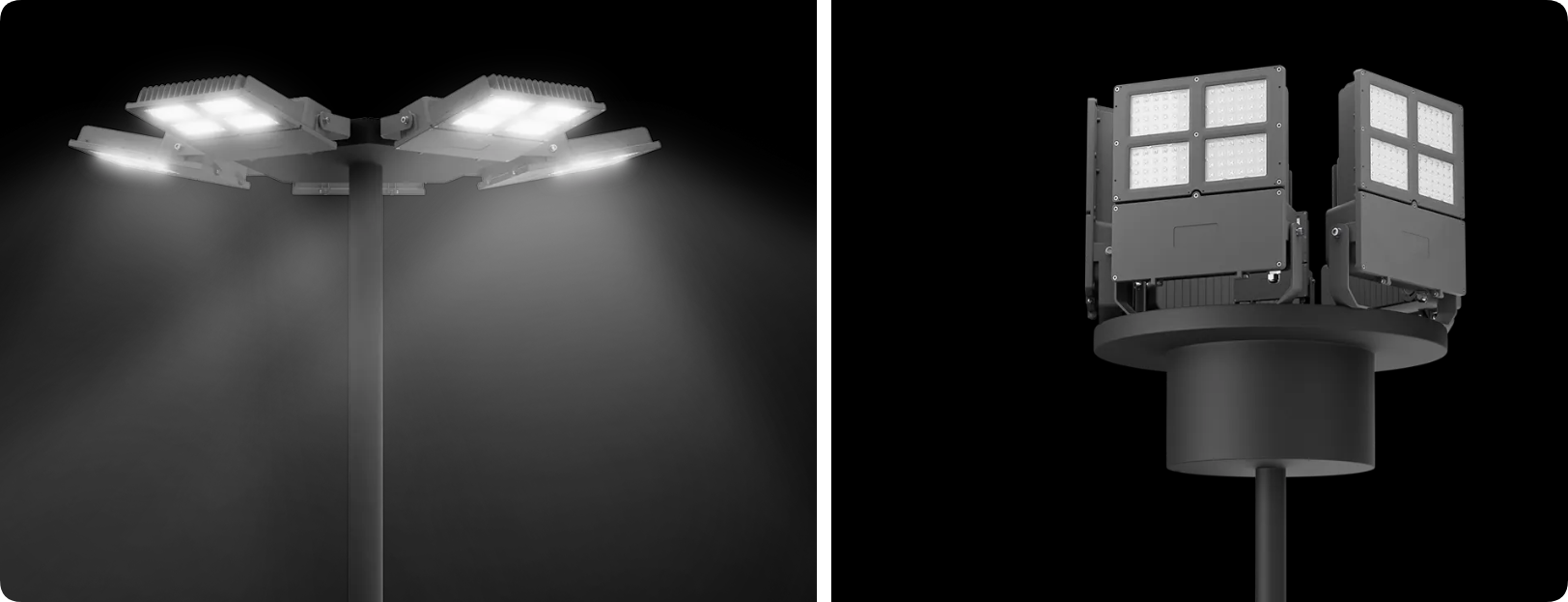

High-Mast Platform Cluster Integration
Engineered for multi-luminaire cluster mounting on standard 8m to 20m sports poles and high-mast crossarms, providing uniform, glare-free illuminance across multi-court tennis centers and commercial complexes.
- Multi-luminaire cluster configuration for 4-pole and 6-pole tennis court layouts.
- Vibration-proof mounting structure resisting constant elevated wind loads.
- Backed by a comprehensive 5-year commercial factory warranty.
Recommended Sports & Commercial Applications
Precision asymmetric photometric configurations engineered for tennis courts, multi-sport facilities, and commercial perimeters.
Tennis & Pickleball Courts
Forward-throw asymmetric beam profiles delivering class-leading foot-candle uniformity across playing lines without blinding servers.
Basketball & Multi-Sport
High-lumen glare-free illumination providing clear nighttime contrast for recreational and tournament sporting facilities.
Commercial Parking & Facades
Broad optical distribution illuminating large open parking complexes, loading zones, and corporate architectural perimeters.
Industrial Yards & Gates
Rugged IP66/IK08 die-cast chassis withstanding vibration, airborne industrial dust, and severe tropical monsoon weather.
Need Tennis Court Dialux Simulations, IES Files, or Project Quotations?
Provide your court layout, pole arrangement, and target lux standard. Our sports lighting engineers deliver full photometric simulations and pricing within 24 hours.
