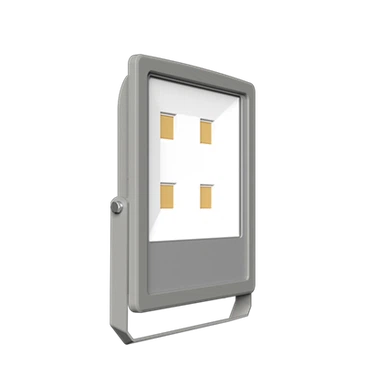

Classic Multi-Core COB Commercial & Architectural LED Floodlight
Classic high-efficiency commercial luminaire engineered for building facades, outdoor signage, logistics loading bays, sports perimeters, and architectural monuments. Features high-output CREE / Bridgelux COB LED arrays delivering up to 120 lm/W with intense center-beam punch, an ultra-slim ADC12 die-cast aluminum housing, a 0–360° full-rotation steel bracket, and IP65/IK07 weatherproofing.
Engineering & COB Optical Advantages
High-intensity CREE/Bridgelux COB matrix, aerodynamic die-cast unibody, and full 360° rotation mounting bracket.
CREE / Bridgelux High-Flux COB Matrix (≥120 lm/W)
Utilizes high-output COB LED arrays nested within beveled white optical reflector cups. Delivers intense center-beam punch and long-distance throw while ensuring a smooth 120° perimeter floodlight spread without overlapping multi-point shadows.
- High color rendering index (CRI > 70 / 80 optional) for crisp nighttime visual clarity.
- Available from 2700K warm white to 6500K daylight color temperatures.
- High optical transmittance tempered glass faceplate offering superior thermal and impact resistance.

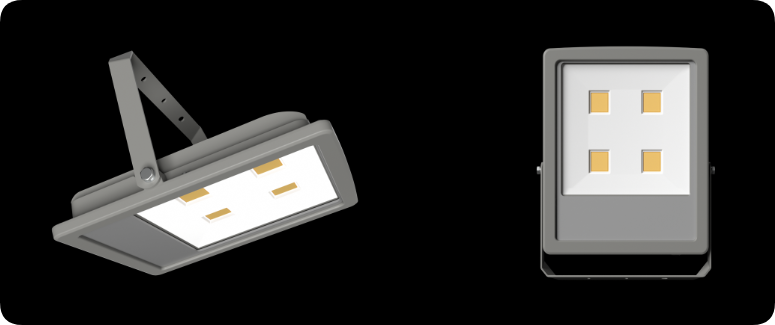

Slim Die-Cast Frame & Dual Perspectives
Constructed with high-pressure ADC12 die-cast aluminum in an ultra-slim profile that minimizes elevated wind drag while providing exceptional mechanical rigidity across exterior building facades.
- Heavy-duty outdoor powder coating providing C5-grade anti-corrosion protection.
- Continuous silicone gasket ensuring watertight IP65 ingress protection against heavy rains.
- Built-in 6kV / 10kV surge protection device (SPD) safeguarding against line voltage spikes.
Scalable Low-Power COB Enclosures (10W to 50W)
The PE-2085COB series provides calibrated enclosure formats tailored for residential security, perimeter lighting, and architectural signage:
- Size 1 (10W / 1 Micro COB): Pathway markers, entryway accents, and residential garden borders.
- Size 2 (20W / 1 Mini COB): Residential doorways, perimeter walls, and small signboards.
- Size 3 (30W / 1 Mid COB): Storefront entrances, parking bays, and commercial signage.
- Size 4 (50W / 1 High COB): Building facade washing, billboards, and pathway lighting.
High-Power Commercial COB Enclosures (100W to 300W)
Engineered for sports facilities, logistics freight yards, and open municipal plazas requiring high-flux, punchy illumination:
- Size 5 (100W / 2 COBs): Commercial facades, freight loading docks, and mid-height parking lots.
- Size 6 (200W / 4 COBs): Community sports courts, logistics yards, and industrial warehouse perimeters.
- Size 7 (300W / 4 High COBs): Maximum lumen output for athletic stadiums, open storage plazas, and high-mast poles.
Convective Thermal Heatsink & Side Slim Profile
The rear housing features dense vertical cooling ribs that establish continuous convective airflow, conducting heat directly away from the COB core substrate to preserve long-term lumen maintenance.
- Direct thermal conduction through high-purity aluminum backplate.
- Low heat retention design ensures reliable performance across hot climatic zones.
- Operating temperature rating from -30°C to +45°C across diverse outdoor environments.

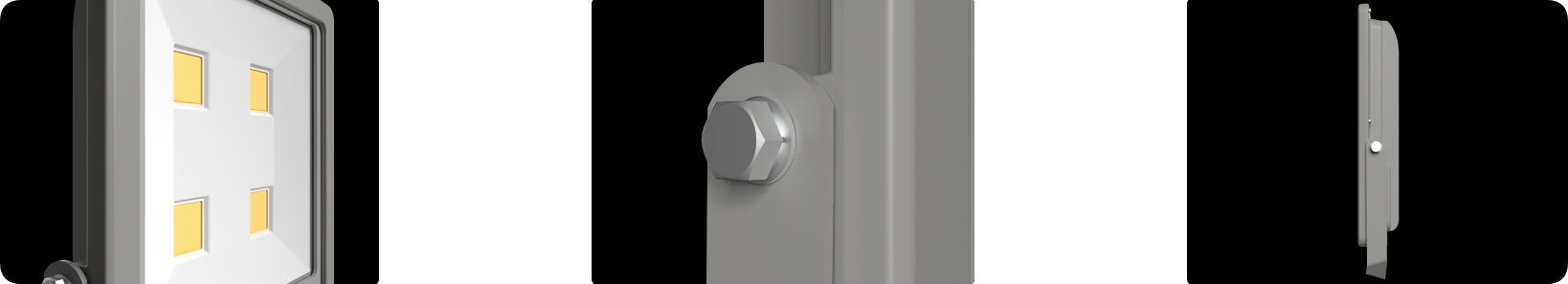

Single-Bolt Locking Bracket & Hardware Details
Equipped with a reinforced steel yoke bracket and a high-torque stainless steel hex locking bolt that ensures rigid angle retention under heavy wind gusts.
- Dusk-to-Dawn photocell sensor option for automated day/night switching.
- PIR motion sensor option for presence-based automated energy savings.
- Bottom-mounted sealed cable gland with strain relief for secure electrical wiring.

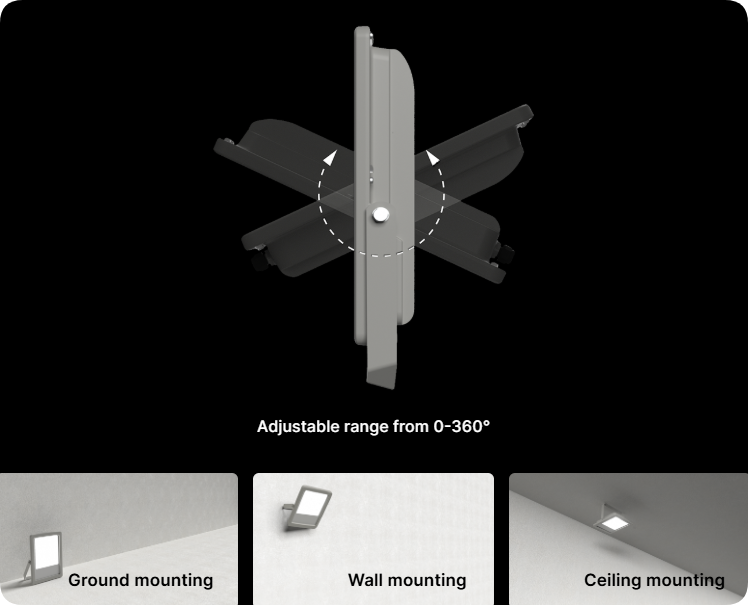

0–360° Full-Circle Multi-Surface Mounting
The heavy-duty steel U-bracket rotates smoothly across a complete 360° circle, allowing unconstrained forward, downward, and upward architectural aiming across diverse structural mountings.
- Wall Mounting: Ideal for building perimeters, commercial facades, and loading docks.
- Ground Mounting: Perfect for architectural monuments, billboards, and landscape uplighting.
- Ceiling Mounting: Suitable for canopies, covered sports halls, and warehouse eaves.

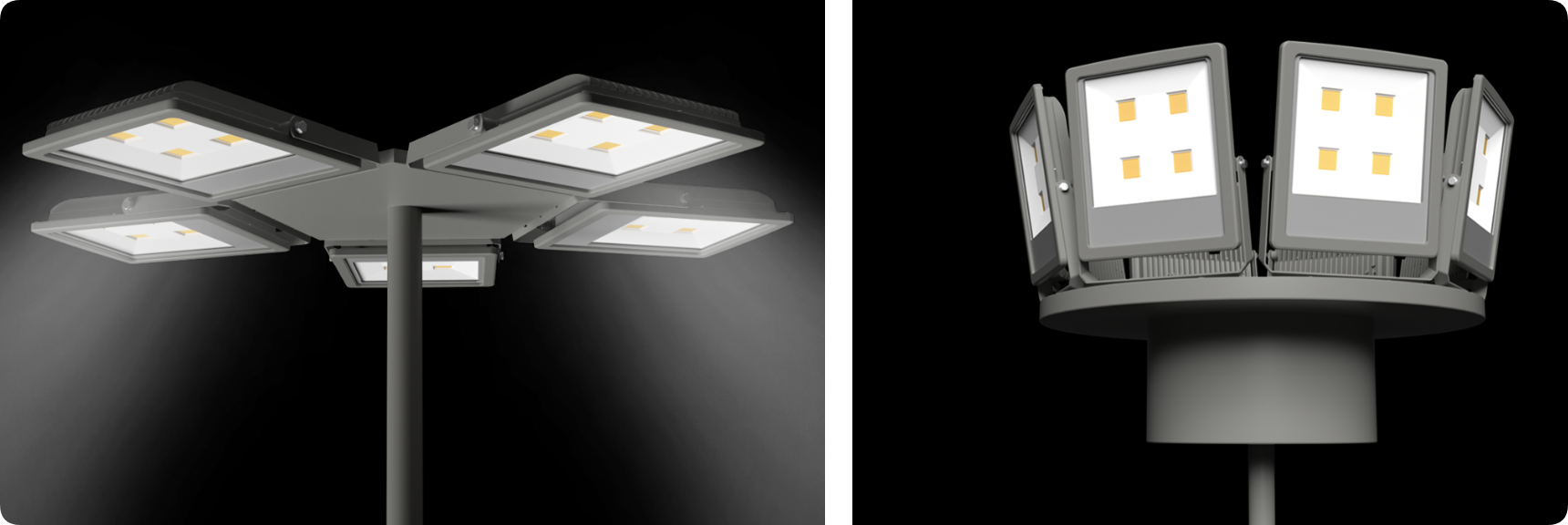

High-Mast Platform Cluster Integration
Engineered for multi-luminaire cluster mounting on standard 8m to 25m sports poles and high-mast crossarms, delivering high-density uniform field illuminance across municipal athletic grounds, parking complexes, and commercial plazas.
- Compact unibody design allows high-density pole cluster mounting.
- Aerodynamic curved profile minimizes wind load on high-mast lighting towers.
- Backed by a comprehensive 5-year commercial factory warranty.
Recommended Commercial & Architectural Applications
Classic multi-core COB photometric configurations engineered for commercial facades, logistics hubs, sports courts, and landscape monuments.
Commercial Facades & Signs
Punchy COB light throw highlighting commercial signage, corporate headquarters, and architectural facades with uniform color purity.
Logistics Hubs & Loading Bays
High-flux 100W–200W configurations delivering clear, non-glare ground illumination for night-time freight operations.
Community Sports Courts
Mid-to-high power models (200W–300W) providing uniform, high-contrast lux across basketball and multi-sport grounds.
Residential Gardens & Security
Compact 10W–50W models with PIR motion detection providing smart, energy-efficient security illumination.
Need Commercial COB Dialux Simulations, IES Files, or Project Quotations?
Provide your area dimensions, mounting height, and target lux level. Our engineering team delivers full photometric simulations and pricing within 24 hours.
