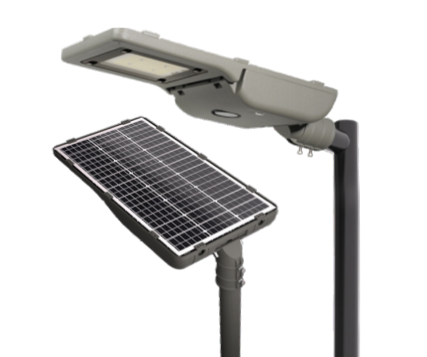

Compact Integrated Solar Street Light
Aerodynamic unibody solar luminaire featuring a self-cleaning sloped profile, Grade-A LiFePO4 battery pack, and high-conversion monocrystalline PV panel. Supports flexible horizontal side-entry and vertical post-top mounting with ±15° precision tilt angle adjustment.
Technical Parameter Matrix
Comprehensive specification breakdown across the 3 standardized PE-6050SL enclosure sizes.
| Model Code | Rated Power | Luminous Flux | Solar PV Panel | LiFePO4 Battery | Autonomy / Charging | Recommended Pole |
|---|---|---|---|---|---|---|
| PE-6050SL-15W | 10W / 12W / 15W | 2,000 – 3,000 lm | 18V 25W Mono | 12.8V 10Ah | 3–5 Days / 4–6h Charge | 3–5m / Φ60mm |
| PE-6050SL-30W | 20W / 24W / 30W | 4,000 – 6,000 lm | 18V 45W Mono | 12.8V 20Ah | 3–5 Days / 4–6h Charge | 5–7m / Φ60mm |
| PE-6050SL-60W | 40W / 50W / 60W | 8,000 – 12,000 lm | 18V 75W Mono | 12.8V 36Ah | 3–5 Days / 4–6h Charge | 7–9m / Φ60–76mm |
Small Shell (10W – 15W)
Compact footprint designed for residential pathways, park gardens, and campus perimeters.
- Solar PV: 18V 25W Monocrystalline
- Battery Pack: 12.8V 10Ah LiFePO4
- Mounting: 3–5m Pole Height
Medium Shell (20W – 30W)
Optimal balance of power and coverage for rural secondary roads and industrial access gates.
- Solar PV: 18V 45W Monocrystalline
- Battery Pack: 12.8V 20Ah LiFePO4
- Mounting: 5–7m Pole Height
Large Shell (40W – 60W)
High-lumen output configuration engineered for municipal streets and commercial parking plazas.
- Solar PV: 18V 75W Monocrystalline
- Battery Pack: 12.8V 36Ah LiFePO4
- Mounting: 7–9m Pole Height
Key Structural & Optical Advantages
Precision optical engineering, dual-orientation installation bracket, and high-reliability components.
≥200 lm/W Wide-Beam Optical Board
Integrated high-density SMD LED matrix with optical-grade PC lenses delivering batwing road distribution, high uniformity, and maximum illumination footprint.
Dual Mounting with ±15° Tilt Indexing
Universal adapter supports both horizontal arm extension and vertical post-top installation. Built-in angle indexing permits -15° to +15° elevation adjustment.

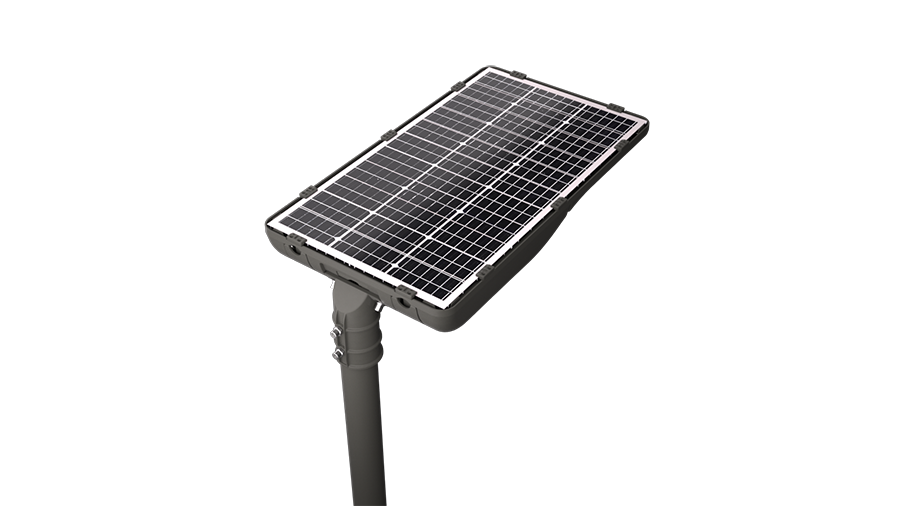

Self-Cleaning Monocrystalline Solar PV
Aerodynamic sloping unibody prevents dust, leaves, and rainwater accumulation. High-conversion mono cells deliver ≥22% photo-electric conversion efficiency.

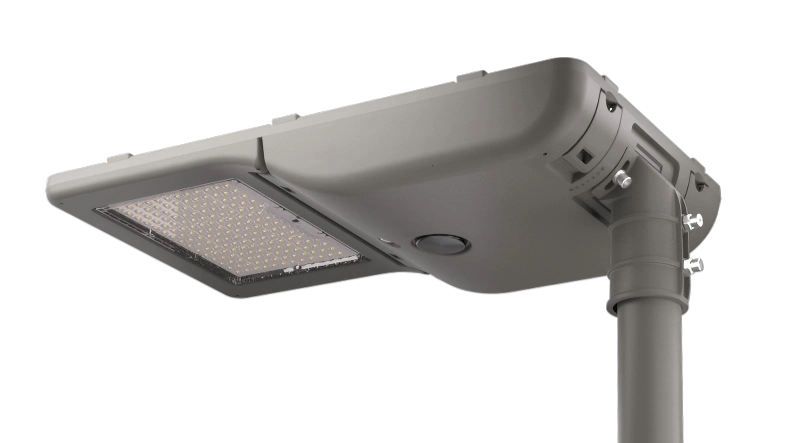

ADC12 Die-Cast Clamshell Enclosure
Corrosion-resistant powder-coated die-cast aluminum housing. Hinged internal cavity provides clean component isolation and hassle-free maintenance access.
Engineering Application Environments
Recommended deployment environments, pole mounting heights, and roadside lighting scenarios.
Residential municipal streets, community connectors, and secondary traffic lanes.
Township access roads and rural road development projects without grid power infrastructure.
Factory perimeter fencing, internal logistics roadways, and parking facilities.
Pedestrian walking trails, community gardens, resorts, and educational institutions.
Need IES Files, Dialux Calculations, or Tender Sizing?
Send us your road width, pole height, and target lux levels. Our lighting engineers provide complete Dialux lighting simulations within 24 hours.
