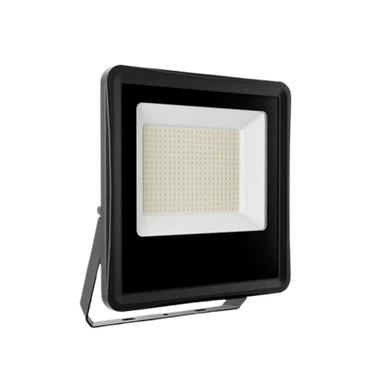

Economic Ultra-Slim DOB Security & Architectural LED Floodlight
High cost-performance outdoor luminaire engineered for residential perimeters, commercial storefronts, video surveillance fill-lighting, parking areas, and municipal landscapes. Features solid-state Driver-on-Board (DOB) technology delivering up to 120 lm/W across four chassis sizes, a deep-recessed beveled white reflector bezel, a 0–120° adjustable mounting bracket, PIR motion sensor readiness, and IP66/IK06 weatherproofing.
Engineering & DOB Circuitry Advantages
Solid-state Driver-on-Board architecture, deep-recessed white reflector bezel, and multi-surface mounting versatility.

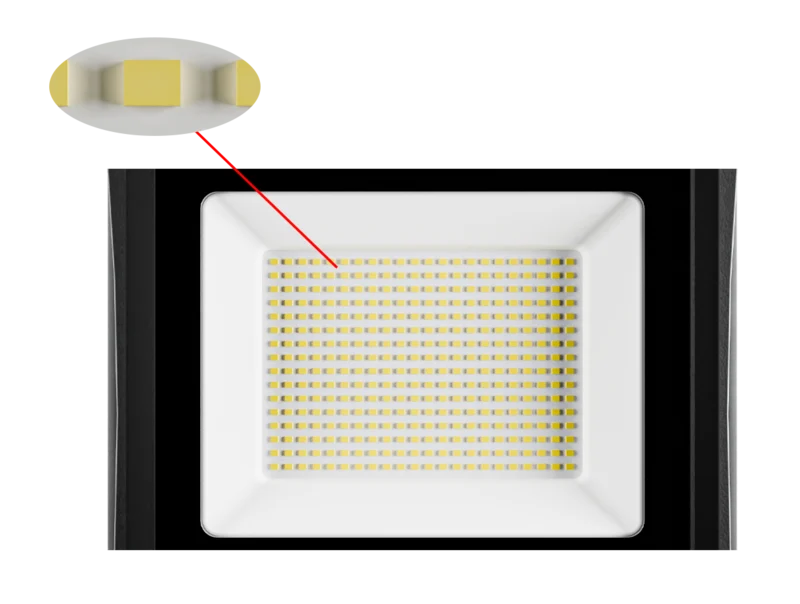

High-Lumen SMD Matrix & Deep-Recessed Bezel (≥120 lm/W)
Utilizes dense SMD LED arrays paired with an impact-resistant tempered glass faceplate and a deep beveled white reflector cup. Delivers a soft, wide 120° beam distribution that sharply reduces peripheral glare and improves nighttime surveillance visibility without dark spots.
- High color rendering index (CRI > 70 / 80 optional) for crisp visual contrast and clear camera imaging.
- Available from 3000K warm white to 6500K daylight and custom colored illumination options.
- Reinforced tempered glass faceplate offering superior thermal and impact resistance.

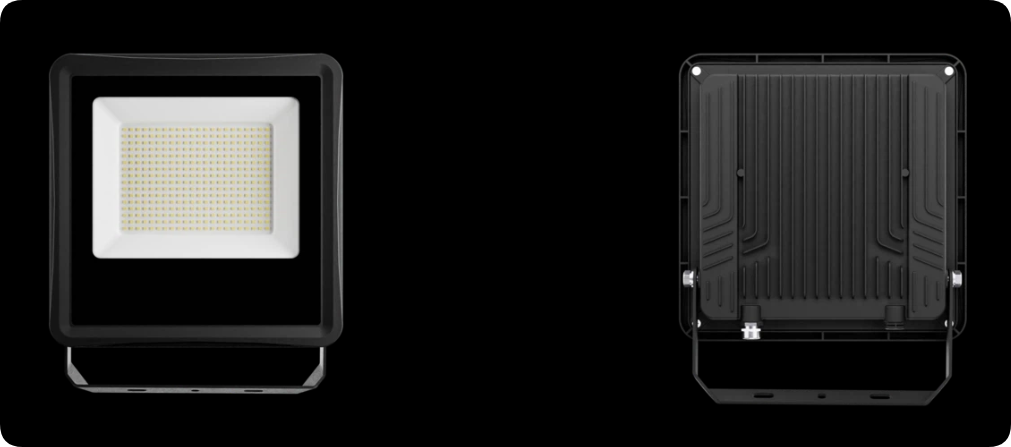

Front Optical Faceplate & Rear Convective Heatsink
Constructed with precision-molded ADC12 die-cast aluminum. The front features a clean black bezel framing the high-transmittance optical chamber, while the rear integrates dense cooling ribs to establish continuous convective airflow directly behind the DOB board.
- Multi-stage outdoor powder coating providing reliable anti-corrosion protection.
- Continuous silicone gasket ensuring watertight IP66 ingress protection against heavy rainstorms.
- Built-in surge protection device (SPD) safeguarding internal components against voltage spikes.
Four Scalable Die-Cast Sizes (30W to 200W)
The PE-2109 series provides four calibrated housing dimensions matching complete residential, commercial, and open-area project requirements:
- Size 1 (30W): Entryways, pathway markers, garden borders, and small residential signs.
- Size 2 (50W): Commercial storefronts, outdoor billboards, and garage access gates.
- Size 3 (100W): Mid-height parking lots, building facades, and industrial loading areas.
- Size 4 (150W / 200W): Community sports courts, logistics yards, and open storage plazas.
Ultra-Slim Die-Cast Profile & Dual Side Perspectives
The solid-state DOB architecture eliminates bulky external power boxes, enabling an ultra-thin unibody cross-section that minimizes elevated wind loading while maintaining high mechanical strength.
- Direct thermal conduction through high-purity aluminum core substrate.
- Low heat retention design ensures dependable performance across hot climatic zones.
- Operating temperature rating from -30°C to +45°C across diverse outdoor environments.

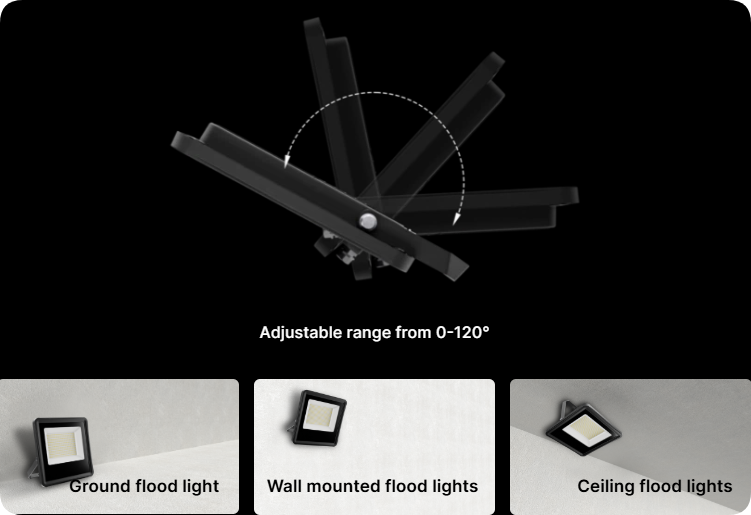

0–120° Adjustable Steel Bracket & Multi-Mounting
Features a heavy-duty steel mounting bracket with a single high-torque stainless steel locking bolt supporting smooth 0° to 120° aiming adjustments across diverse architectural surfaces:
- Wall Mounting: Ideal for facade wash lighting, garage entrances, and perimeter security.
- Ground Mounting: Perfect for architectural monument uplighting and landscape billboards.
- Ceiling Mounting: Suitable for canopies, covered walkways, and warehouse eaves.

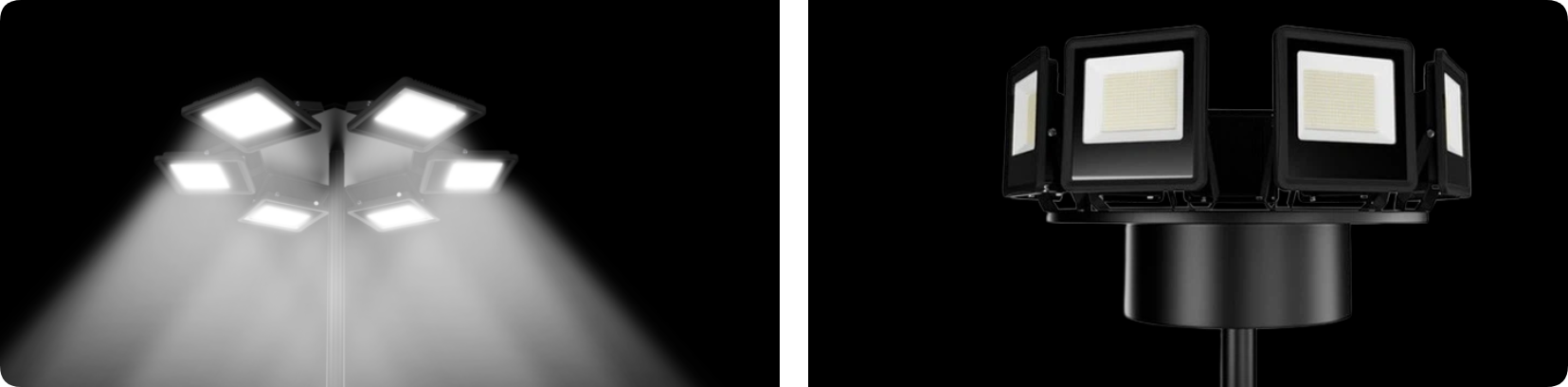

High-Mast Platform Cluster Integration
Engineered for multi-luminaire cluster mounting on standard 6m to 18m poles and high-mast crossarms, delivering high-density uniform field illuminance across municipal athletic grounds, parking complexes, and commercial plazas.
- Compact unibody design allows high-density pole cluster mounting.
- Aerodynamic slim profile minimizes elevated wind load and pole structural fatigue.
- Backed by a reliable 3-year commercial factory warranty.
Recommended Security & Architectural Applications
Economic ultra-slim DOB photometric configurations engineered for video surveillance fill-light, residential yards, commercial facades, and parking facilities.
Perimeter Security & Camera Fill
High-lumen wide beam distribution providing crisp, uniform illumination to enhance video surveillance clarity and security deterrence.
Commercial Facades & Signs
Wide 120° beam spread highlighting commercial storefronts, outdoor advertising boards, and building entrance portals.
Residential Yards & Garages
Compact, ultra-slim profile fitting discreetly under roof eaves, patio walls, and residential garage entries.
Parking Lots & Loading Bays
Durable IP66/IK06 die-cast chassis delivering reliable dusk-to-dawn outdoor illumination without driver maintenance.
Need Economic DOB Floodlight Dialux Simulations, IES Files, or Project Quotations?
Provide your area dimensions, mounting height, and target lux level. Our engineering team delivers full photometric simulations and pricing within 24 hours.
