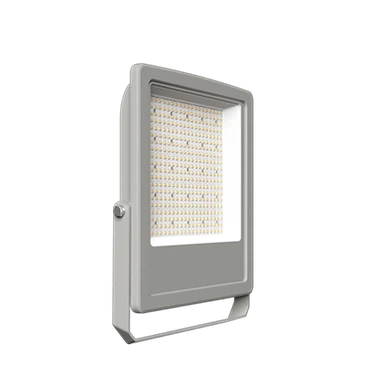

Super Bright 3030 SMD Commercial & Security LED Floodlight
High-output commercial luminaire engineered for building facades, logistics loading docks, perimeter security zones, sports perimeters, and municipal landscapes. Features high-efficiency 3030 SMD LED arrays delivering over 140 lm/W with a deep-recessed white reflector bezel, an ultra-slim ADC12 die-cast aluminum housing, a 0–360° full-rotation steel bracket, optional photocell & PIR motion automation, and IP65/IK07 weatherproofing.
Engineering & Photometric Advantages
High-efficiency 3030 SMD matrix, aerodynamic die-cast unibody, and full 360° rotation mounting bracket.
3030 High-Lumen SMD Matrix (≥140 lm/W)
Utilizes dense 3030 SMD LED arrays paired with an impact-resistant, high-transmittance tempered glass faceplate and white reflective bezel. Delivers an expansive 120° uniform beam spread that eliminates center hotspots and dark zones, available in static CCT (3000K–6500K) or vibrant RGB decorative configurations.
- High color rendering index (CRI > 70 / 80 optional) for vibrant nighttime visual clarity.
- Customizable decorative colored flood lighting (Red, Green, Blue, Amber, Warm White).
- Reinforced tempered glass faceplate offering superior thermal and impact resistance.

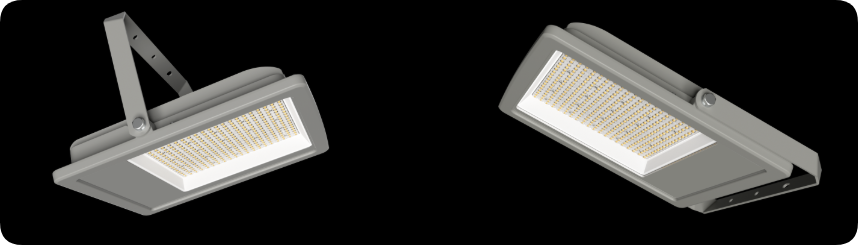

Slim Die-Cast Frame & Dual Perspectives
Constructed with high-pressure ADC12 die-cast aluminum in an ultra-slim profile that minimizes elevated wind drag while providing exceptional mechanical rigidity across exterior building facades.
- Heavy-duty outdoor powder coating providing C5-grade anti-corrosion protection.
- Continuous silicone gasket ensuring watertight IP65 ingress protection against heavy rains.
- Built-in 6kV / 10kV surge protection device (SPD) safeguarding against line voltage spikes.

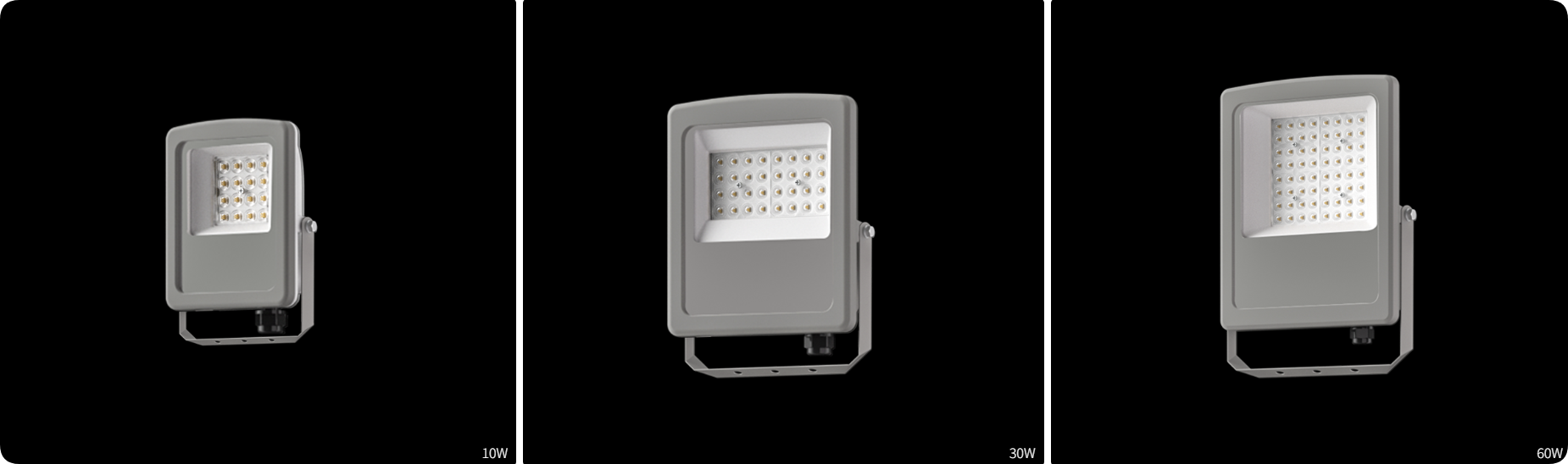

Scalable Low-Power SMD Enclosures (10W to 60W)
The PE-2085SMD series provides calibrated enclosure formats tailored for residential security, perimeter lighting, and architectural signage:
- Size 1 (10W / 20W): Pathway markers, entryway accents, and residential garden borders.
- Size 2 (30W / 40W): Small commercial billboards, storefront facades, and parking access gates.
- Size 3 (50W / 60W): Building facade washing, perimeter walls, and municipal walkways.
High-Power Commercial SMD Enclosures (100W to 300W)
Engineered for sports facilities, logistics freight yards, and open municipal plazas requiring high-flux, uniform illumination:
- Size 4 (100W): High-flux model for logistics bays, industrial plants, and mid-height parking lots.
- Size 5 (160W / 200W): Community sports courts, logistics yards, and warehouse perimeters.
- Size 6 (300W): Maximum lumen output for athletic stadiums, open plazas, and high-mast poles.
Convective Thermal Heatsink & 3-View Geometry
The rear housing features dense vertical cooling ribs that establish continuous convective airflow, conducting heat directly away from the SMD light board to preserve long-term lumen maintenance.
- Direct thermal conduction through high-purity aluminum core substrate.
- Low heat retention design ensures reliable performance across hot climatic zones.
- Operating temperature rating from -30°C to +45°C across diverse outdoor environments.

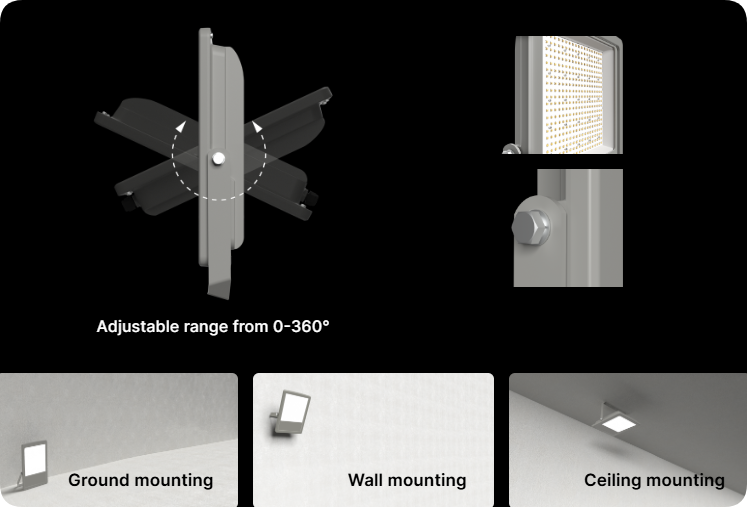

0–360° Rotation Bracket & Multi-Mounting Adaptability
Features a heavy-duty steel mounting bracket with a single high-torque stainless steel hex locking bolt supporting complete 360° rotation across all architectural surfaces:
- Wall Mounting: Ideal for building perimeters, commercial facades, and loading docks.
- Ground Mounting: Perfect for architectural monuments, signage, and landscape uplighting.
- Ceiling Mounting: Suitable for canopies, covered walkways, and warehouse eaves.

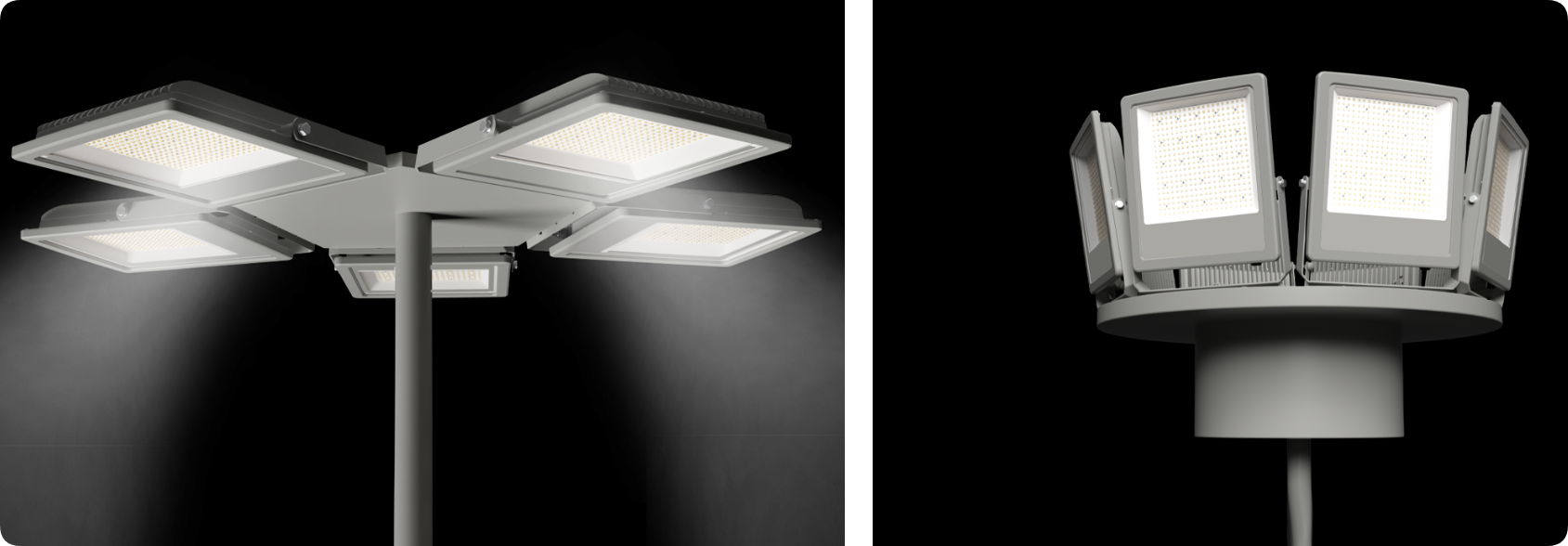

High-Mast Platform Cluster Integration
Engineered for multi-luminaire cluster mounting on standard 8m to 25m sports poles and high-mast crossarms, delivering high-density uniform field illuminance across municipal athletic grounds, parking complexes, and commercial plazas.
- Compact unibody design allows high-density pole cluster mounting.
- Aerodynamic curved profile minimizes wind load on high-mast lighting towers.
- Backed by a comprehensive 5-year commercial factory warranty.
Recommended Commercial & Security Applications
Super bright 3030 SMD photometric configurations engineered for commercial facades, logistics hubs, security perimeters, and sports courts.
Commercial Facades & Signs
Wide 120° beam distribution illuminating commercial signage and building facades with uniform, high-contrast clarity.
Logistics Hubs & Loading Bays
High-flux 100W–200W configurations delivering clear, non-glare ground illumination for night-time freight operations.
Perimeter Security & Motion Zones
Dusk-to-dawn automated photocell and PIR motion sensing delivering reliable perimeter security illumination.
Sports Courts & Multi-Use Areas
High-power 200W–300W models providing glare-free, uniform light across community basketball courts and athletic grounds.
Need Commercial Floodlight Dialux Simulations, IES Files, or Project Quotations?
Provide your area dimensions, mounting height, and target lux level. Our engineering team delivers full photometric simulations and pricing within 24 hours.
