Heavy-Duty Deep-Recessed Commercial & Industrial LED Floodlight
High-output commercial luminaire engineered for industrial manufacturing plants, logistics hubs, maritime docks, athletic perimeters, and commercial parking facilities. Combines a heavy-duty ADC12 die-cast aluminum chassis with a deep-recessed beveled reflector bezel, high-transmittance tempered glass faceplate, curved convective cooling ribs, 0–270° calibrated gear-locking bracket, and IP66/IK09 weatherproofing.
Engineering & Heavy-Duty Advantages
Deep-recessed beveled reflector bezel, high-transmittance tempered glass faceplate, and 0–270° gear-dial bracket.

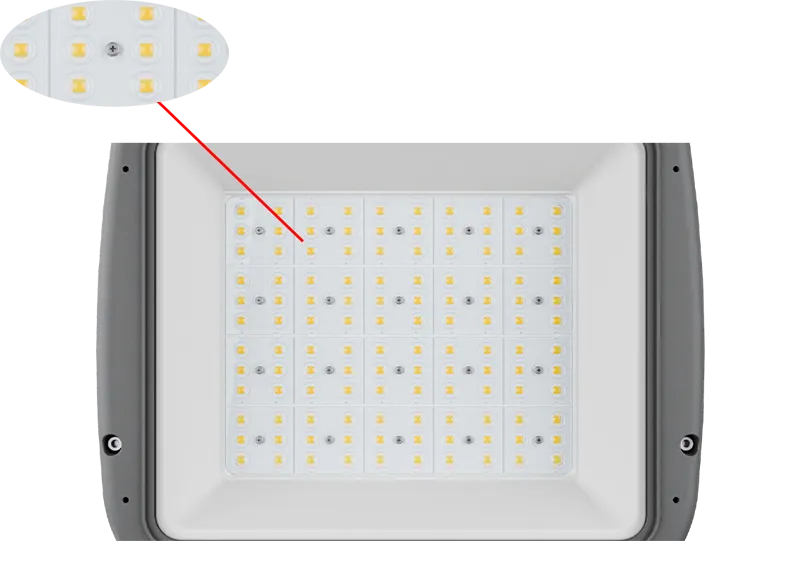

High-Lumen SMD Optical Matrix & Tempered Glass
Utilizes high-output SMD LED arrays paired with an impact-resistant, high-transmittance tempered glass faceplate. Produces a broad 120° uniform beam spread that eliminates central glare hotspots while resisting airborne industrial dust, oil vapors, and mechanical debris impacts.
- High color rendering index (CRI > 70 / 80 optional) for crisp nighttime visual contrast.
- Available from 3000K warm white to 6500K daylight color temperatures.
- Heavy-duty tempered glass prevents optical yellowing and degradation over years of exposure.
Deep-Recessed Die-Cast Frame & Dual Perspectives
Constructed with high-pressure ADC12 die-cast aluminum featuring an extra-deep internal cavity with beveled reflective side walls. Recesses the LED light source deeper into the frame, sharply reducing high-angle peripheral glare (UGR control).
- Multi-stage outdoor powder coating providing C5-grade marine anti-corrosion protection.
- Continuous silicone gasket ensuring watertight IP66 ingress protection.
- Supports SOSEN, Mean Well, Inventronics, and Philips 0-10V / DALI / PWM dimming.
Three Scalable Die-Cast Sizes (80W to 400W)
The PE-2071SMD series provides three engineered heavy-duty enclosure sizes covering complete commercial, infrastructure, and athletic lighting requirements:
- Size 1 (80W / 100W / 120W): Commercial storefronts, outdoor billboards, and perimeter security walls.
- Size 2 (150W / 200W / 240W): High-flux workhorse for logistics yards, industrial factories, and parking complexes.
- Size 3 (300W / 400W): Maximum lumen output for athletic training fields, shipping docks, and high-mast towers.

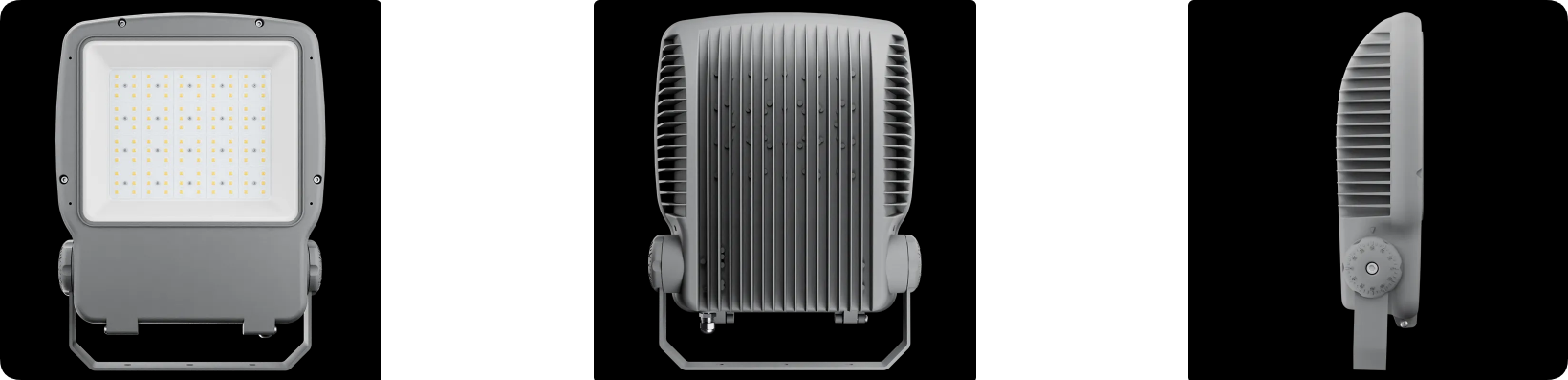

Curved Finned Heatsink & 3-View Geometry
The rear housing features dense curved longitudinal cooling fins that establish continuous convective airflow, rapidly dissipating heat from high-power SMD LED arrays and protecting internal electrical drivers.
- Aerodynamic cooling ribs prevent dust, debris, and rainwater pooling on elevated mounts.
- Built-in 10kV / 20kV surge protection device (SPD) safeguarding against high-voltage spikes.
- Operating temperature rating from -40°C to +50°C across extreme climatic conditions.

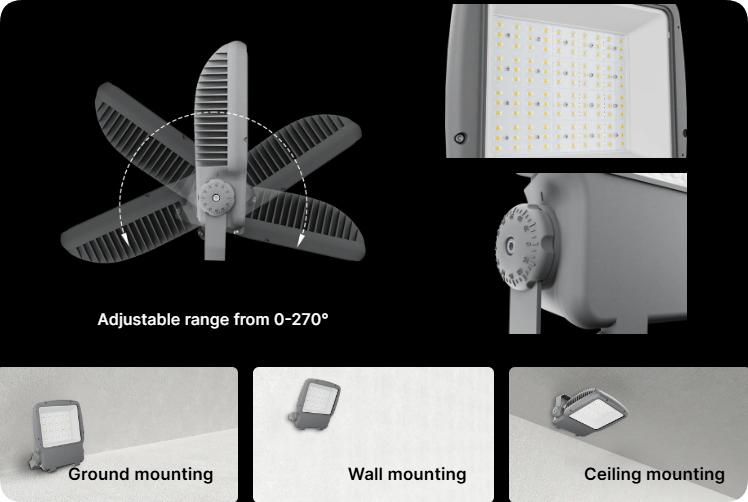

0–270° Calibrated Gear-Locking Bracket & Multi-Mounting
Equipped with a heavy-duty steel U-bracket featuring a laser-etched degree dial and robust side locking bolts. Enables firm, non-slip multi-surface positioning across a wide 0° to 270° range:
- Wall Mounting: Ideal for building perimeters, commercial facades, and loading docks.
- Ground Mounting: Perfect for architectural monuments, signage, and landscape uplighting.
- Ceiling Mounting: Suitable for indoor arenas, canopy roofs, and warehouse eaves.
High-Mast Platform Cluster Integration
Engineered for multi-luminaire cluster mounting on standard 10m to 25m sports poles and high-mast crossarms, providing uniform, broad illuminance across municipal athletic grounds, parking complexes, and commercial plazas.
- Rigid die-cast mounting interface eliminates optical aiming drift under heavy winds.
- Aerodynamic curved profile minimizes wind drag on elevated high-mast towers.
- Backed by a comprehensive 5-year commercial factory warranty.
Recommended Commercial & Industrial Applications
Heavy-duty deep-recessed photometric configurations engineered for industrial plants, logistics hubs, sports courts, and parking facilities.
Industrial Plants & Yards
Durable IP66/IK09 die-cast enclosure resisting airborne corrosive chemicals, industrial oil dust, and mechanical vibrations.
Parking Lots & Logistics
Wide 120° beam spread providing high-contrast, uniform ground lux across expansive cargo handling and parking complexes.
Sports Courts & Arenas
High-power 300W–400W models delivering glare-free, uniform light across community athletic fields and stadium perimeters.
Docks & Construction Sites
Corrosion-resistant multi-stage powder coating withstanding severe offshore salt mist, tropical rainstorms, and crane vibrations.
Need Commercial Floodlight Dialux Simulations, IES Files, or Project Quotations?
Provide your area dimensions, mounting height, and target lux level. Our engineering team delivers full photometric simulations and pricing within 24 hours.
