Multi-Purpose Heavy-Duty LED Flood & High Mast Luminaire
Industrial-grade multi-functional luminaire engineered for athletic fields, baseball parks, highway tunnels, roadway slip-fitter poles, and architectural facades. Features a 4-in-1 modular mounting hardware ecosystem delivering up to 140 lm/W with 5050 LED arrays, an integrated spirit level bubble, calibrated 0–180° trunnion dial, and IP66/IK10 heavy-duty weatherproofing.
Engineering & Multi-Application Advantages
4-in-1 interchangeable mounting ecosystem, 5050 optical matrix, built-in spirit level, and calibrated angle dial.

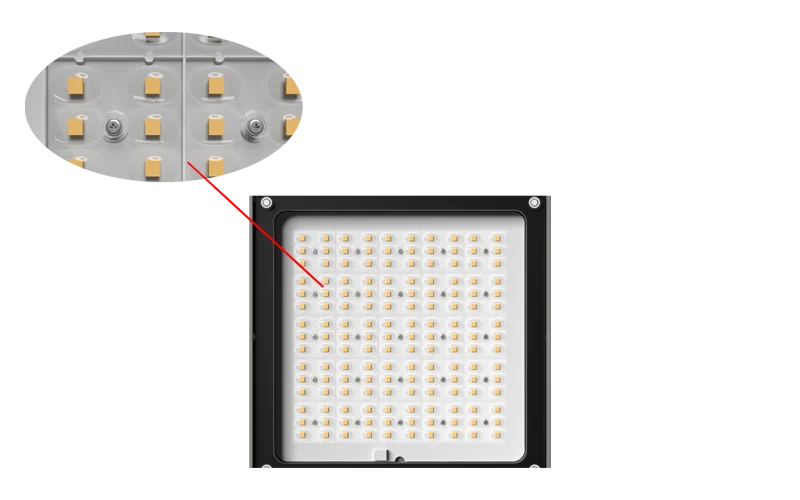

5050 High-Lumen Optical Matrix (≥140 lm/W)
Utilizes high-output 5050 LED arrays paired with precision PC optical lenses (30°, 60°, 90°, 120° and Type II/III roadway profiles). Delivers crisp, uniform illumination across sports fields, facades, and industrial transit zones.
- High color rendering (CRI > 70 / 80 / 90 optional) for clear nighttime contrast.
- Available in 2700K to 6500K CCT and dynamic RGB color-changing systems.
- UV-stabilized tempered optical faceplate resistant to thermal and mechanical shock.

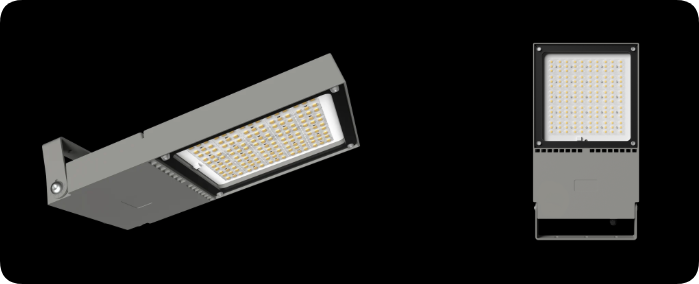

Dual-Angle Profile & Heavy-Duty Die-Cast Frame
Constructed with high-pressure ADC12 die-cast aluminum in a streamlined rectangular housing that minimizes wind drag at elevated heights while providing superior mechanical rigidity.
- Corrosion-resistant multi-stage outdoor powder coating for harsh industrial environments.
- Continuous silicone gasket ensuring watertight IP66 ingress sealing.
- Supports SOSEN, Mean Well, Inventronics, and Philips 0-10V / DALI / PWM dimming.
Four Scalable Die-Cast Sizes (50W to 400W)
The PE-2088F series provides four engineered enclosure sizes covering complete architectural, roadway, and sports lighting requirements:
- Size 1 (50W / 65W): Compact luminaire for building entryways, perimeter security, and signage.
- Size 2 (100W): Mid-size chassis for parking lanes, municipal pathways, and facade accents.
- Size 3 (200W): High-flux model for regional sports courts, logistics hubs, and industrial yards.
- Size 4 (300W / 400W): Heavy-duty workhorse for athletic fields, baseball parks, and high-mast aprons.

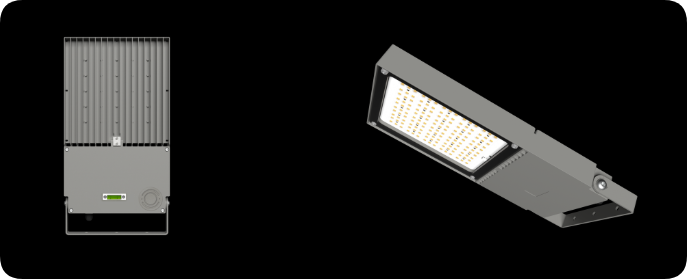

Convective Heatsink & Isolated Driver Compartment
The rear housing features dense longitudinal cooling fins that establish continuous vertical convective airflow, rapidly dissipating heat from 5050 LED arrays and protecting internal electrical drivers.
- Isolated thermal chamber prevents mutual heat transfer between LEDs and drivers.
- Bottom-mounted microwave motion sensor option for presence-based energy savings.
- Operating temperature rating from -40°C to +50°C across extreme climatic conditions.
Built-in Spirit Level Bubble & Calibrated Angle Dial
Engineered for precision field installation with an integrated mechanical spirit level bubble on the driver housing, allowing electricians to quickly level fixtures without specialized tools.
- Laser-etched mechanical degree markings for precision Dialux photometric aiming.
- Standard NEMA / Zhaga twist-lock receptacle for dusk-to-dawn photocell automation.
- Built-in 10kV / 20kV surge protection device (SPD) safeguarding against high-voltage surges.
0–180° Multi-Angle Mounting (Wall / Ground / Ceiling)
The heavy-duty steel mounting bracket rotates smoothly across a complete 0° to 180° range, allowing precise forward, downward, and upward architectural aiming across diverse structural mountings.
- Wall Mounting: Ideal for building facades, industrial warehouses, and loading bays.
- Ground Mounting: Uplighting for monumental structures and expansive signage.
- Ceiling Mounting: High-bay indoor arenas, canopies, and tunnel underpasses.

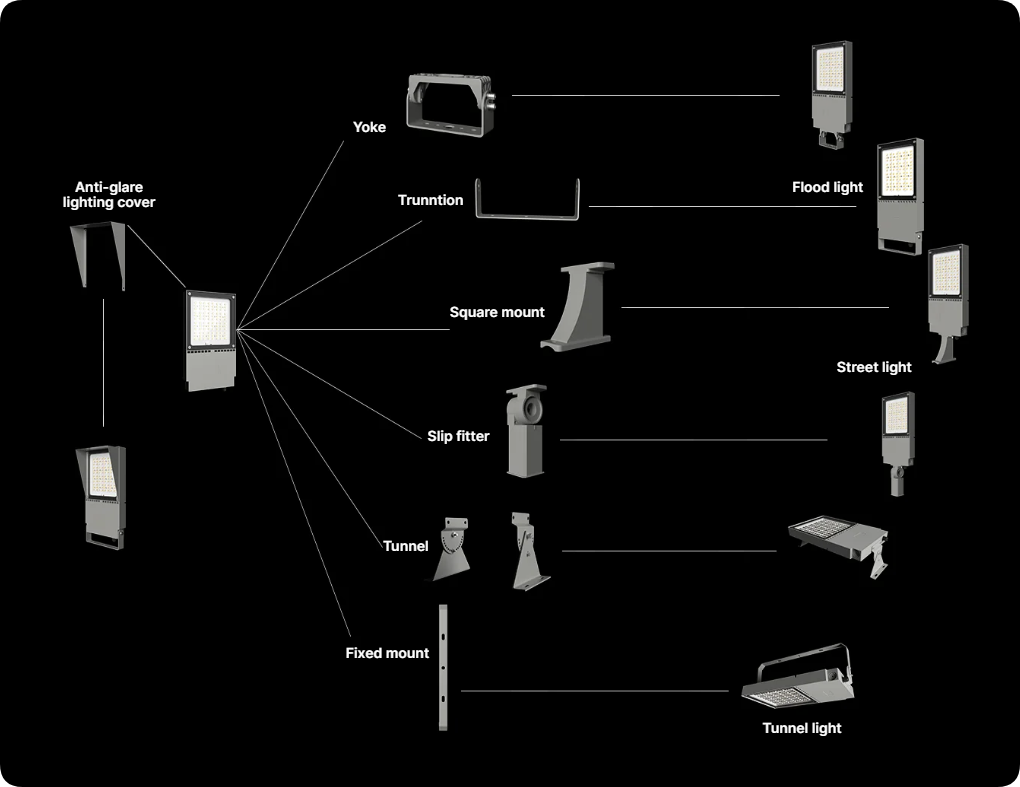

4-in-1 Multi-Purpose Mounting Ecosystem
Features an engineered modular bracket interface allowing rapid transformation across diverse civil and municipal project applications:
- Flood & Spot Mode: Heavy-duty Yoke and Trunnion brackets for facades, signs, and arenas.
- Street Light Mode: Φ60mm Slip-Fitter tenon adapter or Square Pole Mount for roadways and parking lots.
- Tunnel & Gantry Mode: Direct ceiling brackets and side-mount rail hooks for underpasses.
- Anti-Glare Visor Option: Detachable deep hood for precise cutoff and sports glare compliance.
Recommended Multi-Purpose Applications
Heavy-duty 4-in-1 photometric configurations engineered for athletic fields, highway tunnels, roadways, and architectural facades.
Sports Fields & Baseball
High-power 300W–400W configurations delivering uniform, high-contrast lux for community soccer pitches, baseball fields, and athletic complexes.
Highway Tunnels & Underpasses
Rugged tunnel brackets projecting uniform asymmetric road illuminance with IP66 watertight sealing against high-pressure hose-downs.
Parking Lots & Roadways
Φ60mm slip-fitter configuration converting seamlessly into a roadway fixture with Type II/III optical distributions.
Facades & Signage Uplighting
Precision 0–180° trunnion bracket highlighting architectural monuments, commercial billboards, and corporate perimeters.
Need Multi-Purpose Dialux Simulations, IES Files, or Project Quotations?
Provide your installation requirements, mounting configuration, and target lux level. Our engineering team delivers full photometric calculations and pricing within 24 hours.
