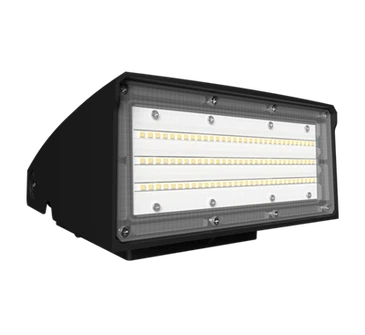

0-90° Adjustable Commercial Outdoor LED Wall Pack Light
High-output directional commercial luminaire engineered for logistics warehouse loading docks, building facades, perimeter walkways, auto service yards, and industrial parking lots. Features a heavy-duty ADC12 die-cast aluminum housing with a calibrated 0° to 90° tilt angle rotation mechanism, multi-row linear strip optical lenses delivering over 140 lm/W across two chassis sizes, dusk-to-dawn photocell support, and IP65/IK08 weatherproofing.
Engineering & Tilt-Adjustment Advantages
Precision 0-90° field-adjustable beam targeting, linear strip optical distribution, split-chassis mounting base, and scalable commercial power tiers.

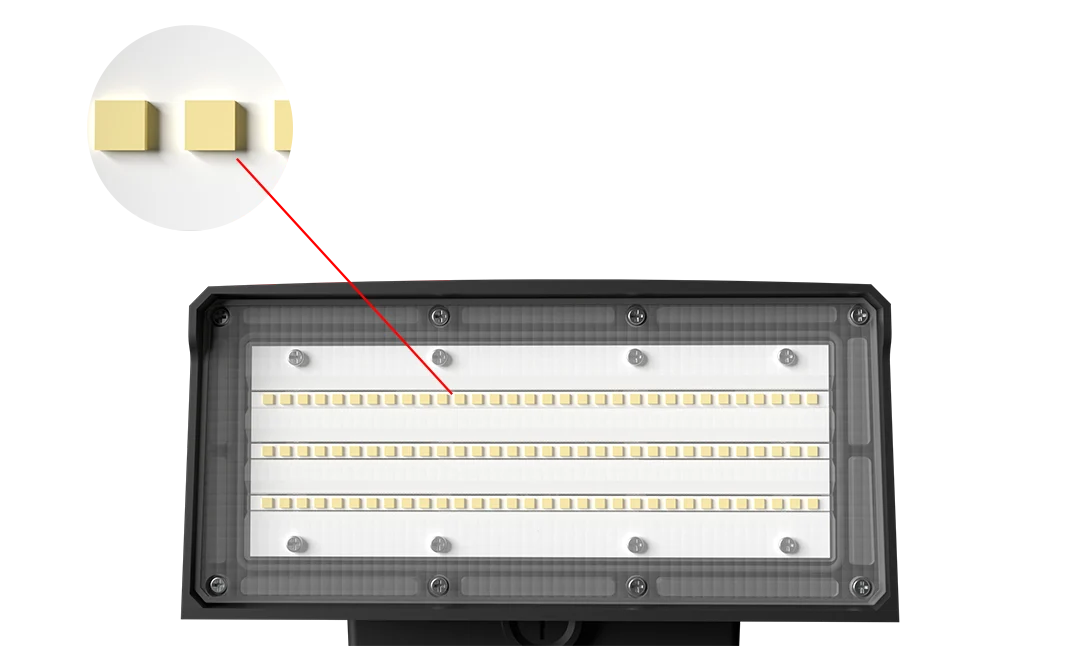

Multi-Row Linear Strip Optical Engine (≥140 lm/W)
Equipped with high-density premium SMD LED arrays paired with precision-molded multi-row linear strip micro-prismatic lenses. Delivers expansive forward-throw flood distribution with smooth beam uniformity and low glare (UGR < 20).
- High color rendering index (CRI > 80) for sharp security camera surveillance clarity.
- Available in 3000K warm white, 4000K natural white, and 5000K commercial daylight.
- UV-stabilized polycarbonate optical faceplate with perimeter silicone gasket sealing.
Die-Cast Aluminum Chassis & 3-View Geometry
Constructed from high-pressure ADC12 die-cast aluminum featuring an integrated upper convective heatsink. The split-backplate housing includes multiple threaded conduit knockouts on the sides and bottom for flexible electrical wiring.
- Multi-stage architectural powder coating providing C5-grade marine anti-corrosion protection.
- Continuous silicone gasket ensuring watertight IP65 ingress protection against driving rain.
- Built-in 10kV surge protection device (SPD) safeguarding internal LED driver and electronics.

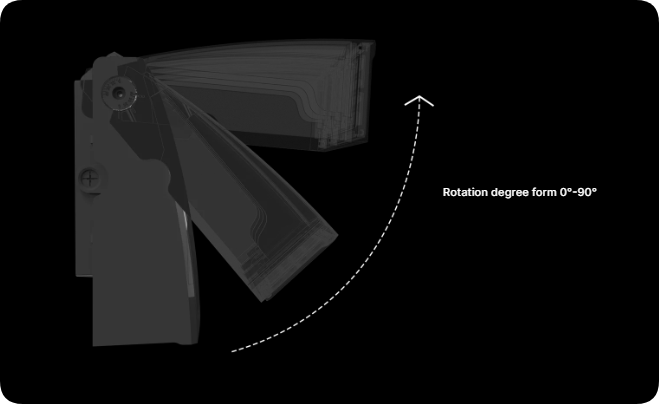

Calibrated 0° to 90° Tilt Angle Rotation Mechanism
Features heavy-duty lateral pivot hinges with laser-etched angle dial markings (0°, 30°, 60°, 90°), allowing electrical contractors to tailor the beam orientation on-site to match project requirements:
- 0° Aiming (Full Cutoff): Downward orientation ensuring 100% Dark Sky compliance and zero light trespass.
- 30° to 45° Aiming: Forward-throw angle ideal for commercial building perimeter paths and vehicle parking bays.
- 60° to 90° Aiming: Wide-area floodlight orientation illuminating truck loading docks and open industrial storage yards.

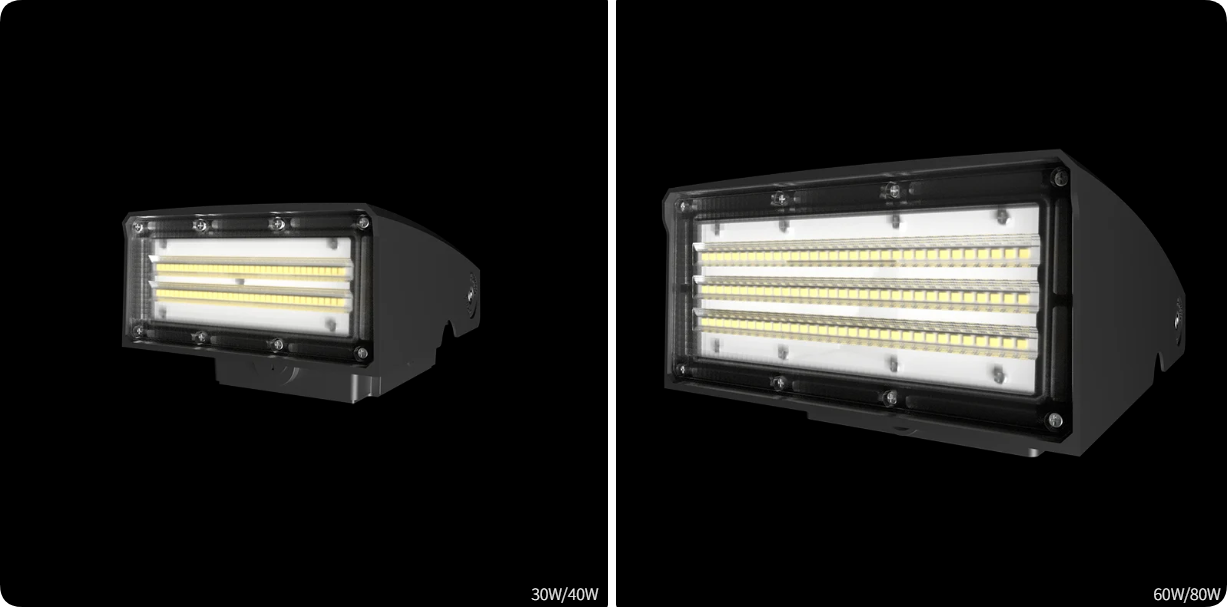

Two Scalable Commercial Housing Formats
The PE-3011 series provides two calibrated enclosure dimensions matching low-level pedestrian walkways and high-output industrial loading bays:
- Compact Enclosure (30W / 40W): Ideal for 3m–4.5m heights along building entrances, pathways, and parking lot corridors.
- High-Flux Enclosure (60W / 80W): High-output model engineered for 4.5m–7m logistics loading docks, auto service bays, and industrial storage yards.

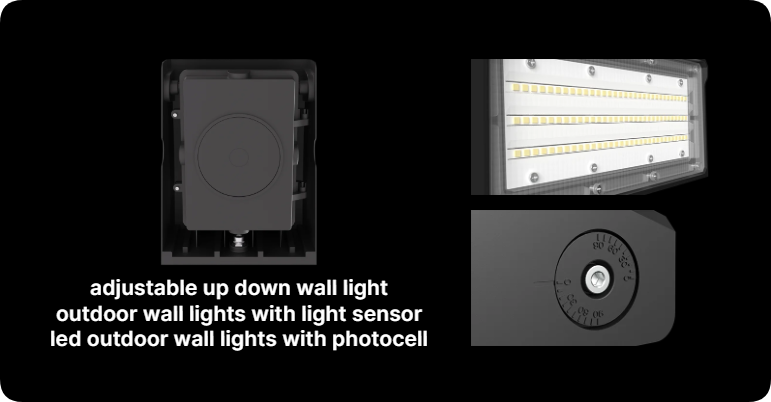

Detachable Baseplate & Photocell Sensor Readiness
Features a detachable rear electrical mounting base that mounts directly over standard junction boxes, with high-torque hex locking bolts ensuring rock-solid vibration-proof positioning.
- Integrated threaded sensor knockout supports automatic dusk-to-dawn photocell operation.
- Smooth 0-10V dimming integration compatible with modern building management systems.
- Backed by a dependable 5-year commercial factory warranty.
Recommended Commercial & Industrial Applications
Adjustable-angle photometric distributions engineered for logistics docks, building perimeters, pathways, and open industrial storage yards.
Logistics Loading Docks
Forward-tilted illumination providing high horizontal foot-candles across active truck bays and logistics staging lanes.
Commercial Building Facades
Full-cutoff downward distribution satisfying strict municipal Dark Sky ordinances while providing crisp ground path visibility.
Perimeter Walkways & Paths
Uniform, wide forward-throw lighting ensuring safe pedestrian transit and high-resolution security camera coverage.
Industrial Yards & Utilities
Wide-area directional floodlighting illuminating open outdoor storage yards, pump stations, and equipment maintenance areas.
Need Adjustable Wall Pack Dialux Simulations, IES Files, or Project Quotations?
Provide your building elevation drawings, mounting heights, and target lux requirements. Our engineering team delivers complete calculations and pricing within 24 hours.
