Modular Commercial LED Road Light
High-efficiency modular roadway luminaire engineered for municipal highways, urban arterials, and expansive logistic centers. Built with independent optical engine rows, high-pressure die-cast aluminum housing, 160–170 lm/W luminous efficacy, Type III roadway distribution, and a clamshell top-opening chamber for fast maintenance.
Engineering & Modular Advantages
Independent optical rows, clamshell top access, and slotted convective heatsink architecture.

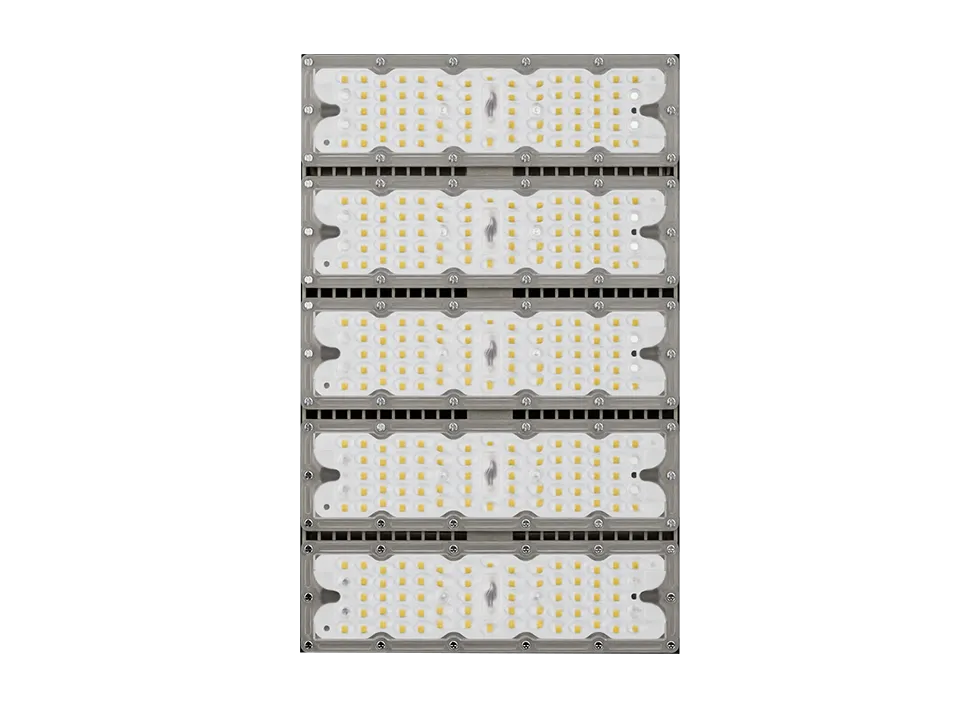

Scalable Modular Optical Engine (160–170 lm/W)
Features 1 to 5 independent optical module rows utilizing high-output LED packages paired with UV-stabilized PC optical lenses, delivering 160–170 lm/W high efficacy while minimizing field maintenance costs.
- Standard Type III batwing beam profile designed for multi-lane roadway illumination.
- Available in 2700K to 6500K CCT with Ra > 70 color rendering index.
- Individual module replacement capability without discarding the complete luminaire.

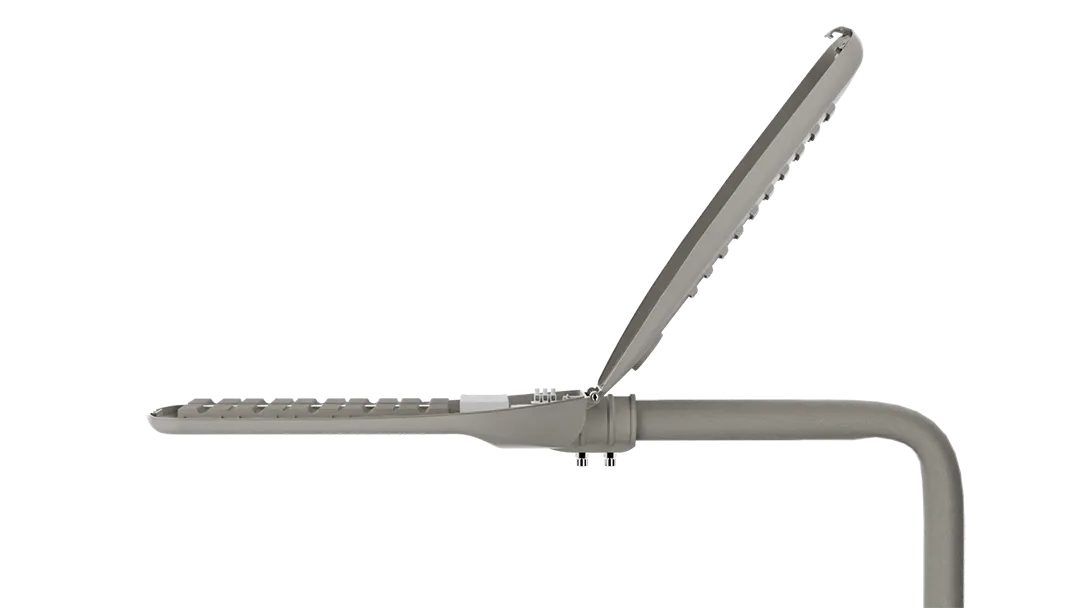

Clamshell Top-Opening Housing for Fast Maintenance
The aerodynamic upper shell pivots open upward on a built-in die-cast axle, providing a wide-angle opening to access the internal driver, terminal block, and SPD without removing the luminaire from the pole arm.
- Upward pivot mechanism ensures safe, comfortable two-handed high-altitude maintenance.
- Direct access to SOSEN / Mean Well constant current driver and surge protective device.
- Stainless steel latching hardware ensuring vibration-proof mechanical locking.

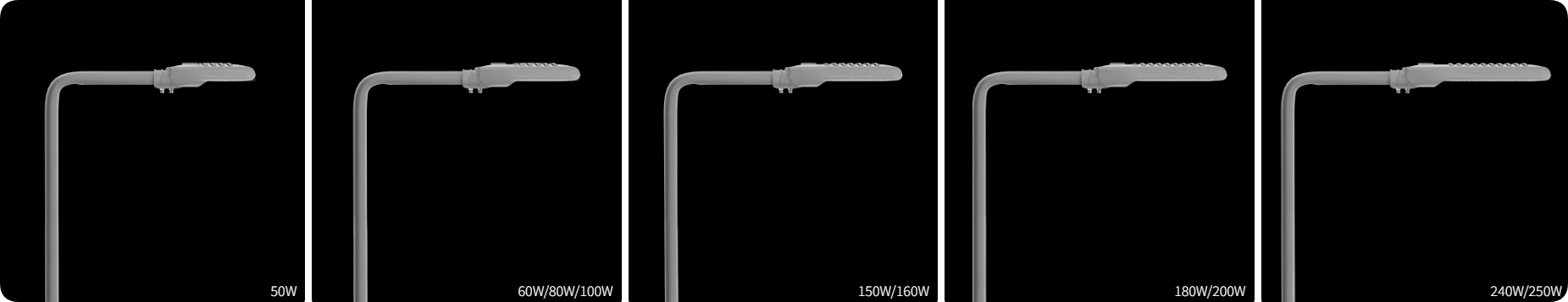

Five Scalable Enclosure Sizes (50W to 250W)
The PE-6028E series offers five distinct die-cast aluminum chassis lengths corresponding to modular row configurations and project road hierarchies:
- Size 1 (1 Module / 50W): 435 × 205 × 105 mm for residential pathways and access lanes.
- Size 2 (2 Modules / 60W–100W): 500 × 245 × 105 mm for urban secondary streets and parking lots.
- Size 3 (3 Modules / 150W–160W): 565 × 285 × 105 mm for municipal boulevards and industrial roads.
- Size 4 (4 Modules / 180W–200W): 630 × 325 × 105 mm for multi-lane avenues and transit routes.
- Size 5 (5 Modules / 240W–250W): 695 × 365 × 105 mm for major highways and multi-lane expressways.

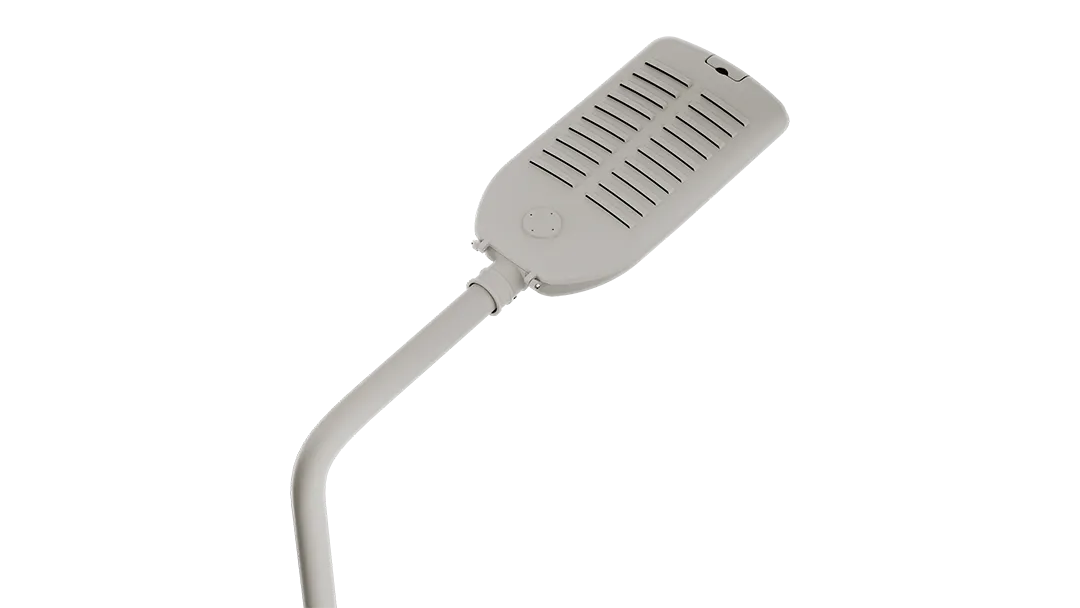

Louvered Convective Heat Sink & Smart Photocell
Engineered with rear convective thermal slots that promote vertical airflow through the modular aluminum heat sink, accelerating heat dissipation and preventing dirt accumulation.
- ADC12 die-cast aluminum construction with anti-corrosion outdoor powder coating.
- Optional top-mounted NEMA/Zhaga photocell receptacle for automated dusk-to-dawn switching.
- Standard 10kV / 20kV surge protection device (SPD) protecting against power line transients.

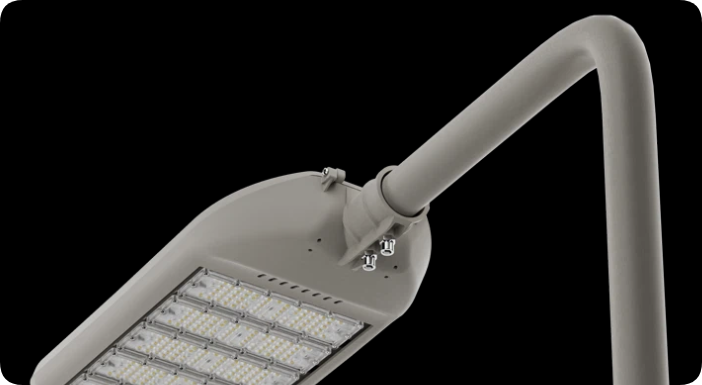

Heavy-Duty Cantilever Arm Mounting
Designed with a reinforced spigot compatible with standard Φ60mm horizontal cantilever street light poles, providing high wind load resistance and structural integrity across all outdoor environments.
- Dual stainless steel set screws ensure firm mechanical lock to the tenon arm.
- Operating temperature range from -40°C to +45°C for all global climate conditions.
- Supported by a comprehensive 5-year commercial factory warranty.
Recommended Road Applications
Modular roadway configurations matching standard municipal pole heights and illumination classes.
Expressways & Highways
High-power 4-module and 5-module configurations (180W–250W) delivering broad Type III forward projection for high-speed multi-lane traffic safety.
Municipal Main Boulevards
Mid-power 3-module models (150W–160W) meeting strict urban roadway illuminance classes with smart 0-10V/DALI municipal dimming.
Commercial & Logistic Hubs
2-module fixtures (80W–100W) providing long-lifespan, low-maintenance perimeter illumination with photocell dusk-to-dawn switching.
Residential & Campus Paths
Single-module units (50W) delivering soft, glare-free downward illumination for village roads, school campuses, and residential avenues.
Need IES Files, Dialux Simulations, or Custom Driver Configurations?
Provide your road profile, pole spacing, and target lux requirement. Our engineering team delivers full photometric reports and project pricing within 24 hours.
