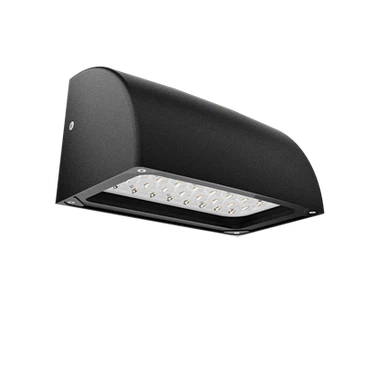

Modern Architectural Full-Cutoff Outdoor LED Wall Pack Light
Precision exterior luminaire engineered for commercial building facades, hotel perimeters, garden pathways, residential entrances, and emergency egress corridors. Features a sleek curved ADC12 die-cast aluminum housing for 100% full-cutoff Dark Sky compliance, high-efficiency 3030 LED lens matrix delivering over 150 lm/W across two chassis sizes, optional 90-minute emergency battery backup, and IP66/IK10 weatherproofing.
Engineering & Architectural Advantages
Downward full-cutoff beam geometry, modular emergency battery integration, heavy-duty die-cast construction, and two calibrated housing formats.
Full-Cutoff Optical Lens Matrix (≥150 lm/W)
Equipped with high-density premium 3030 LED chip arrays paired with downward precision-molded optical lenses. Directs 100% of the light flux strictly downward to eliminate upward sky glow and lateral glare (UGR < 16), ensuring full compliance with international Dark Sky environmental standards.
- High color rendering index (CRI > 80) for vibrant architectural wall washing and nighttime visibility.
- Available in 3000K warm white, 4000K natural white, and 5000K commercial daylight.
- Tempered glass protective faceplate offering high optical clarity and chemical resistance.

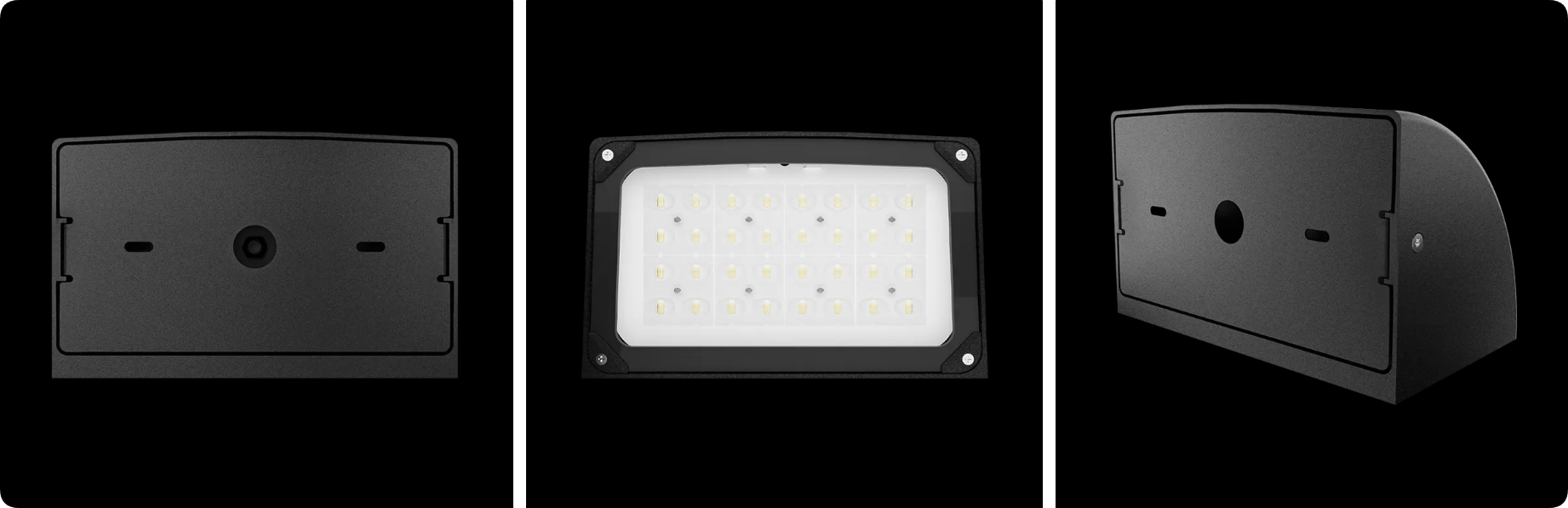

Die-Cast Aluminum Body & 3-View Construction
Constructed with high-pressure ADC12 die-cast aluminum with a seamless curved front visor. The back plate includes multiple standard electrical knockout ports for rapid conduit hookup and seamless flush-to-wall mounting.
- Multi-stage architectural powder coating providing C5-grade anti-corrosion protection.
- Continuous silicone gasket ensuring watertight IP66 ingress protection against driving rain.
- Heavy-duty casing achieves IK10 mechanical impact resistance against physical vandalism.

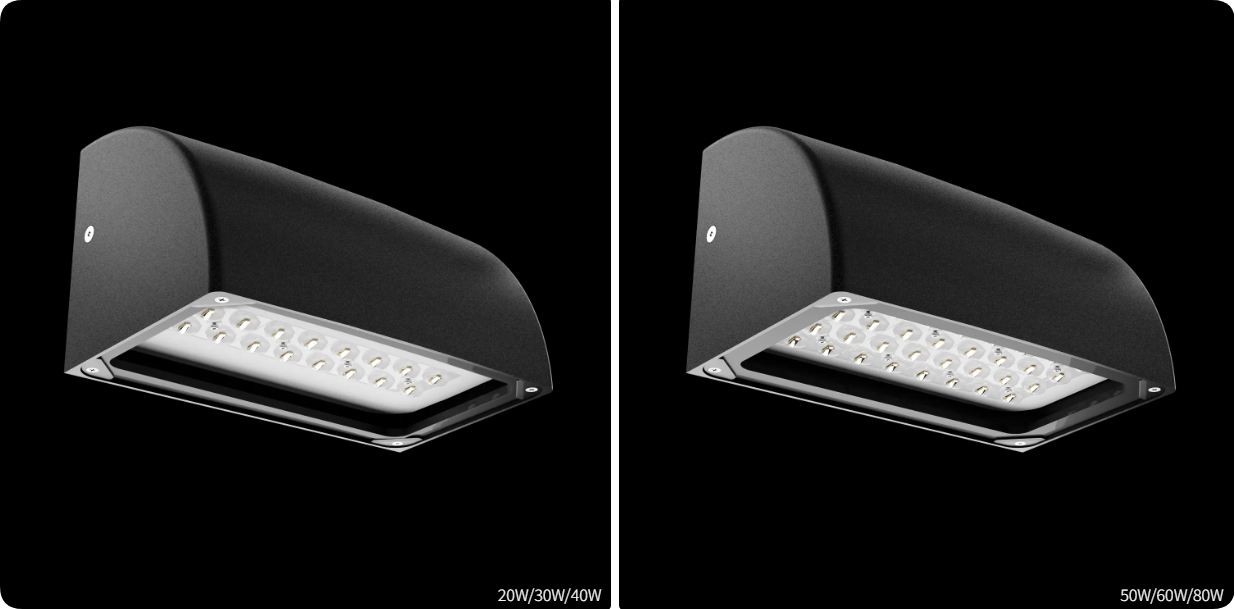

Two Scalable Housing Formats (20W to 80W)
The PE-3014 series provides two proportional housing dimensions matching low-level residential pathways and expansive commercial building perimeters:
- Compact Enclosure (20W / 30W / 40W): Ideal for 2.5m–4m heights along garden walkways, front doors, balconies, and townhouse corridors.
- High-Flux Enclosure (50W / 60W / 80W): High-output model for 4m–7m commercial building perimeters, logistics loading docks, and exterior parking bays.

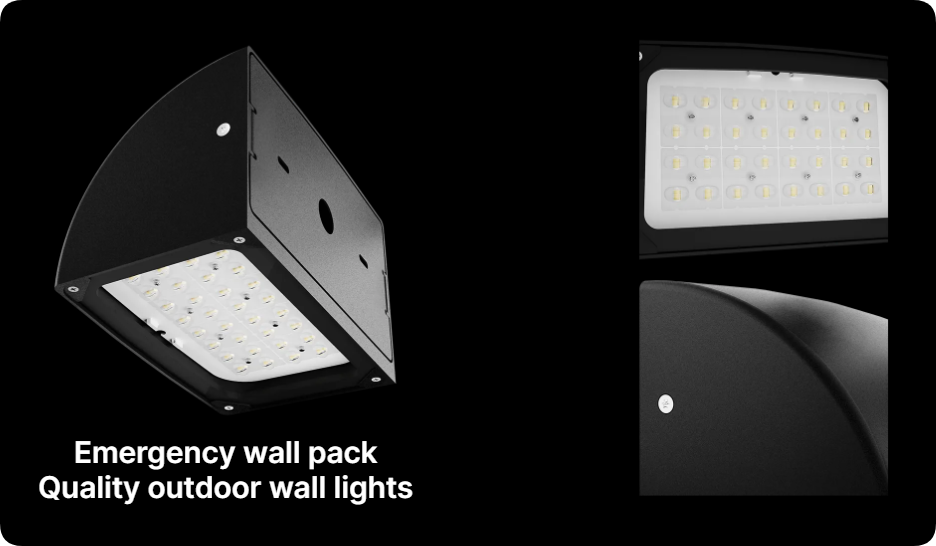

Integrated Emergency Battery & Thermal Engineering
Features an isolated internal chamber supporting a 90-minute high-temperature emergency battery pack. During grid failure, the fixture instantly switches to battery mode to maintain code-compliant egress illumination along perimeter exit paths.
- Built-in test switch and LED status indicator for routine building code verification.
- Supports 0-10V smooth dimming and dusk-to-dawn photocell sensor automation.
- Integrated 10kV surge protection device (SPD) safeguarding internal electronics.
Flush Wall-Mounted Architectural Aesthetics
The minimalist curved quarter-circle geometry blends cleanly into modern architectural facades. The smooth exterior prevents bird nesting and rainwater buildup while shielding passersby from direct glare.
- Direct thermal conduction through the rear aluminum chassis for passive heat dissipation.
- Low maintenance design backed by a 50,000-hour rated operating lifespan.
- Wide operating temperature range from -30°C to +50°C.
Recommended Exterior Applications
Full-cutoff architectural photometric distributions engineered for commercial facades, hotel pathways, parking perimeters, and emergency egress corridors.
Commercial Building Facades
Clean full-cutoff aesthetic providing uniform ground illumination while accentuating modern exterior architectural textures.
Perimeter Security & Docks
High-intensity 80W output delivering wide downward coverage for CCTV surveillance clarity and nighttime vehicle maneuvering.
Hotel & Residential Pathways
Soft, low-glare visual comfort eliminating direct eye glare for pedestrian walkways, balconies, patios, and courtyard perimeters.
Emergency Egress Corridors
Integrated 90-minute emergency battery backup ensuring code-compliant emergency illumination during grid power loss.
Need Architectural Wall Pack Dialux Simulations, IES Files, or Project Quotations?
Provide your building elevation drawings, mounting heights, and target lux requirements. Our engineering team delivers complete calculations and pricing within 24 hours.
