Visor Modular LED Stadium & Sports Light
High-output modular high-mast floodlight engineered for FIFA-standard soccer arenas, baseball complexes, seaport container terminals, and airport aprons. Featuring tiered modular chassis delivering ≥150 lm/W system efficacy, deep 4-side anti-glare visors (UGR < 19), independent convective heatsinks, and calibrated 0–180° gear-locking brackets.
Engineering & Glare-Control Advantages
Deep anti-glare visor, high-flux tiered modular matrix, and multi-hole gear-locking bracket.
High-Lumen Optical Lens Array (≥150 lm/W)
Each independent tier incorporates dense high-power LED arrays paired with UV-stabilized PC optical lens panels (15° / 30° / 60° / 90°). Guarantees uniform ground lux distribution, high vertical illuminance for tracking fast-moving balls, and zero camera flicker during 4K HDTV sports broadcasts.
- High color rendering index (CRI > 70 / 80 / 90 optional) for tournament color accuracy.
- Low optical decay ensuring consistent tournament-level lumen maintenance over years.
- Custom symmetrical and asymmetrical sports photometric profiles.
Integrated Deep Visor & Tournament Glare Control
Features an integrated die-cast aluminum 4-side hood that envelopes the modular tiers, sharply cutting off high-angle stray light, preventing glare for athletes and spectators while meeting strict international HDTV tournament standards (UGR < 19).
- Eliminates upward light spill and light trespass into surrounding residential communities.
- High-pressure ADC12 die-cast housing with multi-stage outdoor powder coating.
- Shields the optical faceplates from direct rain, hail, and airborne debris impact.

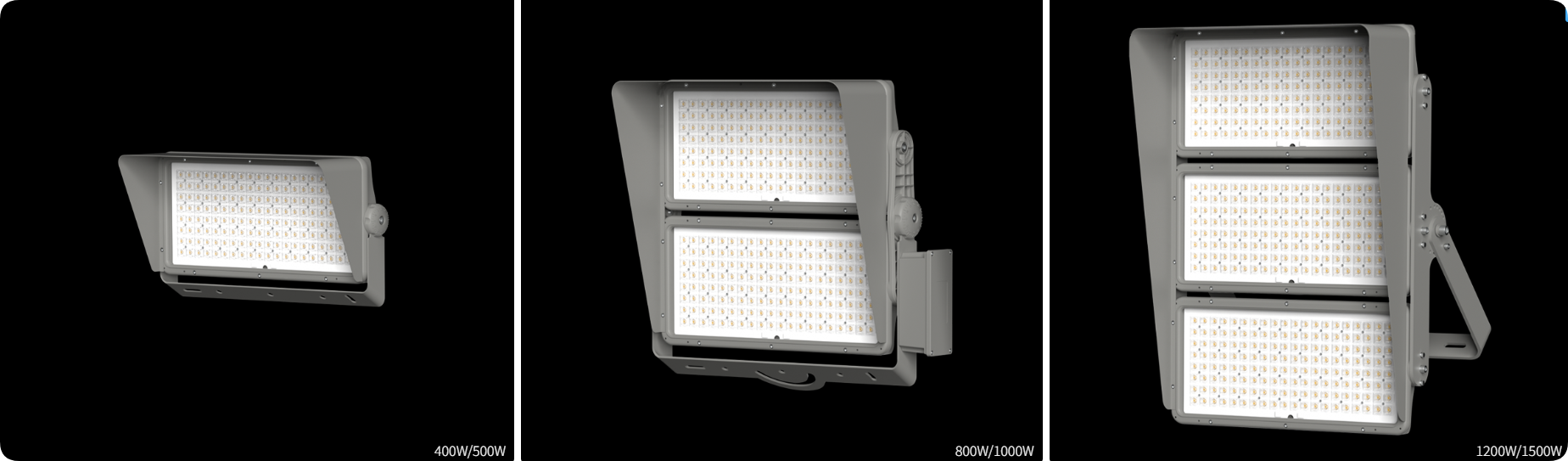

Three Scalable Die-Cast Sizes (400W to 1500W)
The PE-2086 series provides three engineered chassis configurations tailored for stadium towers and arena poles:
- Size 1 (1 Tier / 400W–500W): Single-tier compact unit for tennis complexes, basketball courts, and training grounds.
- Size 2 (2 Tiers / 800W–1000W): Dual-tier unit delivering balanced high-mast illumination for baseball stadiums and municipal soccer fields.
- Size 3 (3 Tiers / 1200W–1500W): Triple-tier ultra-high-output flagship delivering maximum lumen punch for championship arenas, airport aprons, and container terminals.
Independent Tier Finned Heatsink & Thermal Channels
Each modular tier features independent convective cooling ribs and a sealed driver housing, creating continuous vertical airflow channels that conduct heat away from high-power LED junctions and electronic components.
- Isolated thermal chambers prevent heat accumulation across stacked tiers.
- Enables easy module-level servicing without taking down the entire luminaire.
- Operating temperature rating from -40°C to +50°C for global multi-climate reliability.

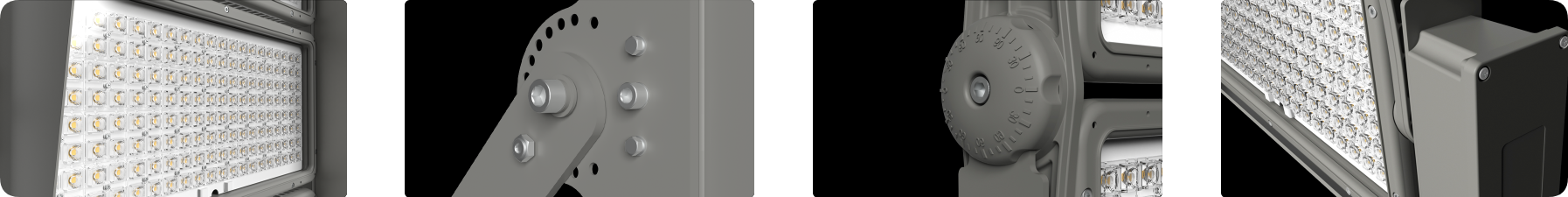

Multi-Hole Gear-Locking U-Bracket
Equipped with a heavy-duty steel mounting bracket featuring calibrated multi-hole positioning pins and locking bolts, ensuring rock-solid angle stability under extreme 17-grade hurricane winds without optical aiming drift.
- Mechanical angle scale allows electricians to accurately lock target aiming angles on site.
- High-strength stainless steel fasteners resist severe offshore vibrations and wind shear.
- Built-in 10kV / 20kV surge protection device (SPD) safeguarding against high-voltage spikes.
0–180° Multi-Angle Mounting (High-Mast / Ground / Wall)
The heavy-duty U-bracket rotates smoothly across a complete 0° to 180° range, allowing precise forward, downward, and upward architectural aiming across diverse structural mountings.
- High-Mast Pole Mounting: Crossarm installation for sports stadiums, ports, and rail yards.
- Ground Mounting: Uplighting for monumental structures and expansive facade illumination.
- Wall / Ceiling Mounting: High-bay indoor arenas, sports halls, and warehouse gantries.

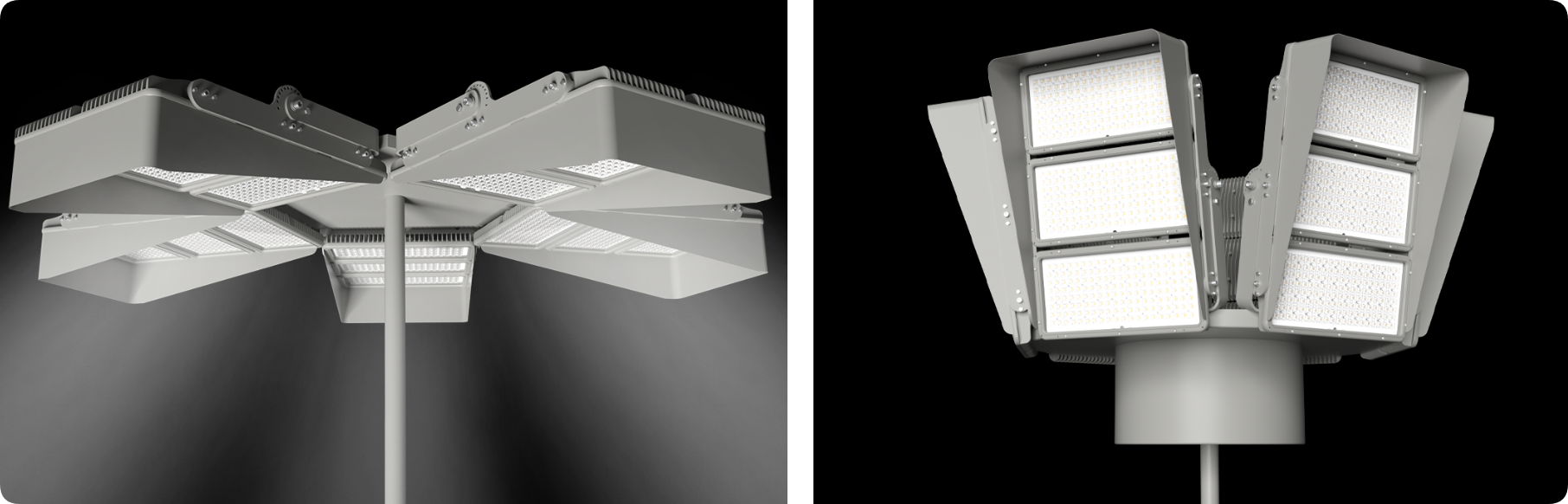

High-Mast Platform Cluster Integration
Engineered for seamless multi-luminaire cluster mounting on standard 18m to 35m high-mast headframes, crossarms, and circular lowering rings, providing high-density uniform field illuminance across sprawling industrial yards and sports arenas.
- Compatible with lowering device rings and fixed high-mast platform crossarms.
- Supports SOSEN, Mean Well, Inventronics, and Philips DALI / 0-10V / DMX control.
- Optional RGB color-changing dynamic lighting for stadium architectural entertainment.
Recommended High-Power Applications
Heavy-duty visor modular photometric configurations engineered for athletic stadiums, baseball arenas, and container freight hubs.
Football & Soccer Arenas
High-power 1200W–1500W configurations delivering uniform, shadow-free turf illumination meeting international tournament broadcasting standards.
Baseball & Cricket Grounds
Long-throw narrow/medium optical distribution delivering high vertical lux for tracking high-speed balls against dark night skies.
Tennis & Basketball Courts
Mid-power models (400W–800W) providing glare-free, high-uniformity court illumination with flexible U-bracket aiming.
Ports & Container Yards
Corrosion-resistant IP66/IK09 modular unibody resisting heavy winds, industrial vibrations, and continuous 24/7 terminal operations.
Need Stadium Dialux Simulations, IES Photometrics, or High-Mast Quotations?
Provide your field dimensions, target lux level, and pole height. Our sports lighting engineers provide comprehensive photometric calculations and commercial proposals within 24 hours.
