Eyelid Shield Round Outdoor LED Bulkhead Wall Light
Modern anti-glare circular luminaire engineered for contemporary building facades, apartment balconies, perimeter pathways, industrial staircases, covered walkways, and garden perimeters. Features a heavy-duty ADC12 die-cast aluminum housing with a cast eyelid half-visor for downward beam shielding, high-density SMD LED matrix delivering over 120 lm/W across three housing sizes, optional built-in microwave/PIR motion sensor, 90-minute emergency battery backup support, and IP65/IK08 weatherproofing.
Engineering & Architectural Advantages
Anti-glare downward eyelid visor geometry, high-density semi-circular SMD matrix, intelligent motion sensing, and three scalable housing dimensions.
Semi-Circular High-Density SMD Matrix (≥120 lm/W)
Equipped with a custom semi-circular aluminum core PCB populated with high-efficiency SMD LED chips. The lower hemisphere orientation maximizes downward ground illumination while completely eliminating direct upward eye glare (UGR < 16).
- High color rendering index (CRI > 80) for clear architectural masonry rendering and security visibility.
- Available in 3000K warm white, 4000K natural white, and 6000K daylight.
- Direct thermal coupling to the die-cast backplate ensures low junction temperatures and 50,000-hour longevity.

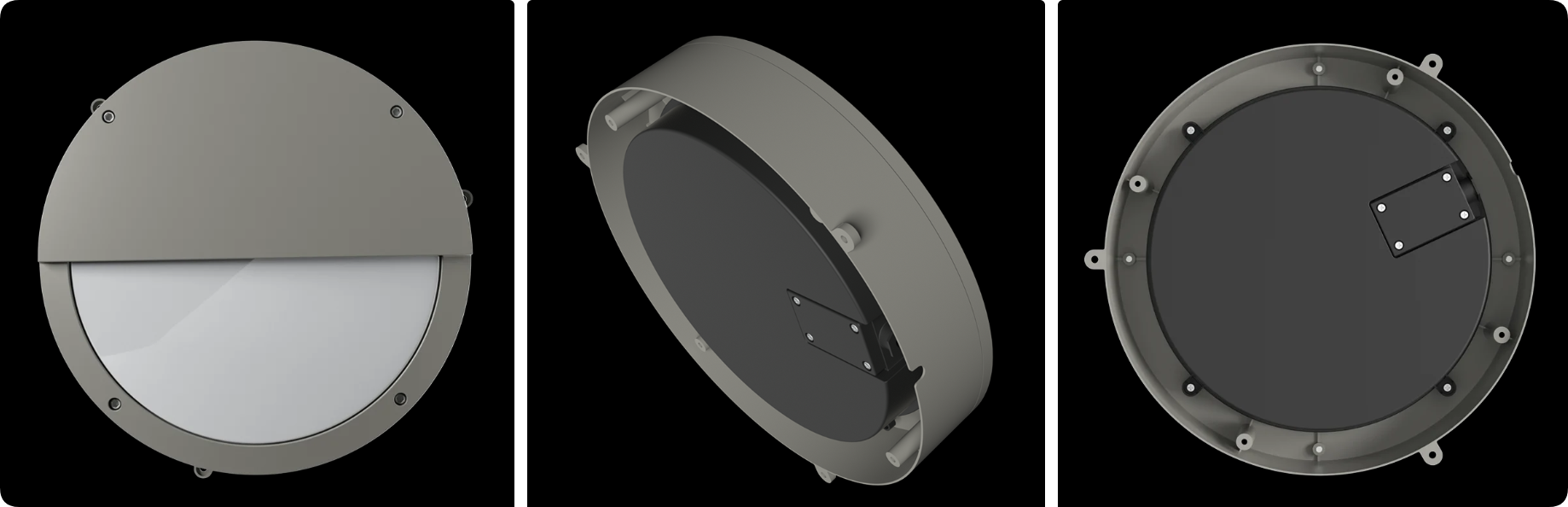

Die-Cast Aluminum Body & 3-View Geometry
Constructed from high-pressure ADC12 die-cast aluminum with a seamless circular housing and integrated upper eyelid visor. The flat rear casing features a sealed electrical terminal compartment with universal mounting slots for wall or ceiling installations.
- Multi-stage architectural powder coating providing C5-grade marine anti-corrosion protection.
- Continuous silicone perimeter gasket ensuring watertight IP65 ingress protection against driving rain.
- Built-in surge protection device (SPD) safeguarding internal LED driver and electronics.
Three Scalable Housing Dimensions (10W to 30W)
The PE-3062H series provides three calibrated housing diameters matching low-level residential pathways and expansive commercial building perimeters:
- 10W Enclosure: Compact, low-power format ideal for residential balconies, porch pillars, and doorway entries.
- 20W Enclosure: Balanced commercial format for apartment corridors, exterior stairwells, and perimeter paths.
- 30W High-Lumen Enclosure: High-output model engineered for commercial building perimeter facades, public plazas, and parking areas.
Slim Profile & Anti-Glare Downward Eyelid Visor
The integrated upper cast-aluminum visor completely shields the upper hemisphere, directing 100% of the luminous flux downward. Eliminates light trespass and glare while providing smooth, wide path illumination through an impact-resistant frosted opal diffuser.
- UV-stabilized polycarbonate diffuser dome prevents yellowing and cracking under direct sunlight.
- Low-profile surface mounting depth minimizes walkway obstruction.
- Operating temperature rating from -25°C to +45°C across diverse climatic zones.
Intelligent Sensing & Emergency Battery Details
Features an isolated internal chamber supporting an integrated microwave or PIR motion sensor for automated step-dimming, along with an optional 90-minute emergency battery pack for code-compliant egress illumination.
- Smart motion sensing ramps from energy-saving standby dimming to 100% brightness upon motion detection.
- Rear sealed cable knockout ports simplify direct junction box mounting and wiring.
- Backed by a dependable 3-year commercial factory warranty.
Recommended Architectural Applications
Anti-glare downward photometric distributions engineered for apartment balconies, perimeter pathways, stairwells, and garden walls.
Apartment Balconies & Paths
Soft downward ambient illumination providing safe pedestrian passage without shining light into residential windows.
Building Entrances & Gates
Motion-sensing automation instantly brightening the doorway when visitors approach while saving standby energy.
Industrial Staircases & Corridors
Durable IP65/IK08 die-cast enclosure resisting physical impacts, cleaning washdowns, and high-frequency foot traffic.
Garden Walls & Courtyards
Minimalist circular silhouette blending seamlessly into modern landscape masonry and exterior architectural textures.
Need Eyelid Bulkhead Dialux Planning, IES Files, or Project Quotations?
Provide your building layout drawings, mounting heights, and target lux requirements. Our engineering team delivers complete calculations and pricing within 24 hours.
