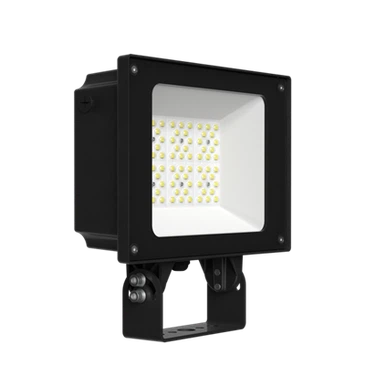

Multi-Purpose Architectural LED Flood, Spot & Area Luminaire
Modular multi-functional luminaire engineered for commercial building perimeters, logistics loading docks, municipal roadways, architectural facades, and sports training grounds. Features high-output CREE SMD 3030 / COB optical arrays delivering up to 140 lm/W, a heavy-duty dual-bolt 0–180° locking yoke bracket, a 4-in-1 interchangeable mounting ecosystem (Flood/Spot/Street/Visor), and IP65/IK08 weatherproofing.
Engineering & Modular Advantages
CREE SMD 3030 / COB optical engine, 4-in-1 multi-mounting hardware ecosystem, and dual-bolt locking yoke bracket.
CREE SMD 3030 & COB Optical Engine (≥140 lm/W)
Offers tailored optical configurations: dense CREE 3030 SMD matrices for wide 120° diffuse illumination, or high-intensity CREE COB packages with deep parabolic reflectors for long-distance spot targeting. Delivers uniform beam distribution without center glare or multi-shadow artifacts.
- High color rendering index (CRI > 70 / 80 optional) for crisp nighttime visual clarity.
- Available from 3000K warm white to 6500K daylight color temperatures.
- High optical transmittance tempered glass faceplate offering superior thermal and impact resistance.
Heavy-Duty Die-Cast Box Frame & Dual Perspectives
Constructed with high-pressure ADC12 die-cast aluminum in a rugged box chassis that withstands severe mechanical vibration and harsh weather conditions across commercial perimeters.
- Multi-stage outdoor powder coating providing C5-grade anti-corrosion protection.
- Continuous silicone gasket ensuring watertight IP65 ingress protection against heavy rains.
- Compatible with SOSEN, Mean Well, Inventronics, and Philips 0-10V / DALI / PWM dimming.

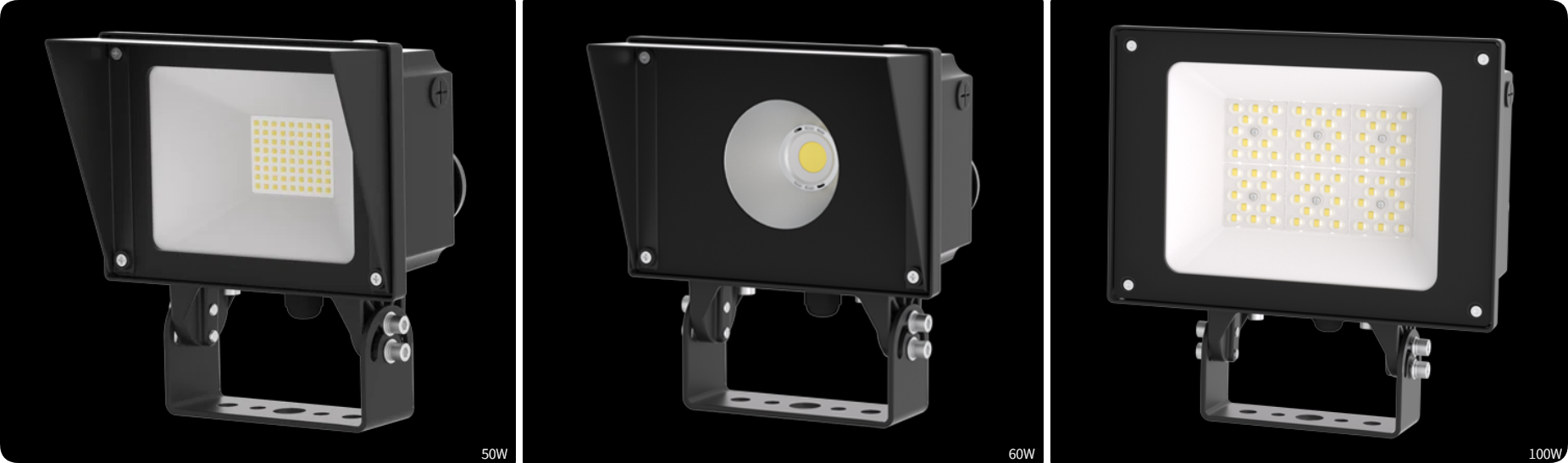

Three Scalable Chassis Configurations (50W to 100W)
The PE-2089B series provides three project-specific die-cast housing designs matching diverse architectural and civil lighting scales:
- Size 1 (50W SMD Visor Model): Storefront facades, perimeter security, and outdoor walkways.
- Size 2 (60W COB Spot Visor Model): Architectural columns, monumental statues, and sign targeting.
- Size 3 (100W / 120W High-Flux SMD Model): Commercial facades, freight terminals, parking lots, and sports perimeters.

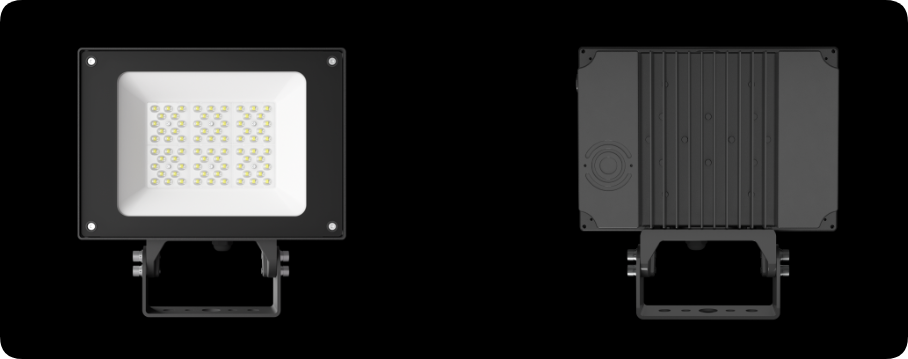

Convective Thermal Heatsink & 3-View Geometry
The rear housing features dense vertical cooling ribs that establish continuous convective airflow, rapidly conducting heat away from internal LED arrays and drivers to preserve long-term lumen maintenance.
- Direct thermal conduction through heavy-duty aluminum backplate.
- Built-in 6kV / 10kV surge protection device (SPD) safeguarding against line voltage spikes.
- Operating temperature rating from -30°C to +50°C across extreme climatic conditions.

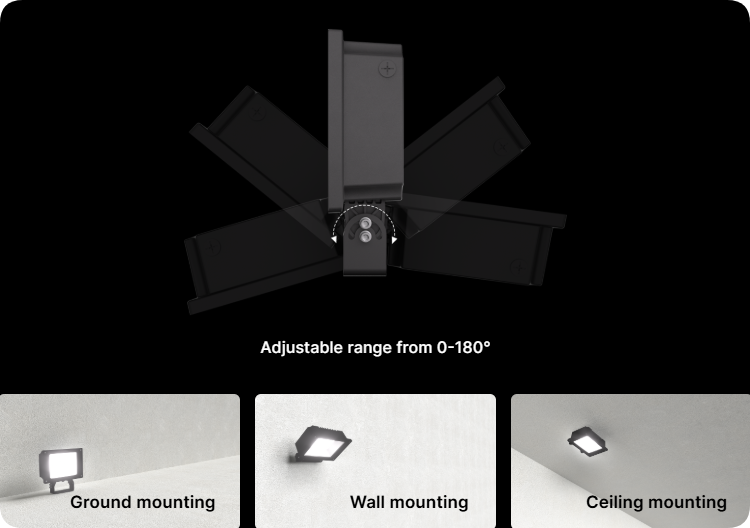

Dual-Bolt 0–180° Locking Yoke & Multi-Mounting
Equipped with high-torque dual stainless steel hex locking bolts riding on a curved alignment track. Provides exceptional mechanical clamping force, eliminating aiming slip under heavy wind loads and high-vibration gantry installations:
- Wall Mounting: Ideal for building perimeters, commercial facades, and loading docks.
- Ground Mounting: Perfect for architectural monument uplighting and landscape billboards.
- Ceiling Mounting: Suitable for canopies, covered transit walkways, and warehouse eaves.

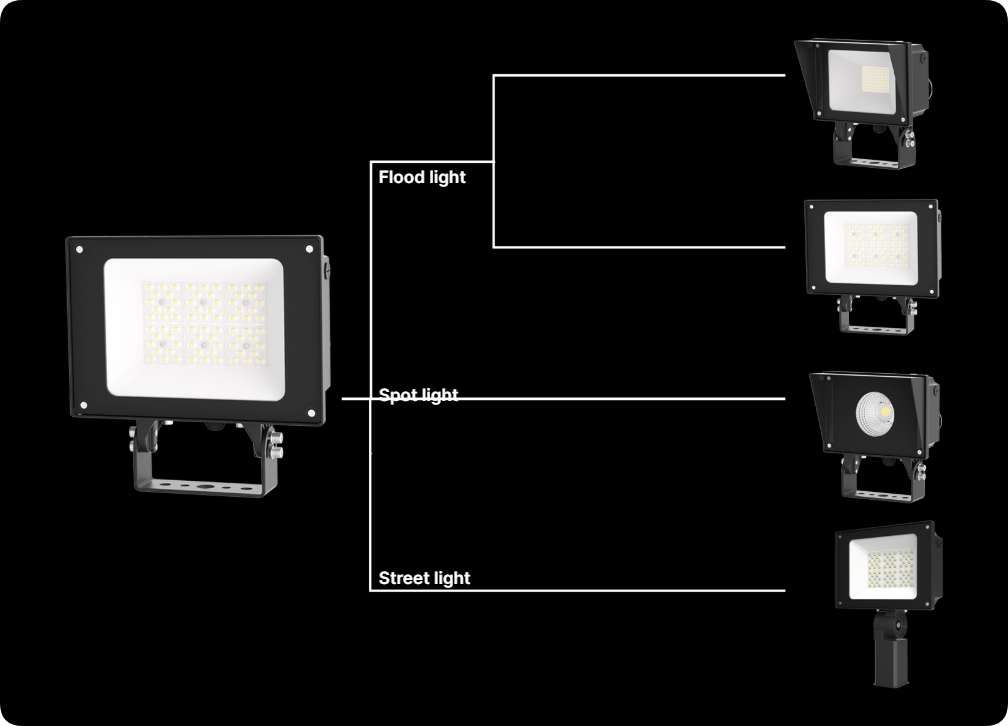

4-in-1 Multi-Purpose Lighting Ecosystem
Features an engineered modular chassis allowing rapid field transformation across diverse civil and architectural applications:
- Floodlight Mode: Wide-throw diffuse illumination for building walls, loading bays, and yards.
- Anti-Glare Visor Mode: Integrated deep hood for zero-uplight dark-sky compliance.
- Spotlight Mode: High-punch COB optics for long-throw facade and architectural monument accents.
- Street / Area Light Mode: Φ60mm Slip-Fitter tenon adapter converting fixture for roadway and parking lot poles.

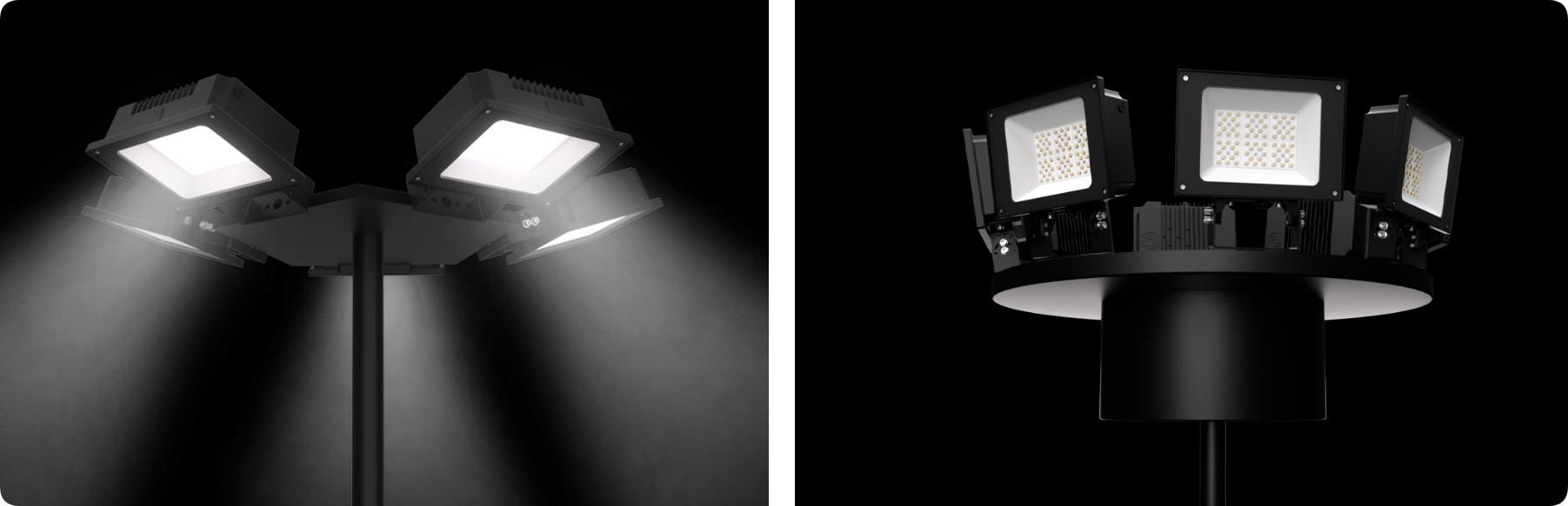

High-Mast Platform Cluster Integration
Engineered for multi-luminaire cluster mounting on standard 8m to 20m sports poles and high-mast crossarms, delivering high-density uniform field illuminance across municipal athletic grounds, parking complexes, and commercial plazas.
- Rigid dual-bolt mounting interface eliminates optical aiming drift under heavy storms.
- Heavy-duty box profile provides high torsional and structural stability.
- Backed by a comprehensive 5-year commercial factory warranty.
Recommended Multi-Purpose Applications
4-in-1 modular photometric configurations engineered for commercial facades, roadways, parking lots, and architectural accents.
Commercial Facades & Billboards
Wide 120° beam distribution and anti-glare visor highlighting commercial signage and corporate entrances without glare spill.
Parking Lots & Roadways
Φ60mm tenon adapter converting seamlessly into an area street luminaire for parking lanes and access streets.
Monuments & Accent Columns
Punchy parabolic COB optics projecting intense accent beams on tall columns, structural statues, and corporate logos.
Logistics Bays & Security Yards
Durable IP65/IK08 die-cast enclosure delivering reliable dusk-to-dawn security illumination with optional photocell automation.
Need Multi-Purpose Dialux Simulations, IES Photometrics, or Project Quotations?
Provide your area dimensions, mounting configuration, and target lux level. Our engineering team delivers full photometric calculations and pricing within 24 hours.
