DOB Driver-on-Board LED Street Light
Cost-effective AC roadway luminaire engineered for residential avenues, industrial perimeter roads, and rural village infrastructure. Powered by solid-state Driver-on-Board (DOB) Linear IC technology to eliminate external driver failure points, delivering 100 lm/W optical efficacy with ultra-slim ADC12 die-cast aluminum housing.
Engineering & Performance Advantages
Solid-state linear driver architecture, wide batwing optical distribution, and ultra-slim die-cast housing.

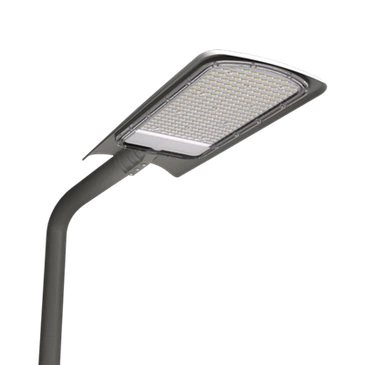

High-Density 2835 Optical Lens Panel (100 lm/W)
Utilizes dense 2835 LED arrays paired with an integrated optical PC lens panel, delivering 100 lm/W optical efficacy and a wide 85°×155° batwing distribution for uniform pavement illumination without dark patches.
- Available in warm white to cool white CCT (2700K–6500K) with Ra > 70 rendering.
- Integrated UV-stabilized PC lens panel resistant to outdoor yellowing and impact.
- Evenly spaced light emission eliminating harsh hotspot glare for drivers.
Driver-on-Board (DOB) Linear IC & Slotted Heatsink
Features solid-state Driver-on-Board technology with driving ICs mounted directly onto the aluminum substrate, eliminating bulky external electrolytic capacitors and reducing electronic failure points.
- Direct AC input with high efficiency and lower operating thermal profile.
- Rear convective cooling fins accelerate thermal dissipation across the slim body.
- Built-in surge protection device (SPD) safeguarding against grid voltage transients.
Three Scalable Die-Cast Sizes (30W to 180W)
The PE-6048 series offers three ultra-slim ADC12 die-cast enclosure dimensions to match community project hierarchies and lower shipping logistics costs:
- Size 1 (30W / 50W / 60W): 435 × 170 × 65 mm for backyard lanes, residential pathways, and garden walkways.
- Size 2 (80W / 100W / 120W): 510 × 205 × 65 mm for village streets, perimeter fences, and parking lots.
- Size 3 (150W / 180W): 590 × 240 × 65 mm for secondary municipal arterials and industrial corridors.
Recommended Road Applications
Economical and reliable photometric configurations tailored for residential, rural, and perimeter projects.
Residential Subdivisions
Low-wattage (30W–60W) configurations providing soft, glare-free downward illumination for community avenues and driveways.
Rural & Remote Roads
High-reliability DOB solid-state design (50W–100W) built to withstand volatile grid environments without external driver failures.
Industrial Perimeters
Mid-to-high wattage (100W–150W) models providing clear boundary security lighting for logistics parks and factories.
Parks & Campus Walkways
Ultra-slim lightweight installation delivering uniform, energy-efficient illumination for pedestrian plazas and school grounds.
Need IES Photometric Files or Project Quotations?
Provide your road width, pole height, and required illuminance level. Our engineering team delivers Dialux simulations and bulk project pricing within 24 hours.
