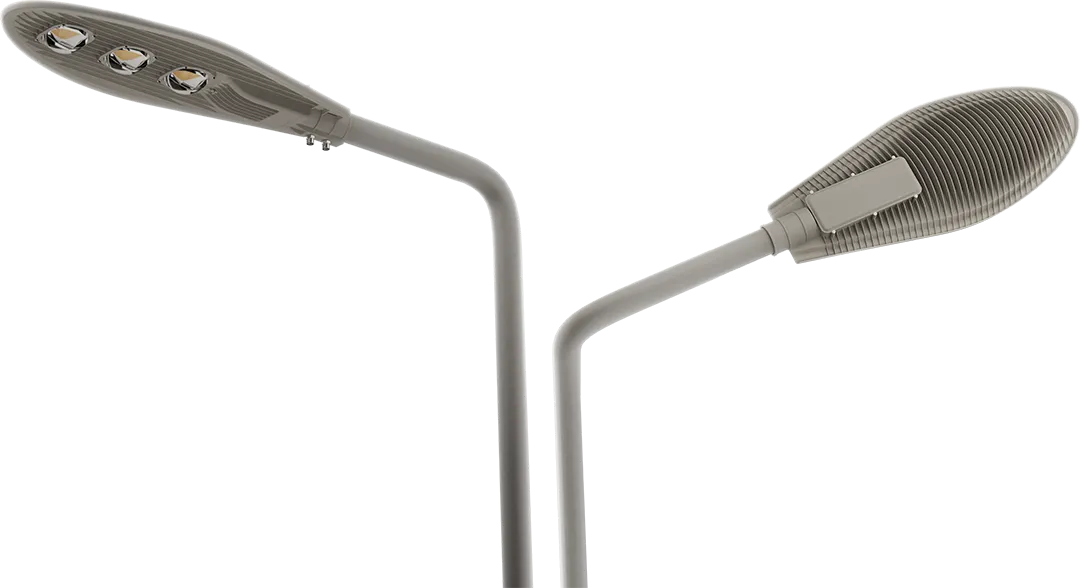

Classic Leaf COB LED Street Light
High-output COB roadway luminaire engineered for municipal collector roads, suburban avenues, commercial campuses, and perimeter infrastructure. Combines a timeless biomimetic leaf aerodynamic unibody with high-power COB optical glass lenses, delivering 120–130 lm/W luminous efficacy, IP65 weatherproofing, and IK08 impact resistance.
Engineering & Optical Advantages
High-penetration COB optical glass lenses, biomimetic leaf aerodynamic unibody, and radial convective heat dissipation.
High-Flux COB Optical Glass Engine (120–130 lm/W)
Utilizes high-output CREE / Epistar / Osram COB LED modules paired with non-yellowing, high-transmission aspherical optical glass lenses. Produces deep forward light penetration with high central road illuminance and superior color rendering (Ra > 75).
- Aspherical optical glass lens delivers zero-degradation optical clarity over years.
- Available in 2700K to 6500K CCT with strong rain and fog penetration capability.
- Intense center-beam illuminance ensuring high visibility on vehicular roadways.
Radial Convective Heatsink & Self-Cleaning Profile
Engineered with high-density curved cooling ribs integrated directly into the heavy-duty ADC12 die-cast aluminum chassis. This ensures direct conduction from the COB substrate and accelerated ambient convective cooling, extending operational lifespan beyond 50,000 hours.
- High-pressure ADC12 die-cast aluminum with multi-stage outdoor powder coating.
- Smooth streamlined housing prevents rainwater pooling and dust accumulation.
- Integrated 10kV surge protection device (SPD) protecting against power line spikes.

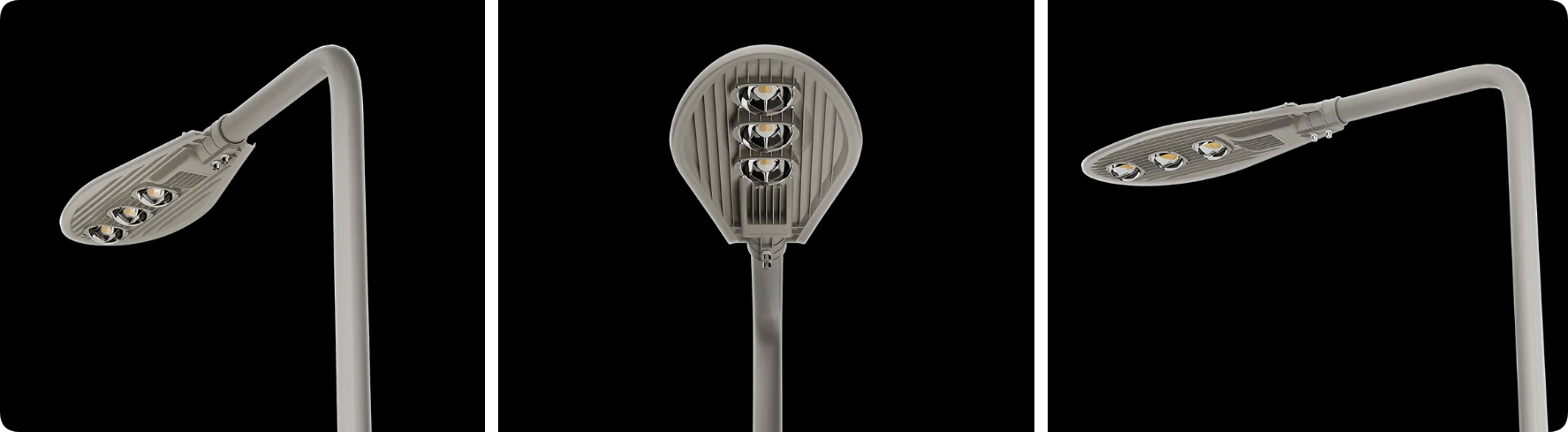

Aerodynamic Contours & Heavy-Duty Tenon
Designed with a reinforced spigot compatible with standard Φ60mm horizontal cantilever street light poles, providing high wind load resistance, vibration damping, and low mechanical stress on light poles.
- Dual stainless steel locking fasteners ensure vibration-proof mechanical attachment.
- 0-10V, PWM, and DALI dimming options for intelligent municipal energy management.
- Operating temperature range from -40°C to +45°C across all outdoor climatic zones.
Recommended Road Applications
Versatile COB photometric configurations engineered for municipal collector roads, suburban avenues, and perimeter infrastructure.
Municipal Arterials
Multi-COB configurations (100W–180W) delivering intense pavement illumination and high optical clarity for urban vehicular traffic.
Suburban Roads & Villages
High-reliability single/dual COB models (30W–80W) providing long-lifespan municipal public lighting with minimal maintenance.
Industrial & Logistics Parks
Rugged IP65 die-cast construction resisting heavy vehicle vibrations, dust, and humid outdoor operating conditions.
Commercial & Campus Grounds
Aesthetic leaf-shaped fixtures (20W–50W) providing glare-free illumination across parking facilities, business plazas, and school grounds.
Need IES Photometric Files, Dialux Simulations, or Project Quotations?
Provide your road width, pole height, and required illuminance level. Our engineering team delivers full photometric reports and project pricing within 24 hours.
