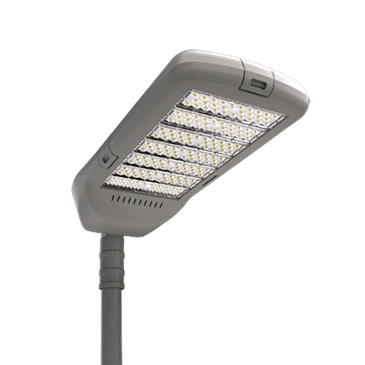

Waterproof IP66 LED Street Light
High-output modular roadway luminaire engineered for major expressways, heavy-traffic municipal boulevards, ports, and industrial complexes. Built with multi-row Lumileds/Hongli 3030/5050 optical engines delivering up to 160 lm/W, a clamshell manual buckle top-opening housing, robust IP66 watertight sealing, and a broad power range spanning 80W up to 400W.
Engineering & Modular Advantages
Multi-row optical matrix, clamshell top access, and scalable high-wattage die-cast chassis.

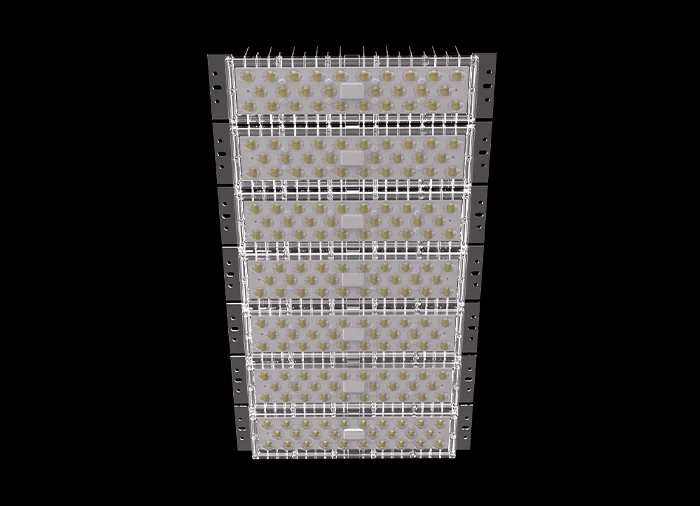

High-Lumen Modular Optical Array (160 lm/W)
Equipped with multi-row Lumileds / Hongli 3030/5050 LED packages paired with UV-stabilized optical-grade PC lenses, delivering 160 lm/W high luminous efficacy and wide beam distribution for expansive road surfaces.
- Precision Type I, II, III, and IV symmetrical/asymmetrical roadway distributions.
- Available in 2700K to 6500K CCT with Ra > 70 color rendering index.
- High pavement luminance uniformity minimizing dark spots across heavy traffic corridors.

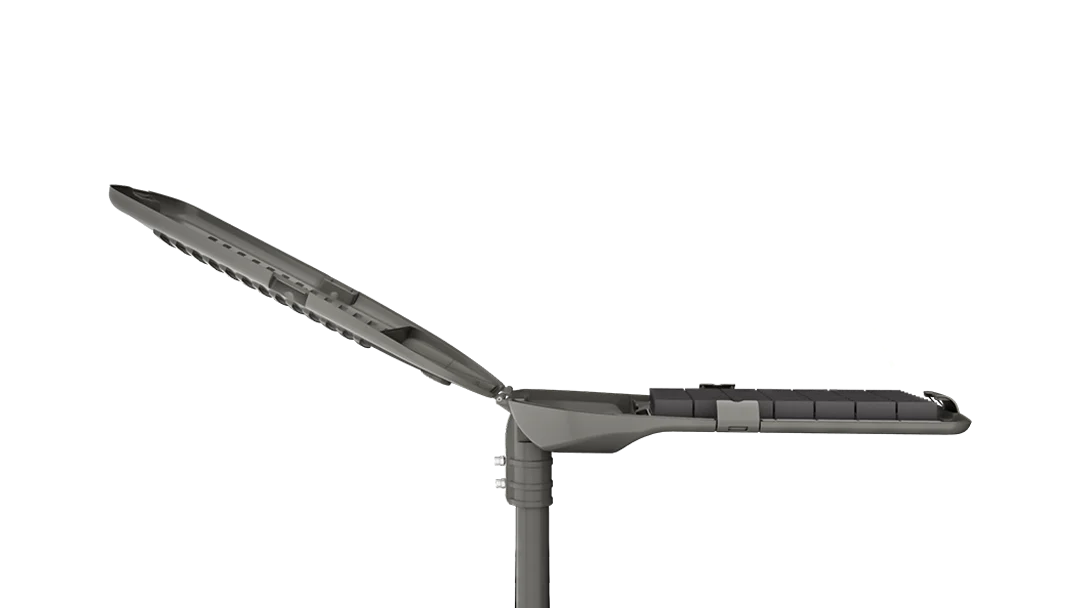

Clamshell Top-Opening Housing for Fast Maintenance
Features an integrated die-cast pivoting axle with manual shell buckles, allowing electricians to swing the upper housing open upward in seconds without dismounting the luminaire from the pole arm.
- Instant top-down access to internal drivers, SPDs, and terminal blocks.
- Auto-disconnect safety mechanism available during lid opening.
- Drastically reduces elevated maintenance time and long-term municipal labor costs.
Six Scalable Die-Cast Sizes (80W to 400W)
The PE-6028 series features six distinct ADC12 die-cast enclosure dimensions to match diverse mounting heights and municipal road hierarchies:
- Size 1 (80W / 100W): 500 × 275 × 130 mm for secondary urban streets and parking zones.
- Size 2 (120W / 150W): 565 × 300 × 130 mm for municipal collector roads and industrial avenues.
- Size 3 (200W): 630 × 325 × 130 mm for main municipal boulevards and multi-lane arterials.
- Size 4 (250W): 695 × 350 × 130 mm for multi-lane expressways and transit corridors.
- Size 5 (300W): 760 × 375 × 130 mm for elevated flyovers and highway junctions.
- Size 6 (400W): 825 × 400 × 130 mm for high-mast highway interchanges and sea port terminals.

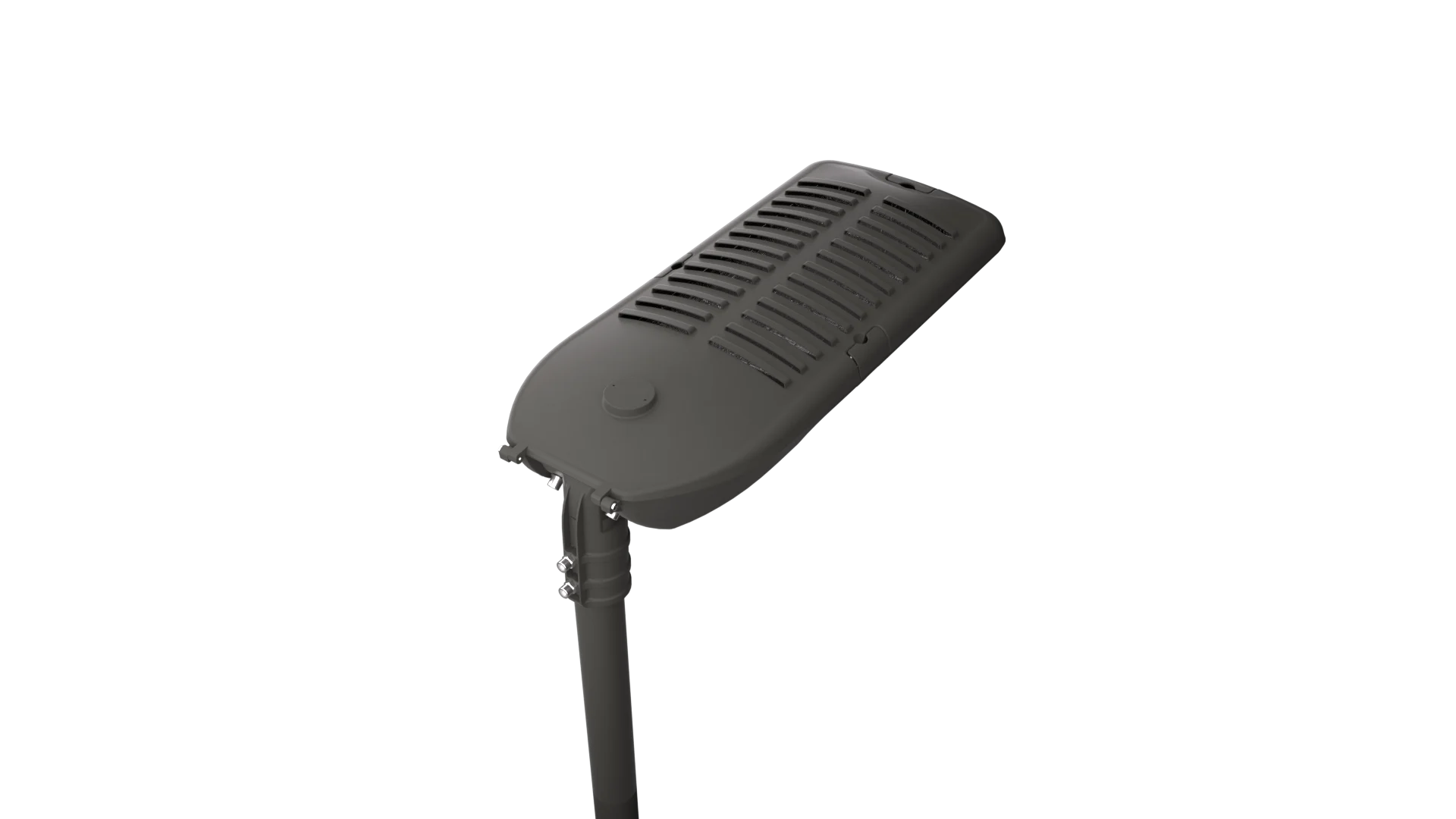

Louvered Convective Heat Sink & Smart Photocell
Engineered with rear convective thermal slots that promote continuous airflow across the aluminum chassis, accelerating heat conduction away from LED junctions and preventing dust accumulation.
- ADC12 die-cast aluminum construction with anti-corrosion outdoor powder coating.
- Optional top-mounted NEMA/Zhaga photocell socket for automated dusk-to-dawn switching.
- Built-in 10kV / 20kV surge protection device (SPD) protecting against grid transient spikes.
Reinforced Cantilever Spigot & Dimming Ready
Designed with a reinforced spigot compatible with standard Φ60mm horizontal cantilever street light poles, ensuring robust mechanical stability and high wind load resistance.
- Dual stainless steel locking fasteners ensure vibration-proof attachment.
- 0-10V, PWM, and DALI dimming options for intelligent municipal management.
- Operating temperature range from -40°C to +45°C across all outdoor environments.
Recommended Road Applications
Heavy-duty photometric configurations engineered for multi-lane highways and municipal infrastructure.
Expressways & Interchanges
High-power 250W–400W configurations delivering broad forward throw distribution across high-speed multi-lane transit corridors.
Municipal Main Boulevards
Mid-to-high wattage (150W–200W) uniform illumination meeting strict national municipal roadway luminance standards.
Industrial Complexes & Ports
Heavy-duty IP66 and IK08 die-cast chassis resisting corrosive coastal air, high vibration, and severe outdoor weather.
Urban Secondary Arterials
Efficient (80W–120W) models providing clear nighttime visibility and security around commercial corridors and perimeter roads.
