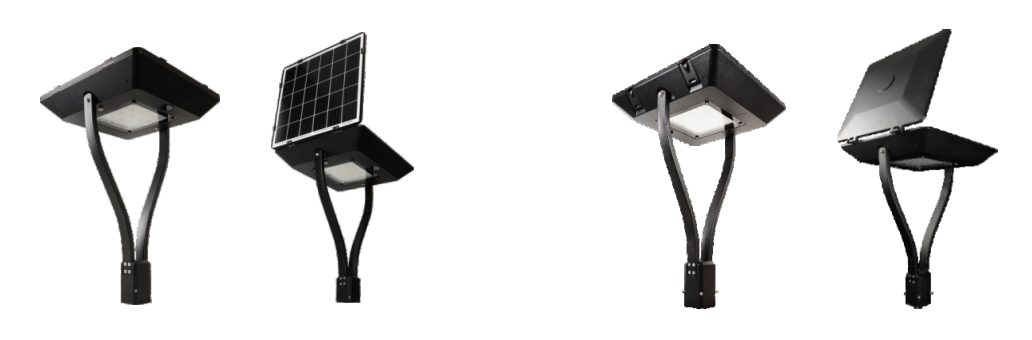

Architectural Post-Top Solar Garden Light
Premium post-top solar garden and park luminaire featuring an aerodynamic clamshell die-cast housing, dual Y-fork pole mount, top-integrated 18V 40W monocrystalline PV panel, and MEANWELL AC/solar hybrid driver compatibility.
Technical Parameter Matrix
Comprehensive optical, electrical, and battery configurations for the PE-5005SL post-top series.
| Model Code | System Power | Luminous Flux | Solar Panel | LiFePO4 Battery | Optics (IES) | Autonomy / Charging |
|---|---|---|---|---|---|---|
| PE-5005SL-15W | 15W (Solar) | 3,000 lm | 18V 40W Mono | 12.8V 17Ah / 20.4Ah | Type I / II / III / V | 1–2 Days / 5–6h Charge |
| PE-5005SL-20W | 20W (Solar) | 4,000 lm | 18V 40W Mono | 12.8V 23.8Ah | Type I / II / III / V | 1–2 Days / 5–6h Charge |
| PE-5005-100W (AC) | 100W (Grid/Hybrid) | 20,000 lm | AC 100–277V / Hybrid | MEANWELL Driver | Type I / II / III / V | Continuous / Grid-Tied |
PE-5005SL-15W
Designed for residential walkways, garden courtyards, and landscape pedestrian trails.
- Luminous Output: 3,000 lm (≥200 lm/W)
- Battery Storage: 12.8V 17Ah LiFePO4
- Mounting: 3–4m Post-Top (Φ60–76mm)
PE-5005SL-20W
Enhanced battery capacity for commercial park plazas, campus avenues, and resort perimeters.
- Luminous Output: 4,000 lm (≥200 lm/W)
- Battery Storage: 12.8V 23.8Ah LiFePO4
- Mounting: 4–5m Post-Top (Φ60–76mm)
PE-5005-100W (AC Hybrid)
High-power grid-connected or solar-hybrid luminaire powered by an integrated MEANWELL driver.
- Luminous Output: Up to 20,000 lm
- Power Supply: MEANWELL Driver (100–277V)
- Mounting: 5–6m Post-Top (Φ60–76mm)
Key Structural & Optical Advantages
Toolless clamshell access, tier-1 driver integration, and precision landscape distribution optics.

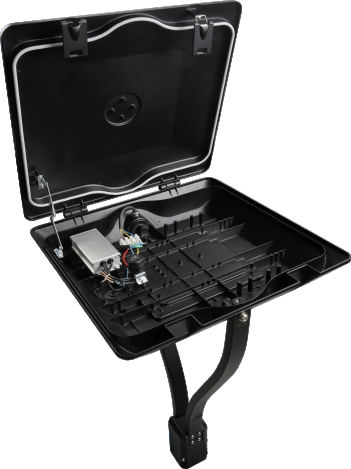

Toolless Clamshell Maintenance Quick Access
Hinged die-cast lid with heavy-duty quick-release buckles permits instant access to the battery pack and MEANWELL driver without dismounting the fixture from the pole.
200 lm/W Wide-Beam Optics Type I / II / III / V
Engineered with high-density SMD 2835 / 3030 LED chips under UV-stabilized optical lenses, offering Type I, II, III, and V symmetrical/asymmetrical light distribution curves for wide area coverage.
Color Temperature: 2700K – 6500K Adjustable
Heavy-Duty Dual Y-Fork Bracket Post-Top Mount
Aesthetic aerodynamic twin-arm fork structure made of high-strength structural aluminum. Provides 360-degree mechanical balance and secure locking over standard Φ60mm–Φ76mm tenons.
Operating Range: -20°C to +50°C Extreme Environments
High-Efficiency PV & LiFePO4 Pack ≥22% Mono
Top-mounted 18V 40W single-crystal silicon panel delivers fast 5–6h full recharge. Matched with Grade-A 12.8V LiFePO4 cells delivering over 2,000 full depth-of-discharge cycles.
Autonomy: 1–2 Continuous Rainy/Overcast Days
Engineering Application Environments
Recommended deployment environments, pole mounting heights, and landscape lighting scenarios.
Botanical gardens, city parks, and recreational walking trails needing aesthetic 360° post-top illumination.
Upscale villa neighborhoods, courtyard promenades, and private residential driveways.
University campus boulevards, hotel resort open spaces, and retail perimeter footpaths.
Surface parking lots and internal facility access lanes requiring high-lumen continuous lighting.
