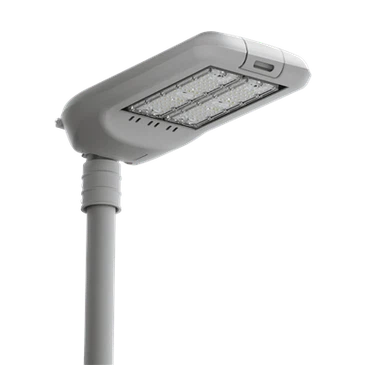

Compact Modular LED Street Light
High-efficiency compact modular roadway luminaire engineered for secondary municipal arterials, residential avenues, industrial parks, and commercial parking complexes. Built with independent longitudinal optical engines, Lumileds/Hongli 3030/5050 LEDs delivering up to 160 lm/W, a 120° clamshell top-opening housing for rapid on-pole maintenance, and IP66 watertight sealing.
Engineering & Modular Advantages
Longitudinal optical matrix, 120° clamshell maintenance access, and slotted convective cooling.

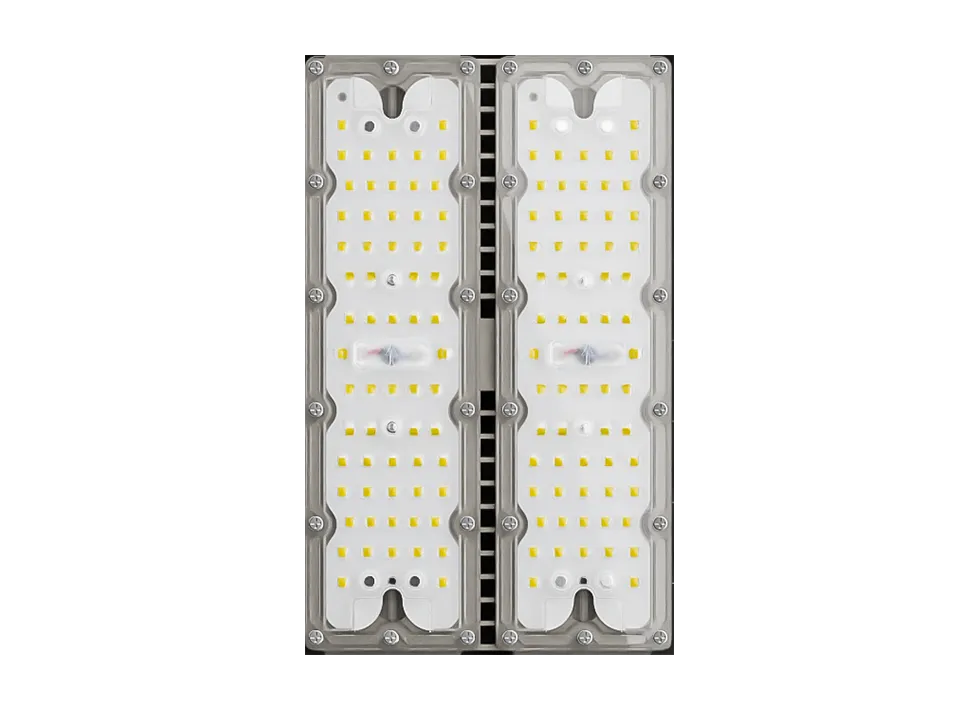

High-Efficacy Modular Optical Engine (160 lm/W)
Equipped with independent longitudinal optical modules utilizing Lumileds / Hongli 3030/5050 LED arrays paired with precision PC optical lenses, delivering 160 lm/W optical efficacy while maintaining low glare and uniform roadway distribution.
- Standard Type III batwing beam profile designed for secondary roads and parking areas.
- Available in 2700K to 6500K CCT with Ra > 70 color rendering index.
- High pavement luminance uniformity minimizing dark patches across traffic lanes.
120° Clamshell Top-Opening Housing for Fast Servicing
Features an integrated die-cast pivoting axle with manual shell latches allowing the upper housing to pivot upward to 120°, providing immediate top-down access to internal drivers, SPDs, and terminal blocks.
- Manual quick-release latch allows rapid servicing without specialized tools.
- Auto-disconnect safety mechanism available during lid opening.
- Maximizes aerial maintenance safety and drastically reduces elevated labor costs.

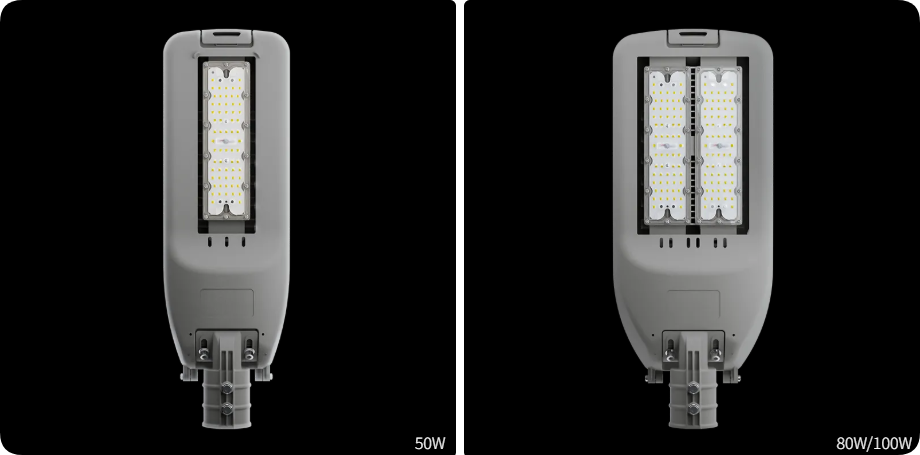

Two Scalable Die-Cast Sizes (50W to 100W)
The PE-6028H series offers two streamlined ADC12 die-cast enclosure dimensions to match community project hierarchies and lower shipping logistics costs:
- Size 1 (1 Module / 50W–60W): 435 × 205 × 105 mm for pedestrian pathways, residential streets, and bike lanes.
- Size 2 (2 Modules / 80W–100W): 500 × 245 × 105 mm for secondary urban arterials, industrial access roads, and parking lots.

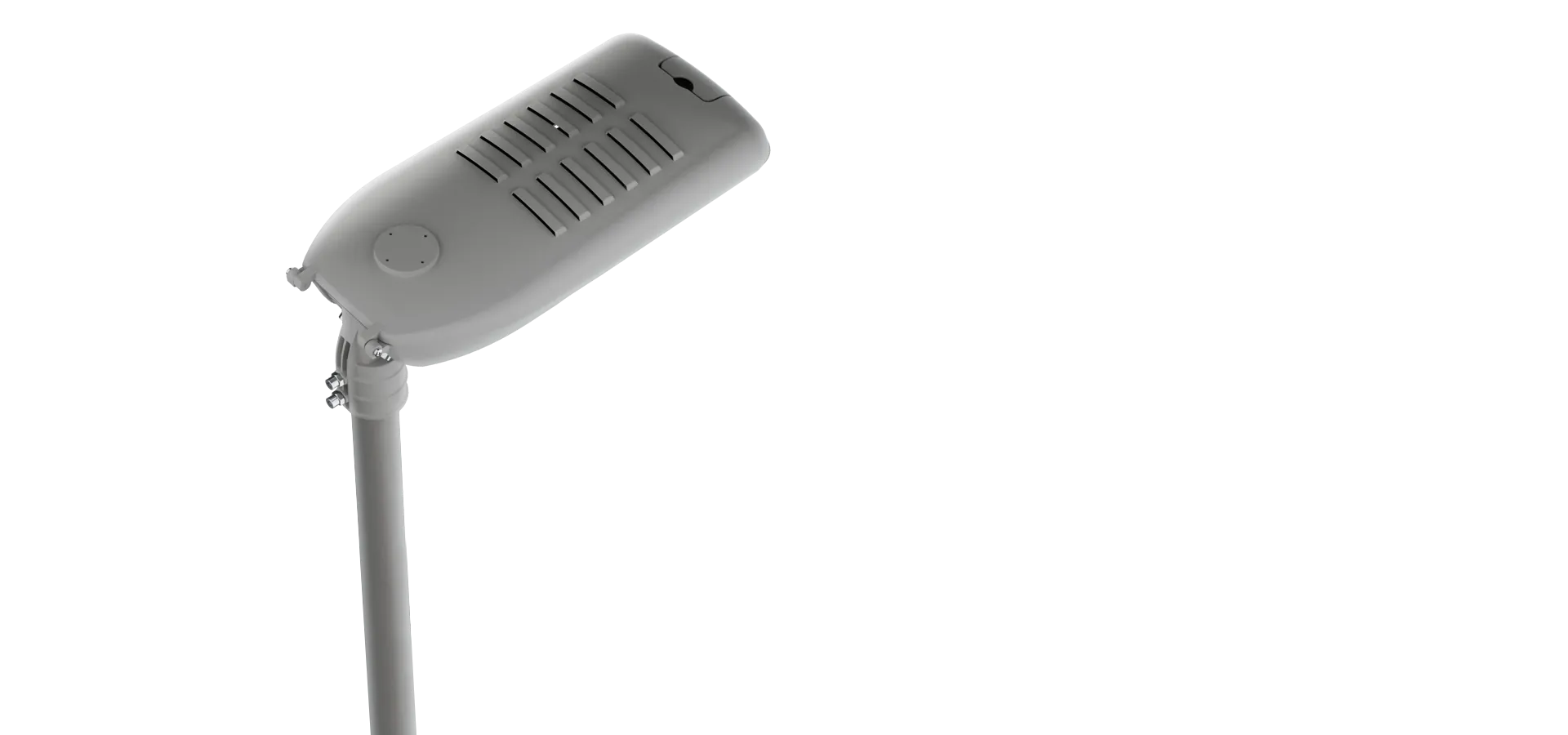

Louvered Convective Heat Sink & Smart Photocell
Engineered with rear convective thermal slots that promote continuous airflow across the aluminum chassis, accelerating heat conduction away from LED junctions and preventing dust accumulation.
- ADC12 die-cast aluminum construction with anti-corrosion outdoor powder coating.
- Optional top-mounted NEMA/Zhaga photocell socket for automated dusk-to-dawn switching.
- Built-in 10kV / 20kV surge protection device (SPD) protecting against grid transient spikes.
±12° Universal Mounting Tenon
Features an adjustable tenon spigot with mechanical degree calibration from -12° to +12°, supporting both horizontal cantilever arm mounting and vertical post-top installation.
- Compatible with standard Φ60mm cantilever arms and vertical tenons.
- Dual stainless steel locking fasteners ensure vibration-proof attachment.
- Operating temperature range: -40°C to +45°C across all outdoor environments.

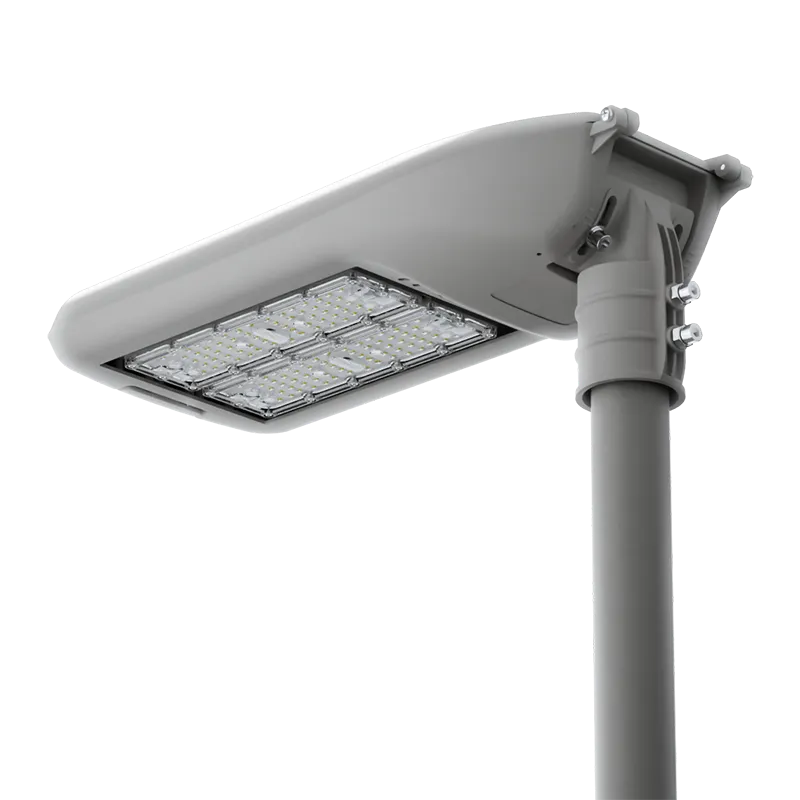

Streamlined Cantilever Spigot & Dimming Ready
Designed with a reinforced spigot compatible with standard Φ60mm horizontal cantilever street light poles, ensuring robust mechanical stability and high wind load resistance.
- 0-10V, PWM, and DALI dimming options for intelligent municipal management.
- Rated for 50,000+ hours of continuous, maintenance-free illumination.
- Supported by a comprehensive 5-year commercial factory warranty.
Recommended Road Applications
Compact photometric deployments engineered for secondary municipal roads, community avenues, and commercial lots.
Residential & Community Avenues
Single-module (50W–60W) configurations providing soft, glare-free, uniform roadway coverage for neighborhood safety.
Parking & Logistic Lots
Dual-module (80W–100W) models delivering broad Type III forward projection to illuminate open lots and loading bays efficiently.
Industrial Park Access Roads
Robust IP66 and IK08 die-cast chassis resisting outdoor airborne dust, humidity, and constant vibrations from freight transit.
Campuses & Public Pathways
Compact aerodynamic styling providing aesthetic and energy-efficient lighting across pedestrian pathways and plazas.
Need IES Photometric Files, Dialux Simulations, or Project Quotations?
Provide your road width, pole height, and required illuminance level. Our engineering team delivers full photometric reports and project pricing within 24 hours.
