Smart Induction Sensor UFO LED High Bay Light
Intelligent industrial luminaire engineered for smart automated warehouses, manufacturing machine shops, retail superstores, sports complexes, and cold storage logistics. Features a central plug-and-play smart sensor socket (Microwave / PIR / Photocell), high-output SMD LED arrays delivering above 140 lm/W across five housing sizes, a 360° radial convective heatsink, four industrial mounting methods, and IP65/IK09 weatherproofing.
Engineering & Smart Sensing Advantages
Integrated center induction sensor socket, multi-tier concentric ring optics, radial heat dissipation, and versatile mounting options.
Central Smart Sensor Socket & Ring Matrix (≥140 lm/W)
Equipped with a precision-engineered center receptacle that accepts tool-less screw-in microwave motion sensors, PIR presence detectors, or daylight photocells. Delivers automated multi-step dimming (100% full output upon motion detection, stepping down to 20% on idle or switching off completely) to maximize energy savings.
- Concentric ring optical layout providing uniform, wide circular beam coverage with low glare (UGR < 19).
- High color rendering index (CRI > 80) for superior visual comfort and high-accuracy inspection.
- Supports instant tool-less field installation and replacement of smart sensor modules.
3-Perspective Geometry & Radial Thermal Dissipation
Constructed with high-pressure ADC12 die-cast aluminum with dense radial cooling ribs. Natural chimney convection channels heat upward away from the LED engine and top-isolated driver compartment, ensuring low component temperatures during 24/7 continuous operation.
- Multi-stage industrial powder coating providing C5-grade anti-corrosion protection.
- Continuous silicone gasket ensuring watertight IP65 ingress protection against high-pressure washdowns.
- Built-in 10kV / 20kV surge protection device (SPD) safeguarding against power line fluctuations.

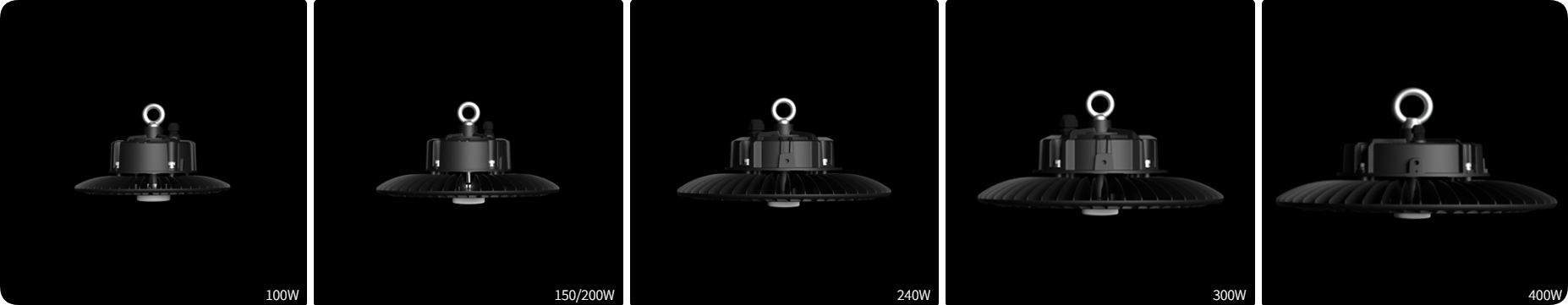

Five Scalable Loop-Mount Chassis (100W to 400W)
The PE-8009DC-I series provides five calibrated housing dimensions with forged stainless steel suspension eye-bolts matching complete industrial ceiling scales:
- 100W Chassis: Ideal for 6m–8m heights in retail superstores, small workshops, and assembly rooms.
- 150W / 200W Chassis: High-flux models for 8m–12m automated warehouses and distribution centers.
- 240W Chassis: Heavy-duty format for 10m–15m industrial manufacturing and machining bays.
- 300W / 400W Chassis: Maximum lumen output for 14m–25m aircraft hangars, heavy foundries, and open sports halls.
Scalable Surface Yoke Bracket Enclosures
For directional surface mounting on walls, structural pillars, or ceilings, all five power tiers can be outfitted with heavy-duty adjustable steel U-brackets with integrated junction boxes for clean, vibration-proof electrical hookup.
- Heavy-duty steel bracket with high-torque hex locking bolts supporting precision directional aiming.
- Integrated conduit junction box simplifies continuous branch-circuit wiring.
- Direct thermal conduction through high-purity aluminum core substrate.

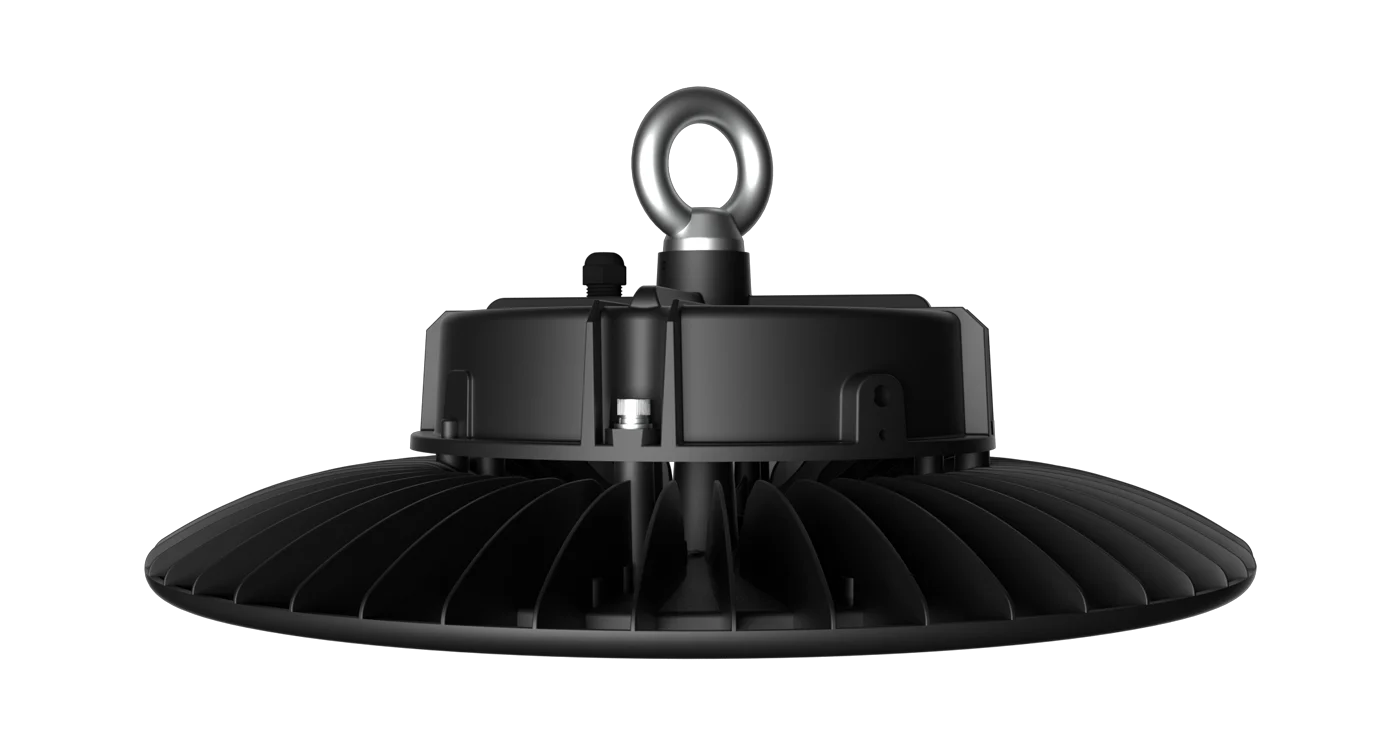

Slim Radial Profile & Heavy-Duty Suspension Ring
The streamlined circular profile provides exceptional structural balance and low dust accumulation, equipped with an industrial-grade stainless steel forged eyebolt for instant, secure suspension.
- Aerodynamic sloped fins channel airborne industrial dust and particulate buildup away from the fixture.
- Low heat retention design ensures continuous 24/7 reliability in hot ambient environments.
- Operating temperature rating from -35°C to +50°C across demanding climatic zones.
Isolated Driver Enclosure & Hardware Details
Features a dedicated top driver compartment compatible with industry-leading constant-current drivers, supporting seamless 0-10V, DALI, and PWM intelligent dimming systems.
- Compatible with Mean Well, SOSEN, Inventronics, and Philips industrial LED drivers.
- Sealed optical chamber prevents internal dust and moisture contamination.
- Backed by a comprehensive 5-year commercial factory warranty.

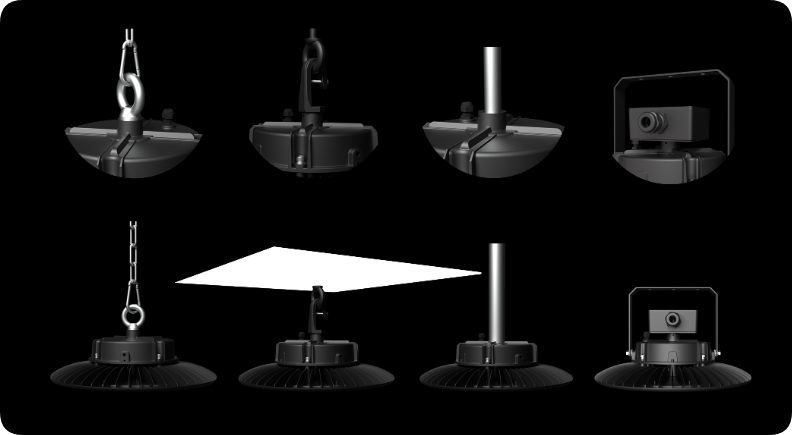

Four Versatile Industrial Mounting Configurations
Features an adaptable structural interface allowing rapid field installation across varied industrial building architectures:
- Suspension Loop Ring: Standard stainless steel loop ring for aircraft cable or chain suspension.
- Snap-In Safety Hook: Quick-mount heavy-duty safety hook for rapid retrofit installations.
- Pendant Conduit Pipe: Rigid threaded conduit pipe mount engineered for high-vibration workshops.
- Junction Box Yoke Bracket: Heavy-duty adjustable steel U-bracket with terminal box for surface mounting.
Recommended Smart Industrial Applications
Smart induction sensor photometric configurations engineered for logistics warehouses, manufacturing plants, retail superstores, and cold storage depots.
Automated Logistics Hubs
Center motion sensing automatically brightens active aisles while keeping unoccupied racking aisles at energy-saving dim levels.
Manufacturing Workshops
Durable IP65/IK09 die-cast aluminum chassis resisting airborne metal shavings, coolant mist, and heavy vibrations.
Retail Superstores & Malls
Clean industrial UFO aesthetic with uniform circular light patterns and high CRI (>80) for excellent merchandise display.
Cold Storage & Depots
Instant-on capability in low ambient temperatures (-35°C to +50°C) with microwave sensors that detect motion through thermal clothing.
Need Smart UFO High Bay Dialux Simulations, IES Files, or Project Quotations?
Provide your facility dimensions, mounting height, and target lux level. Our engineering team delivers full photometric simulations and pricing within 24 hours.
