Economic Slim LED Street Light
Lightweight commercial roadway luminaire engineered for municipal secondary roads, suburban avenues, residential subdivisions, and industrial perimeter fences. Built with ADC12 die-cast aluminum, multi-row 3030/5050 optical arrays delivering 120–140 lm/W, convective finned cooling, and IP65 weatherproofing.
Engineering & Performance Advantages
Lightweight die-cast construction, high-efficiency optical arrays, and longitudinal convective thermal dissipation.

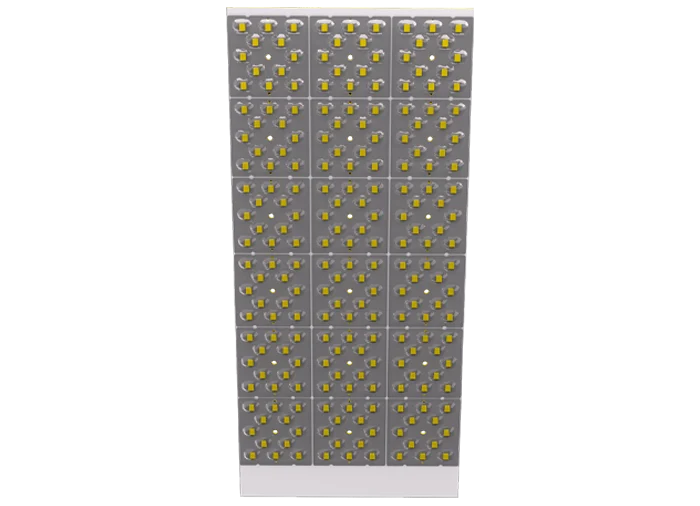

Multi-Row Optical Lens Array (120–140 lm/W)
Equipped with dense 3030 / 5050 LED arrays paired with precision UV-stabilized PC lens panels, delivering 120–140 lm/W system efficacy with wide batwing road distribution for uniform roadway illumination.
- Type II and Type III roadway optical distribution profiles for diverse lane layouts.
- Available in 2700K to 6500K CCT with Ra > 70 color rendering index.
- High pavement luminance uniformity minimizing dark spots across municipal streets.

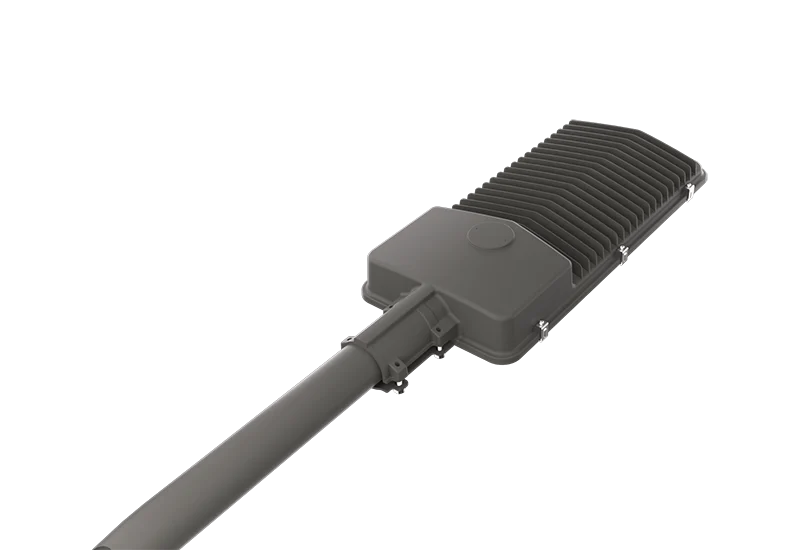

Longitudinal Finned Heatsink & Smart Photocell
The top housing features dense longitudinal aerodynamic cooling fins that channel ambient airflow across the LED substrate, accelerating heat dissipation and ensuring a long 50,000+ hour operating life without dust buildup.
- High-pressure ADC12 die-cast aluminum with multi-stage outdoor powder coating.
- Optional top-mounted NEMA/Zhaga photocell socket for automated dusk-to-dawn switching.
- Integrated 10kV surge protection device (SPD) safeguarding against power line spikes.
Five Scalable Die-Cast Sizes (30W to 180W)
The PE-6027 series offers five distinct lightweight die-cast enclosure dimensions to match project roadway hierarchies and mounting pole heights:
- Size 1 (30W): 430 × 170 × 60 mm for residential lanes, pedestrian trails, and campus paths.
- Size 2 (50W / 60W): 500 × 205 × 60 mm for suburban streets and community roadways.
- Size 3 (80W): 560 × 235 × 65 mm for secondary urban arterials and industrial access roads.
- Size 4 (100W / 120W): 620 × 265 × 70 mm for municipal collector avenues and parking complexes.
- Size 5 (150W / 180W): 700 × 295 × 75 mm for main perimeter corridors and multi-lane connecting roads.
Slim Stepped Profile & Heavy-Duty Tenon
Designed with a reinforced spigot compatible with standard Φ60mm horizontal cantilever street light poles, providing high wind load resistance and low mechanical stress on light poles.
- Dual stainless steel locking fasteners ensure vibration-proof attachment.
- 0-10V, PWM, and DALI dimming options for intelligent municipal energy management.
- Operating temperature range from -40°C to +45°C across all outdoor climatic zones.
Recommended Road Applications
Economical photometric configurations engineered for municipal secondary roads, suburban avenues, and industrial infrastructure.
Urban Secondary Arterials
Mid-wattage (80W–120W) configurations providing clear nighttime visibility and safety around commercial zones and community corridors.
Suburban Roads & Villages
Cost-effective (50W–80W) models delivering high reliability for public lighting upgrade tenders and rural roads.
Residential & Campus Pathways
Compact (30W–50W) models providing soft, glare-free downward illumination for housing developments and school grounds.
Industrial & Logistics Parks
Rugged IP65 die-cast construction resisting outdoor humidity, vibration, and dust accumulation around warehousing zones.
Need IES Photometric Files, Dialux Simulations, or Project Quotations?
Provide your road width, pole height, and required illuminance level. Our engineering team delivers full photometric reports and project pricing within 24 hours.
