Integrated Die-Cast LED Street Light
Modern aerodynamic unibody roadway luminaire engineered for municipal boulevards, urban expressways, and commercial avenues. Built with high-pressure ADC12 die-cast aluminum, Lumileds/Hongli 5050/3030 optical engines (140 lm/W), IP66 watertight sealing, and toolless buckle entry for rapid maintenance.
Engineering & Structural Advantages
Streamlined aerodynamic unibody, toolless electrical compartment access, and precision optical control.
High-Lumen 5050/3030 Optical Engine (140 lm/W)
Equipped with high-flux Lumileds / Hongli 5050/3030 LED arrays paired with precision PC optical lenses, delivering 140 lm/W optical efficacy while maintaining low glare and uniform roadway distribution.
- Type I, II, III, and IV symmetrical/asymmetrical road beam profiles.
- Available in 2700K to 6500K CCT with Ra > 70 color rendering.
- High road surface luminance uniformity (U0 > 0.4) minimizing dark patches.

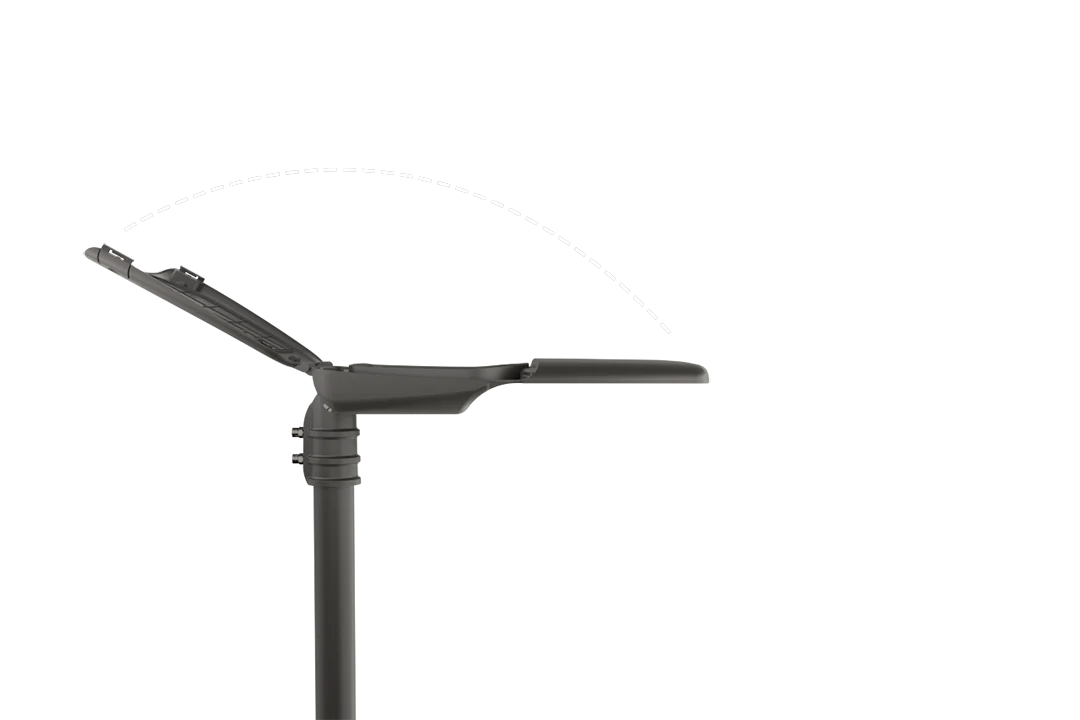

Toolless Shell Buckle Maintenance
Engineered with quick-release shell buckles that allow electricians to open the driver compartment by hand in seconds without dismounting the luminaire from the pole.
- Instant on-pole access to driver, surge protector, and terminal blocks.
- Auto-disconnect safety mechanism available during lid opening.
- Drastically reduces long-term municipal labor and maintenance costs.

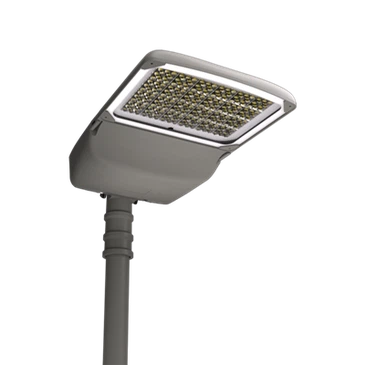

Four Scalable Die-Cast Sizes (30W to 300W)
The PE-6039 series offers four distinct aerodynamic unibody profiles matching different pole heights and municipal road classifications:
- Size 1 (30W / 50W): 420 × 220 × 116.4 mm for village lanes & walkways.
- Size 2 (80W / 100W): 540 × 290 × 130 mm for urban secondary streets.
- Size 3 (150W / 200W): 649 × 390 × 130 mm for municipal main avenues.
- Size 4 (240W / 300W): 750 × 390 × 152 mm for multi-lane expressways.

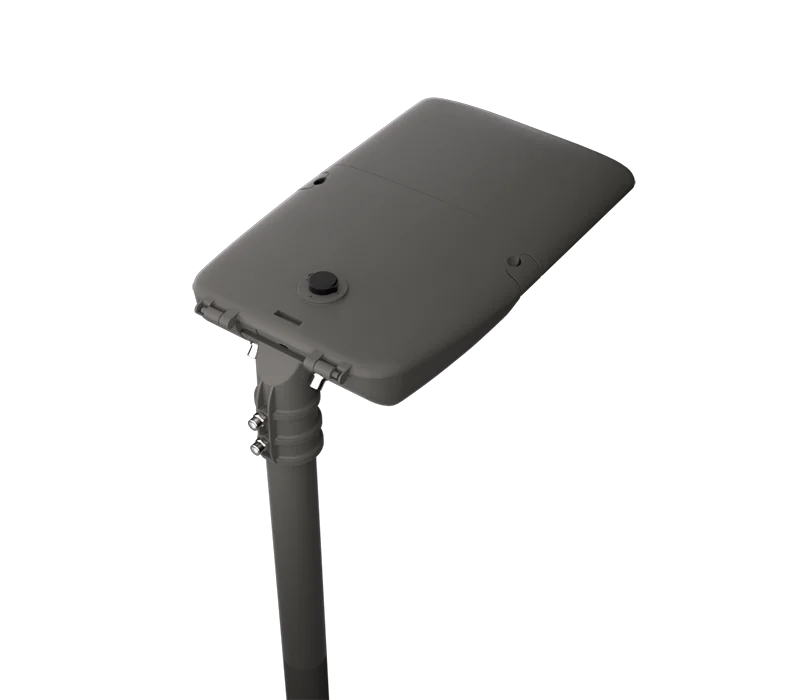

Smooth Self-Cleaning Body & Smart Photocell
Smooth aerodynamic top housing prevents dust and bird droppings accumulation. Optional top-mounted NEMA/Zhaga photocell socket enables automated dusk-to-dawn switching.
- Heavy-duty ADC12 die-cast aluminum with multi-stage outdoor powder coating.
- Integrated 10kV / 20kV surge protection device (SPD) against lightning spikes.
- 0-10V, PWM, and DALI dimming options for smart municipal management.

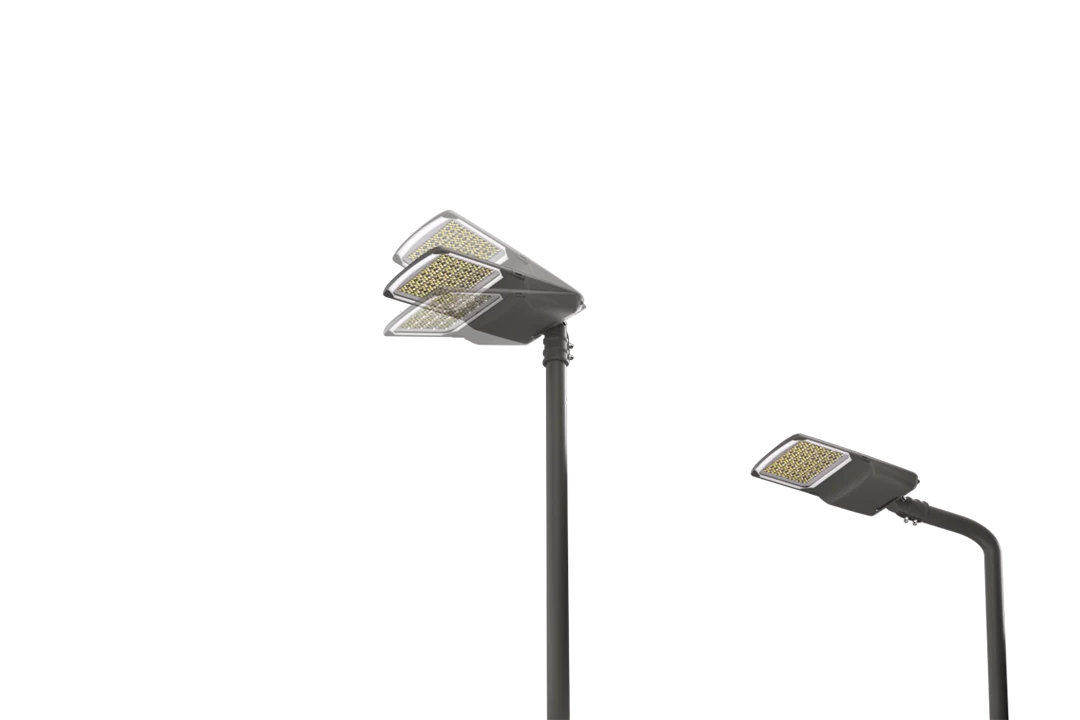

±15° Universal Mounting Tenon
Features an adjustable spigot with mechanical degree calibration from -15° to +15°, supporting both horizontal cantilever arm mounting and vertical post-top installation.
- Compatible with standard Φ62mm and Φ71.5mm pole tenons.
- Stainless steel locking fasteners for high wind resistance and structural safety.
- Operating temperature range: -40°C to +45°C for all climatic zones.
Recommended Road Applications
Photometric deployments engineered for municipal street lighting tenders and urban infrastructure.
Urban Main Avenues
High-wattage (150W–200W) uniform illumination meeting national roadway luminance standards with smart dimming support.
Expressways & Flyovers
Heavy-power (240W–300W) configuration delivering high luminous output (up to 42,000 lm) across high-speed traffic corridors.
Secondary City Streets
Mid-wattage (80W–100W) lighting providing clear nighttime visibility and safety around commercial centers and perimeter roads.
Residential & Village Roads
Compact (30W–50W) models delivering soft, glare-free illumination with low energy consumption for community driveways.
Need IES Files, Dialux Simulations, or Custom Driver Configurations?
Provide your road profile, pole spacing, and target lux requirement. Our engineering team delivers full photometric reports and project pricing within 24 hours.
