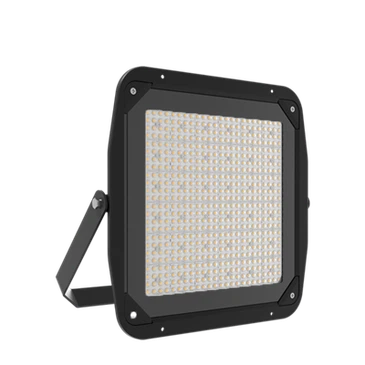

Ultra-Slim DOB LED Stadium & Commercial Floodlight
High-efficiency Driver-on-Board (DOB) luminaire engineered for athletic sports fields, soccer training grounds, logistics terminals, and commercial building perimeters. Incorporates solid-state DOB circuitry that eliminates external driver boxes while delivering high-lumen uniform illumination across 50W to 400W across six chassis sizes with a 360° rotation bracket and IP66/IK08 weatherproofing.
Engineering & DOB Circuitry Advantages
Integrated solid-state Driver-on-Board architecture, high-lumen SMD matrix array, and 360° rotation mounting bracket.

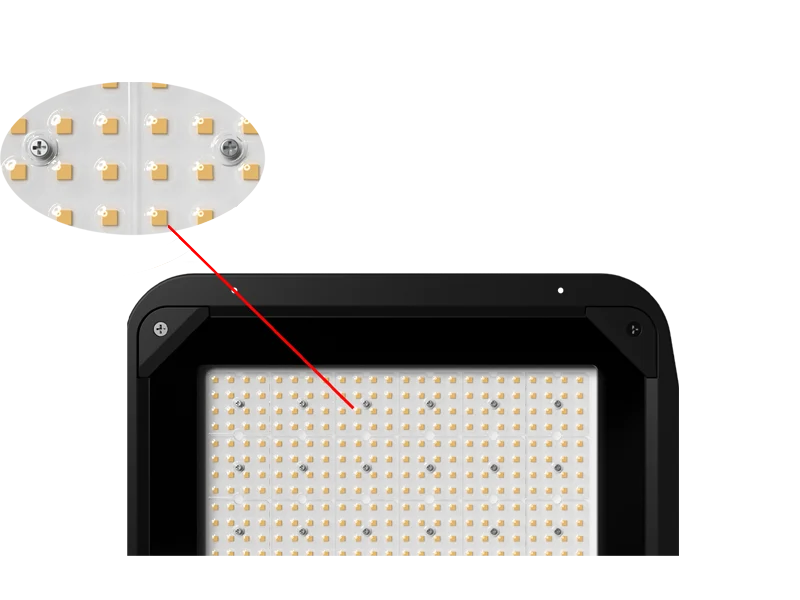

High-Lumen SMD Matrix Array & Optical Balance
Equipped with dense high-output SMD LED arrays paired with an optical tempered glass faceplate delivering a broad 120° uniform beam spread. Delivers balanced, flicker-free illumination across sports fields and architectural perimeters while eliminating central glare hotspots.
- High color rendering (CRI > 70 / 80 optional) for crisp nighttime visual contrast.
- Available in 2700K warm white to 6500K daylight color temperatures and optional RGB systems.
- Reinforced tempered glass faceplate offering high mechanical impact and thermal resistance.

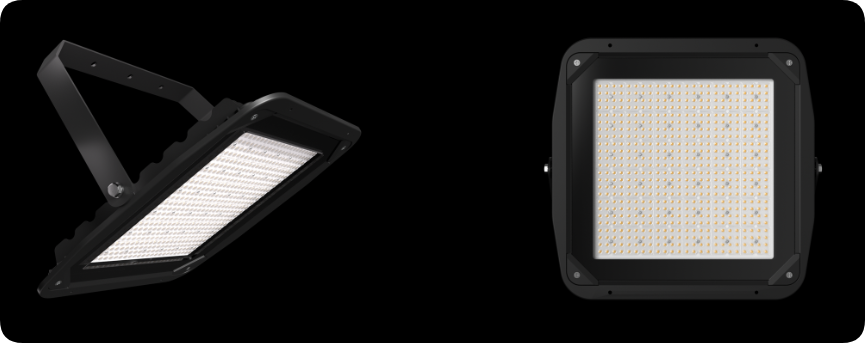

Modern Square Die-Cast Profile & Front/Side View
Constructed with high-pressure ADC12 die-cast aluminum in a streamlined square chassis that minimizes wind drag at elevated heights while providing superior torsional rigidity.
- Multi-stage outdoor powder coating providing C5-grade anti-corrosion protection.
- Integrated silicone gasket ensuring watertight IP66 ingress protection.
- Built-in 6kV / 10kV surge protection device (SPD) safeguarding against line voltage spikes.

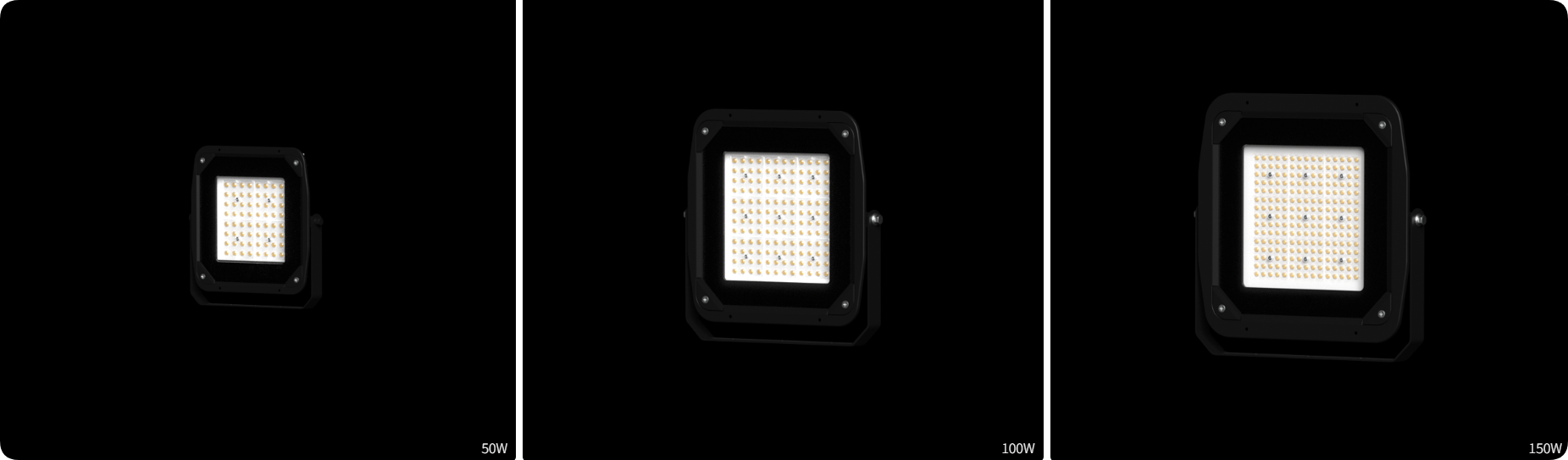

Scalable Low-to-Mid Power DOB Enclosures (50W to 150W)
The PE-2099 series provides compact enclosure formats tailored for residential security, perimeter lighting, and commercial storefronts:
- Size 1 (50W): Compact luminaire for residential perimeters, entry doorways, and garden borders.
- Size 2 (100W): Mid-size chassis for commercial storefronts, outdoor billboards, and access gates.
- Size 3 (150W): High-flux model for mid-height parking lots, loading bays, and industrial grounds.

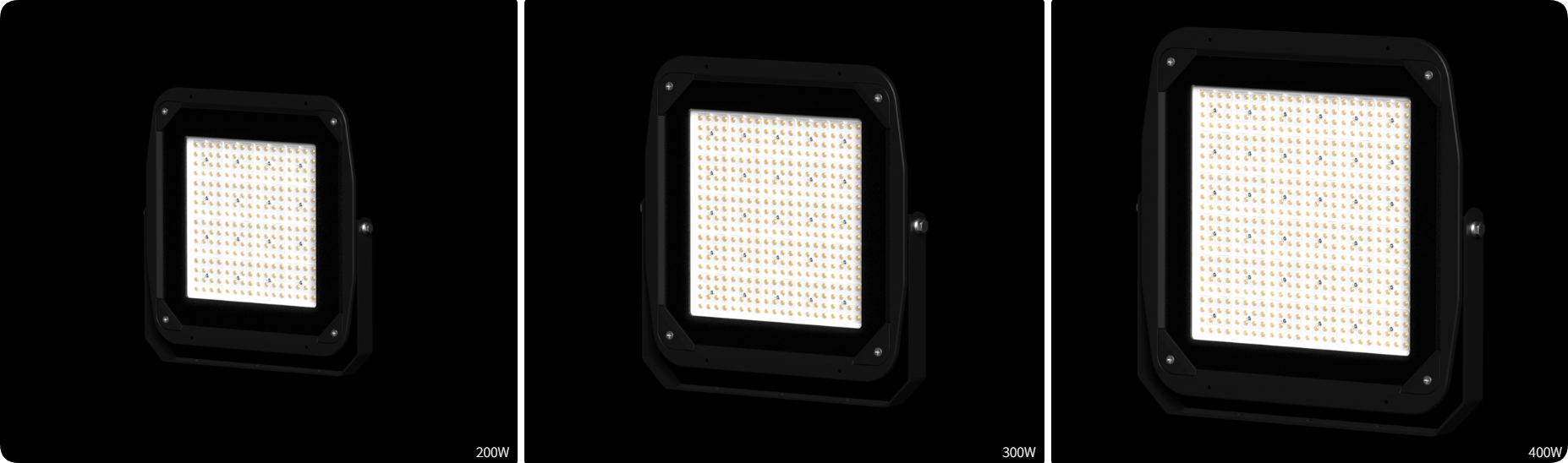

High-Power Sports & High-Mast Enclosures (200W to 400W)
Engineered for sports facilities, soccer training fields, and industrial high-mast lighting towers requiring massive lumen output:
- Size 4 (200W): High-output chassis for community basketball courts and warehouse loading yards.
- Size 5 (300W): Powerful luminaire for regional soccer pitches, municipal plazas, and open storage yards.
- Size 6 (400W): Heavy-duty workhorse delivering maximum foot-candles for athletic stadiums and high-mast poles.
Rear Convective Thermal Heatsink
The rear housing features dense vertical cooling fins that create continuous convective airflow, rapidly conducting heat away from the solid-state DOB circuitry and LED junctions to maintain long lumen maintenance.
- Direct thermal conduction through high-purity aluminum substrate.
- Elimination of external electrolytic capacitors extends operating life in hot climates.
- Operating temperature rating from -30°C to +45°C across diverse outdoor environments.

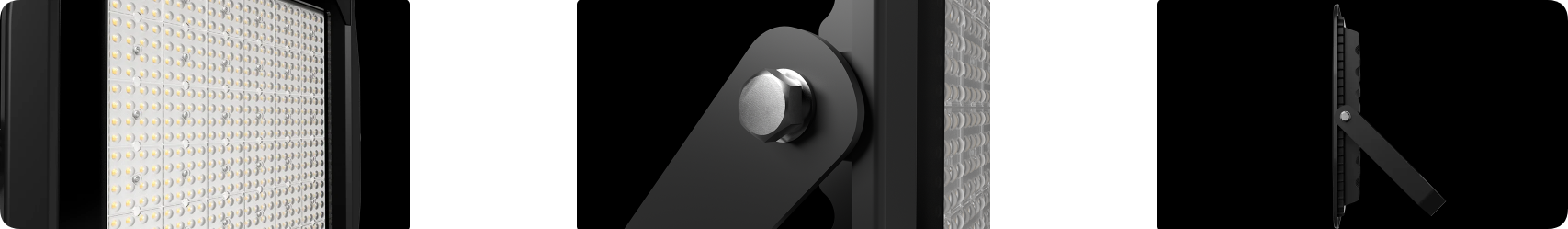

Ultra-Slim Profile & Reinforced Corner Screws
Features an ultra-thin unibody chassis with four heavy-duty stainless steel corner fasteners that secure the tempered glass frame against high mechanical impact and water pressure.
- Ultra-slim design reduces total luminaire weight and elevated pole wind resistance.
- Stainless steel hex hardware ensures corrosion-free outdoor longevity.
- Sealed cable gland with strain relief for vibration-proof electrical connection.

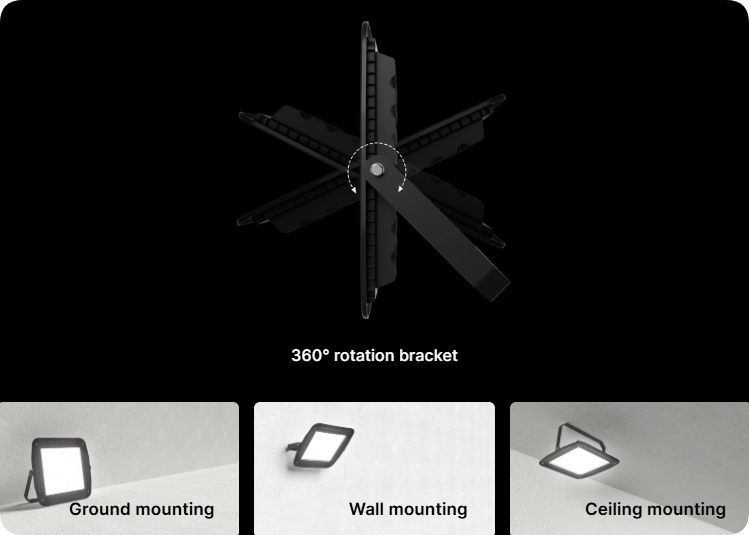

360° Full-Circle Multi-Surface Mounting
The heavy-duty steel U-bracket rotates smoothly across a complete 360° circle, allowing unconstrained forward, downward, and upward architectural aiming across diverse structural mountings.
- Wall Mounting: Ideal for building perimeters, commercial facades, and loading docks.
- Ground Mounting: Perfect for architectural monuments, billboards, and landscape uplighting.
- Ceiling Mounting: Suitable for canopies, covered sports halls, and warehouse eaves.

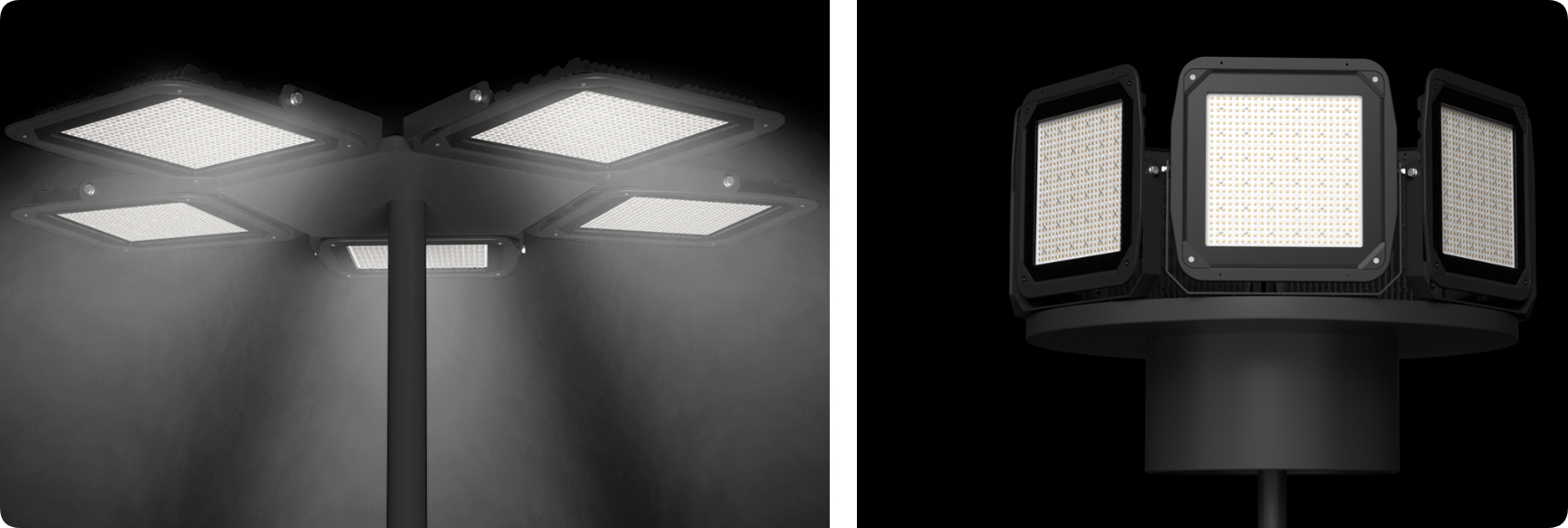

High-Mast Platform Cluster Integration
Engineered for multi-luminaire cluster mounting on standard 10m to 25m sports poles and high-mast crossarms, delivering high-density uniform field illuminance across municipal athletic grounds, parking complexes, and commercial plazas.
- Compact, lightweight chassis allows high-density pole cluster mounting.
- Aerodynamic square profile minimizes wind load on high-mast lighting towers.
- Backed by a reliable 3-year factory warranty.
Recommended DOB Applications
Ultra-slim DOB photometric configurations engineered for sports fields, commercial facades, parking lots, and industrial canopies.
Sports Fields & Courts
High-power 200W–400W configurations delivering uniform, high-contrast lux for athletic soccer fields and community sports courts.
Commercial Facades & Signs
Wide 120° beam spread highlighting large outdoor advertising boards, commercial building facades, and entrance portals.
Parking Lots & Perimeters
Durable IP66/IK08 die-cast chassis delivering reliable dusk-to-dawn perimeter security illumination without driver maintenance.
Canopies & Covered Eaves
360° bracket flexibility allowing downward projection under gas station canopies, warehouse eaves, and covered sports halls.
Need DOB Floodlight Dialux Simulations, IES Files, or Project Quotations?
Provide your area dimensions, mounting height, and target lux level. Our engineering team delivers full photometric simulations and pricing within 24 hours.
