Classic Architectural Commercial Outdoor LED Wall Pack Light
Dependable commercial exterior luminaire engineered for building facades, warehouse loading entries, school campuses, parking corridors, and emergency egress routes. Features an ADC12 die-cast aluminum housing with an upper anti-glare eyelid visor, dual optical engine choices (high-density SMD array or high-intensity COB delivering over 130 lm/W across three housing sizes), dusk-to-dawn photocell support, optional 90-minute emergency battery backup, and IP65/IK08 weatherproofing.
Engineering & Optical Advantages
Dual SMD/COB light engine versatility, anti-glare eyelid visor geometry, rear convective thermal management, and three scalable housing formats.

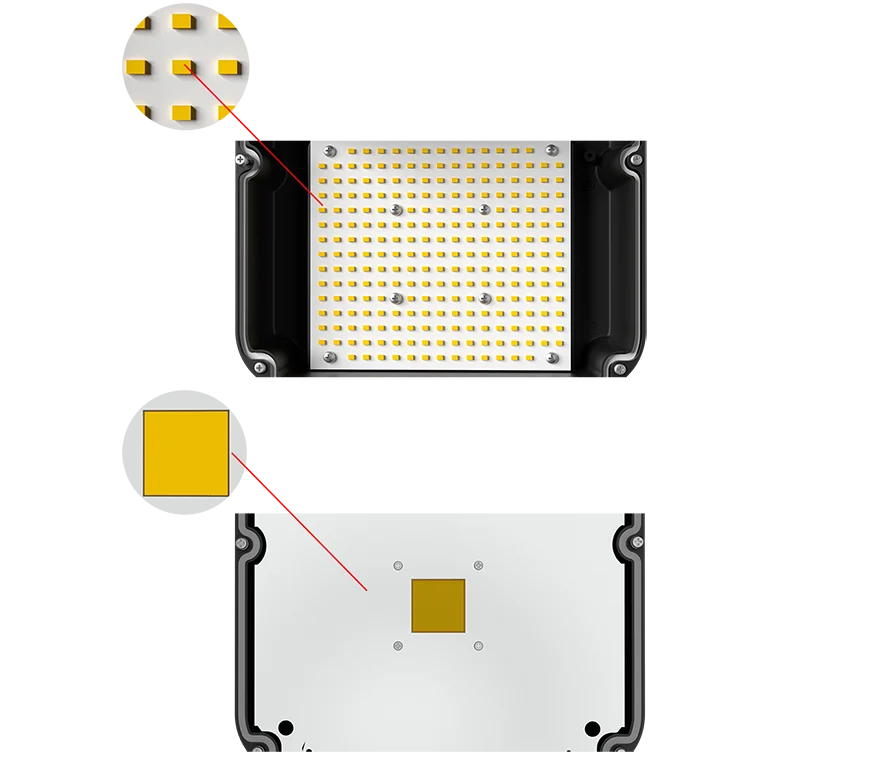

Dual Optical Engine Choices: SMD Matrix & High-Lumen COB
Provides tailored photometric solutions to meet varied exterior lighting requirements: high-density multi-chip SMD arrays for broad, smooth area flooding (≥130 lm/W), or high-lumen center COB LED engines for intense, punchy architectural wall washing.
- High color rendering index (CRI > 80) for vibrant architectural wall washing and CCTV clarity.
- Available in 3000K warm white, 4000K natural white, and 5000K/6500K daylight.
- High-purity aluminum core PCB ensuring fast thermal transfer away from LED junctions.

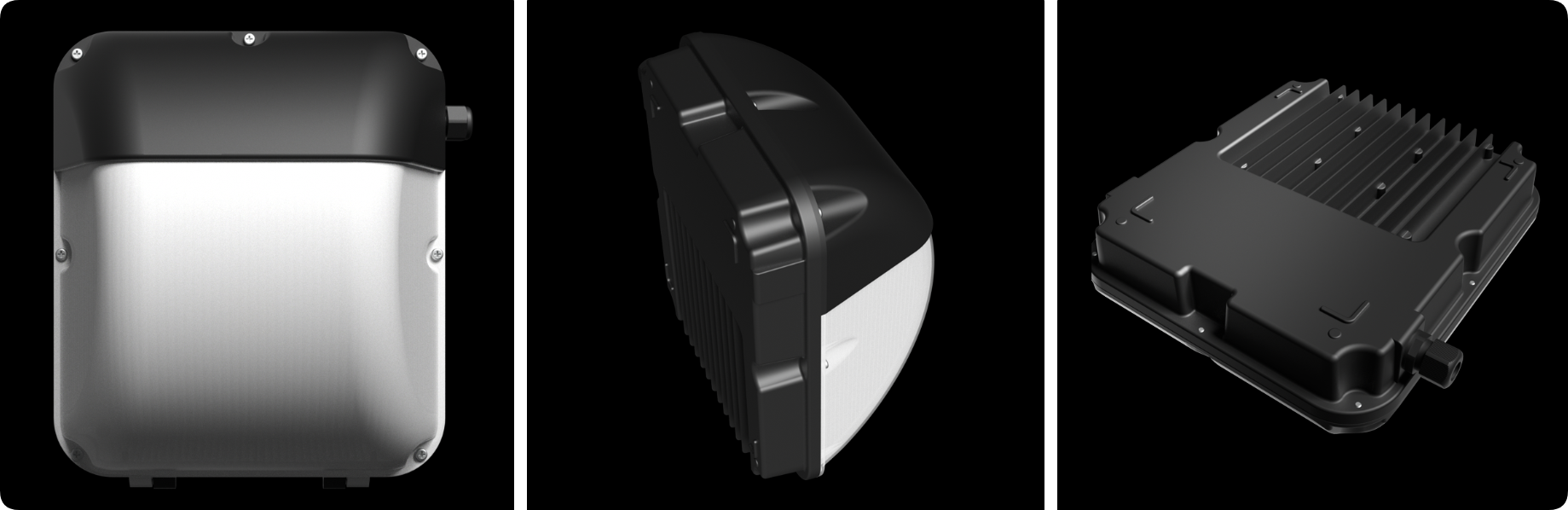

Die-Cast Aluminum Body & 3-View Construction
Constructed with high-pressure ADC12 die-cast aluminum featuring an upper anti-glare eyelid visor and dense vertical cooling fins along the rear housing. Channels heat upward via natural convection while maintaining structural strength.
- Multi-stage architectural powder coating providing C5-grade marine anti-corrosion protection.
- Continuous perimeter silicone gasket ensuring watertight IP65 ingress protection against driving rain.
- Built-in 10kV surge protection device (SPD) safeguarding internal LED driver and electronics.
Three Scalable Commercial Housing Configurations
The PE-2060 series provides three calibrated enclosure configurations matching low-level residential pathways and expansive commercial facility perimeters:
- 10W / 20W SMD Chassis: Compact, low-power model ideal for 2.5m–3.5m residential walkways, doorways, and apartment balconies.
- 30W / 40W SMD High-Flux Chassis: High-output wide flood format for 3.5m–5.5m warehouse loading bays and commercial building perimeters.
- 30W / 40W COB Punchy-Beam Chassis: Center COB format engineered for long-throw facade wall washing and architectural accentuation.
Architectural Side Profile & Anti-Glare Visor
The curved upper visor hood blocks upward stray light to reduce sky glow, directing luminous flux smoothly forward and downward. The high-impact frosted polycarbonate diffuser dome eliminates LED diode pixelation and direct glare (UGR < 19).
- Impact-resistant UV-stabilized polycarbonate diffuser preventing yellowing over time.
- Smooth, arched profile prevents rain pooling and dust buildup on top of the luminaire.
- Operating temperature rating from -30°C to +50°C across diverse climatic zones.

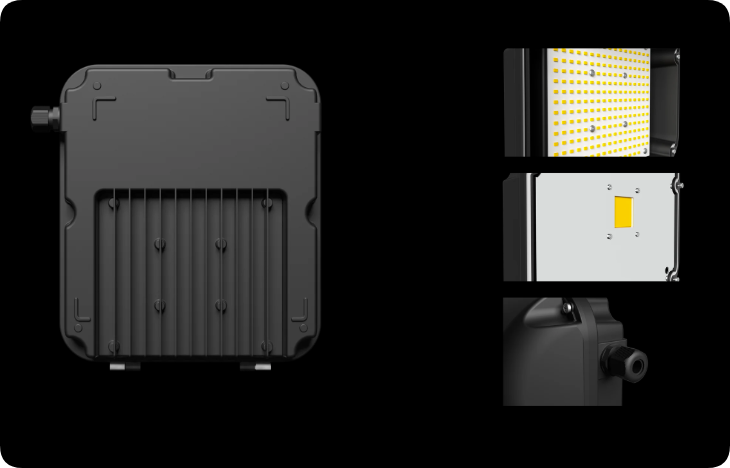

Detachable Baseplate, Cable Gland & Emergency Readiness
Features standard rear junction box mounting knockouts paired with a factory-sealed side PG waterproof cable gland for surface conduit wiring. The internal compartment accommodates an optional 90-minute emergency battery pack.
- Threaded sensor knockout supports automatic dusk-to-dawn photocell operation.
- Compatible with standard 0-10V dimming systems.
- Backed by a dependable 5-year commercial factory warranty.
Recommended Commercial & Exterior Applications
Forward-throw architectural photometric distributions engineered for commercial building perimeters, entryways, campuses, and emergency corridors.
Commercial Building Facades
Classic architectural silhouette providing uniform exterior security lighting and accentuating building facade lines.
Logistics Entryways & Docks
Rugged IP65/IK08 die-cast enclosure delivering reliable perimeter safety lighting around loading bays and personnel access doors.
Campus & Apartment Paths
Soft, low-glare frosted light distribution ensuring safe nighttime pedestrian transit without disturbing adjacent residential windows.
Emergency Egress Corridors
Integrated emergency battery backup maintaining continuous pathway illumination during building power grid failure.
Need Commercial Wall Pack Dialux Planning, IES Files, or Project Quotations?
Provide your building elevation drawings, mounting heights, and target lux requirements. Our engineering team delivers complete calculations and pricing within 24 hours.
