Model: PE-6036SL · Garden & Pathway Series

Compact All-In-One Solar Pathway Light

Cost-effective integrated solar street and garden luminaire engineered for community pathways, perimeter fencing, and residential developments. Features high-transmittance optical PC lenses, automatic photocell dusk-to-dawn switching, and durable side-entry arm mounting.

Power Range: 6W / 12W / 18W / 24W
System Efficacy: 150 lm/W
Mounting Interface: Side-Entry Arm (Φ40–50mm)
Protection & Warranty: IP66 · IK08 · 3 Years
Request Factory Quote View Technical Specs
PE-6036SL compact all in one solar street light for garden and pathway

IP66 Waterproof

Sealed housing design protects internal lithium battery and controller against heavy rainfall and moisture ingress.

IK08 Impact Rated

Rugged die-cast aluminum base chassis engineered to resist mechanical vibrations and outdoor impacts.

3 Years Warranty

Standard factory warranty covering LED optical engine, LiFePO4 battery pack, and monocrystalline solar module.

Photocell & Remote Dimming

Automatic ambient light detection for dusk-to-dawn switching with programmable multi-period remote dimming.

Technical Parameter Matrix

Complete specification matrix across standard PE-6036SL power ratings and chassis configurations.

Model Code Rated Power Luminous Flux Solar PV Panel LiFePO4 Battery Autonomy / Charging Recommended Pole
PE-6036SL-6W 6W 900 lm 10V 12W Mono 6.4V 6Ah 2–3 Days / 4–6h Charge 3–4m / Φ40mm
PE-6036SL-12W 12W 1,800 lm 10V 18W Mono 6.4V 12Ah 2–3 Days / 4–6h Charge 3–5m / Φ40–50mm
PE-6036SL-18W 18W 2,700 lm 10V 25W Mono 6.4V 18Ah 2–3 Days / 4–6h Charge 4–6m / Φ50mm
PE-6036SL-24W 24W 3,600 lm 10V 30W Mono 6.4V 24Ah 2–3 Days / 4–6h Charge 5–7m / Φ50–60mm

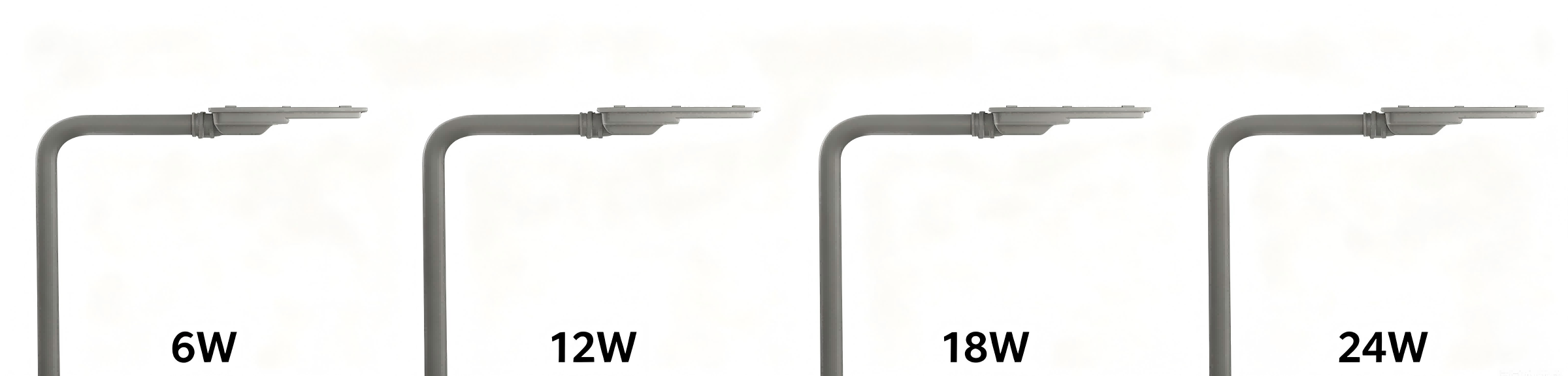

Small solar street light 6W 12W 18W 24W housing sizes comparison
Size 1 · Garden

Micro (6W)

Compact footprint designed for garden pathways, lawn borders, and fence posts.

  • Solar PV: 10V 12W Monocrystalline
  • Battery: 6.4V 6Ah LiFePO4
  • Mounting: 3–4m Pole Height
Size 2 · Pathway

Compact (12W)

Ideal for residential walking trails, park walkways, and courtyard gate posts.

  • Solar PV: 10V 18W Monocrystalline
  • Battery: 6.4V 12Ah LiFePO4
  • Mounting: 3–5m Pole Height
Size 3 · Community

Medium (18W)

Engineered for neighborhood streets, parking lots, and resort perimeters.

  • Solar PV: 10V 25W Monocrystalline
  • Battery: 6.4V 18Ah LiFePO4
  • Mounting: 4–6m Pole Height
Size 4 · Access Road

Standard (24W)

Maximum output configuration for industrial compound perimeter access roads.

  • Solar PV: 10V 30W Monocrystalline
  • Battery: 6.4V 24Ah LiFePO4
  • Mounting: 5–7m Pole Height

Key Structural & Optical Advantages

Reliable off-grid performance engineered into an economical, easy-to-install form factor.

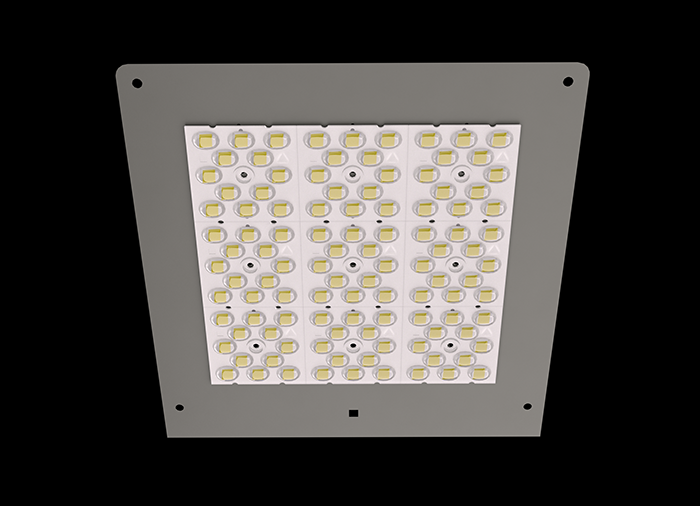

High luminous efficacy 150lm/W SMD LED optical board for solar lamp

150 lm/W High-Efficacy LED Board

Dense multi-chip SMD LED array protected by an optical-grade PC lens plate, providing wide forward light distribution with high glare control.

Side entry horizontal arm mount small solar street light on curved pole

Streamlined Side-Entry Arm Mounting

Direct slip-fit socket designed for curved or straight arm poles (Φ40–50mm). Provides clean structural rigidity and fast zero-wiring installation.

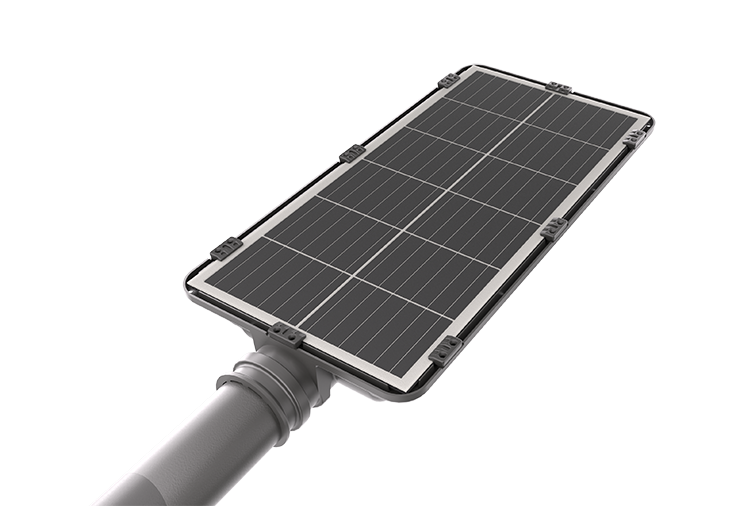

Heavy duty clip fastened monocrystalline silicon solar panel on street light

Clip-Fastened Monocrystalline PV

A-Grade monocrystalline silicon panel with heavy-duty perimeter retaining clips, ensuring tight structural bond and reliable long-term solar harvest.

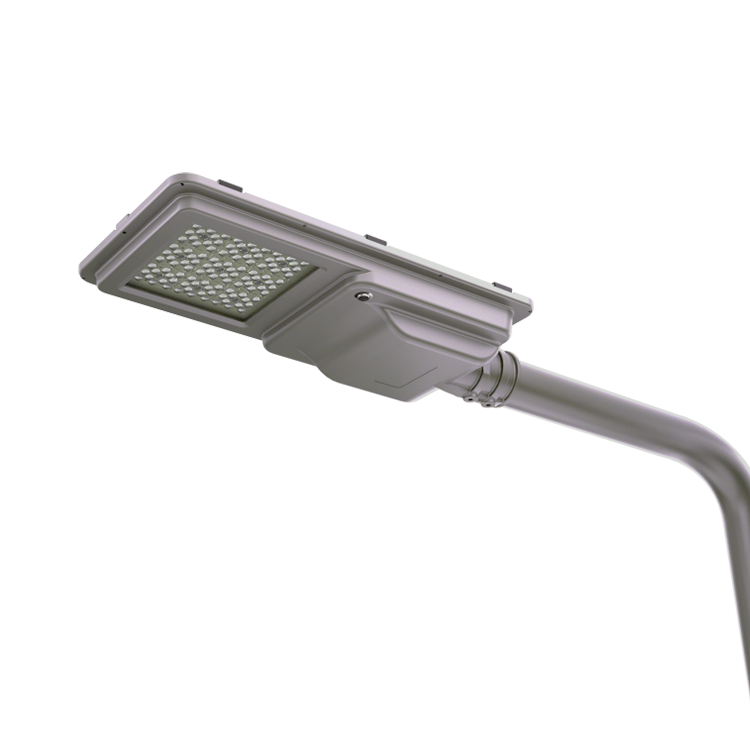

IP66 waterproof die cast aluminum lamp base with automatic dusk to dawn photocell sensor

Dusk-to-Dawn Photocell & Remote Control

Built-in light sensor detects natural ambient lux to automatically turn the luminaire on at sunset and off at dawn, with custom timing profiles set via remote.

Engineering Application Environments

Recommended deployment environments, pole mounting heights, and pedestrian lighting scenarios.

Community Pathways & Parks

Residential neighborhood footpaths, public park walking trails, and botanical gardens.

Pole: 3–4m · 6W/12W
Courtyards & Garden Villas

Private villa driveways, outdoor perimeter walls, and landscape courtyard lighting.

Pole: 3–5m · 12W/18W
Perimeter Security Fencing

Industrial park boundary fences, warehouse borders, and agricultural estates.

Pole: 4–6m · 18W/24W
Rural Village Access Lanes

Narrow rural alleyways, township access connectors, and remote pedestrian walkways.

Pole: 4–6m · 18W/24W

Need IES Files, Dialux Calculations, or Tender Sizing?

Send us your road width, pole height, and target lux levels. Our lighting engineers provide complete Dialux lighting simulations within 24 hours.
