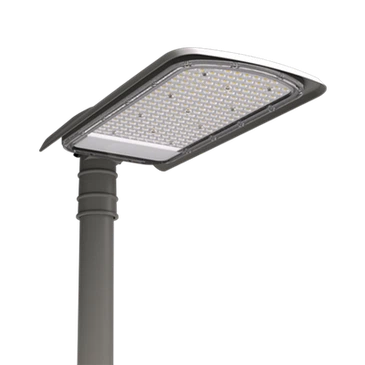

Next-Gen Commercial LED Street Light
High-efficiency commercial roadway luminaire engineered for municipal arterials, logistics parks, and multi-lane avenues. Built with rugged ADC12 die-cast aluminum, Lumileds/Hongli 5050 optical engines delivering 140–160 lm/W, IP66 waterproof rating, and a ±10° precision angle adjustable tenon.
Engineering & Photometric Advantages
Heavy thermal dissipation chassis, precision Type II distribution, and flexible multi-angle pole mounting.
High-Lumen 5050 Optical Engine (140–160 lm/W)
Equipped with high-flux Lumileds / Hongli 5050 LED packages paired with UV-stabilized PC lens arrays, delivering 140–160 lm/W optical efficacy while maintaining low glare and uniform roadway distribution.
- Precision Type II roadway optical distribution curves for uniform coverage.
- Available in 2700K to 6500K CCT with Ra > 70 color rendering.
- High road surface luminance uniformity minimizing dark spots across lanes.
±10° Adjustable Spigot for Pole Mounting
The integrated die-cast tenon spigot features mechanical angle calibration from -10° to +10°, allowing lighting engineers to adjust elevation angles for different lane widths.
- Supports standard Φ60mm horizontal cantilever arm mounting.
- Supports vertical post-top tenon installations without adapter kits.
- Stainless steel locking fasteners for high wind load stability.

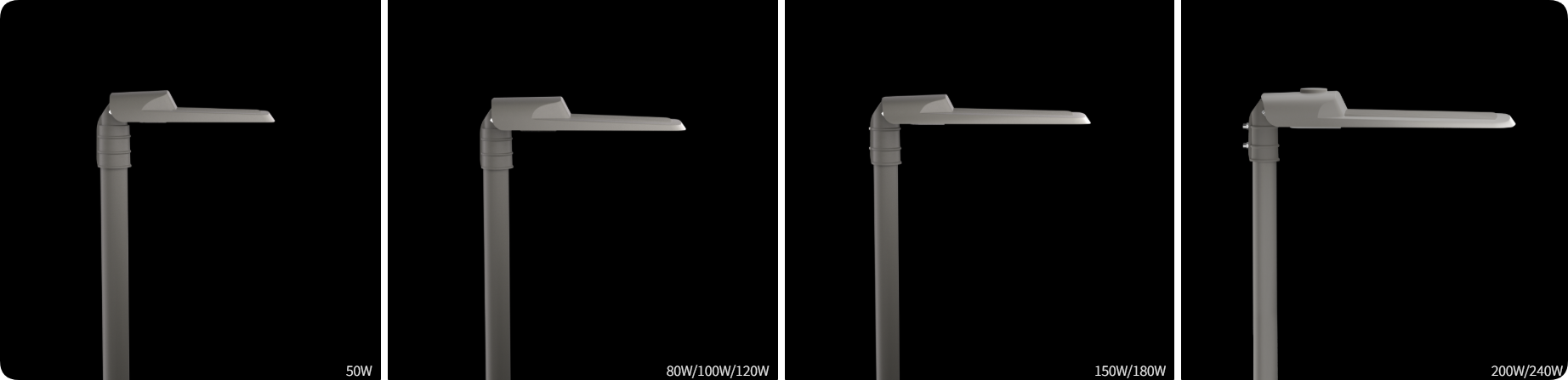

Four Scalable Die-Cast Sizes (50W to 240W)
The PE-6058 series features four aerodynamic ADC12 die-cast enclosure sizes, matching different pole heights and project road hierarchies:
- Size 1 (50W): 455 × 178 × 103 mm for residential & pathways.
- Size 2 (80W / 100W / 120W): 536 × 220 × 104 mm for secondary arterials.
- Size 3 (150W / 180W): 632 × 270 × 102 mm for main city boulevards.
- Size 4 (200W / 240W): 710 × 285 × 115 mm for multi-lane expressways.
Finned Thermal Dissipation & Smart System Ready
Engineered with rear convective thermal fins to accelerate heat conduction away from LED junctions, ensuring long lifespan in high ambient temperatures.
- Compatible with tier-1 SOSEN, Mean Well, MOSO, and Philips drivers.
- Built-in 10kV / 20kV surge protection device (SPD) against grid voltage spikes.
- Operating temperature range: -40°C to +45°C for all climatic zones.
Aerodynamic Wind-Resistant Unibody
Sleek contoured profile minimizes wind resistance coefficient while providing IP66 watertight gasket sealing and IK08 mechanical impact protection.
- ADC12 high-pressure die-cast aluminum with multi-stage outdoor powder coating.
- 0-10V, PWM, and DALI dimming options for smart municipal management.
- Full 5-year commercial factory warranty coverage.
Recommended Road Applications
Photometric deployments engineered for municipal street lighting tenders and industrial infrastructure.
Municipal Arterials
High-wattage (150W–200W) uniform illumination meeting national roadway luminance standards and tender requirements.
Multi-Lane Highways
High-power (200W–240W) configuration delivering high luminous flux across high-speed transit corridors.
Industrial & Logistics Parks
Robust IP66 and IK08 die-cast chassis resisting heavy freight traffic vibration, dust, and humid environments.
Residential & Perimeter
Compact (50W–80W) models providing energy-efficient, soft, and glare-free illumination for community driveways.
Need IES Files, Dialux Simulations, or Custom Driver Configurations?
Provide your road profile, pole spacing, and target lux requirement. Our engineering team delivers full photometric reports and project pricing within 24 hours.
